Rittal 8613010 TS Adaptor Pieces - 1 U for TS VX SE
Part Number: 8613010
Quick Summary
Rittal 8613010 TS Adaptor Pieces are a 1 U sub-section solution for mounting subracks in TS and VX SE enclosures. Users often struggle with precise alignment and installation depth when expanding modular racks. Note: The provided data does not list formal certifications; in this category, buyers typically verify CE, IP, or SIL compliance with their enclosures. This adaptor set simplifies integration by providing a defined installation depth of 482.6 mm (for components) and a 19 in width, enabling repeatable, scalable configurations. By ensuring compatibility with TS and VX SE frames, it supports faster deployments, reduces field errors, and lowers lifecycle costs.
Product Information
Extended Description
8613010 Rittal: TS Adaptor pieces, 482.6 mm (19?), for TS, SE
Article number
SZ 8613.010
Product description

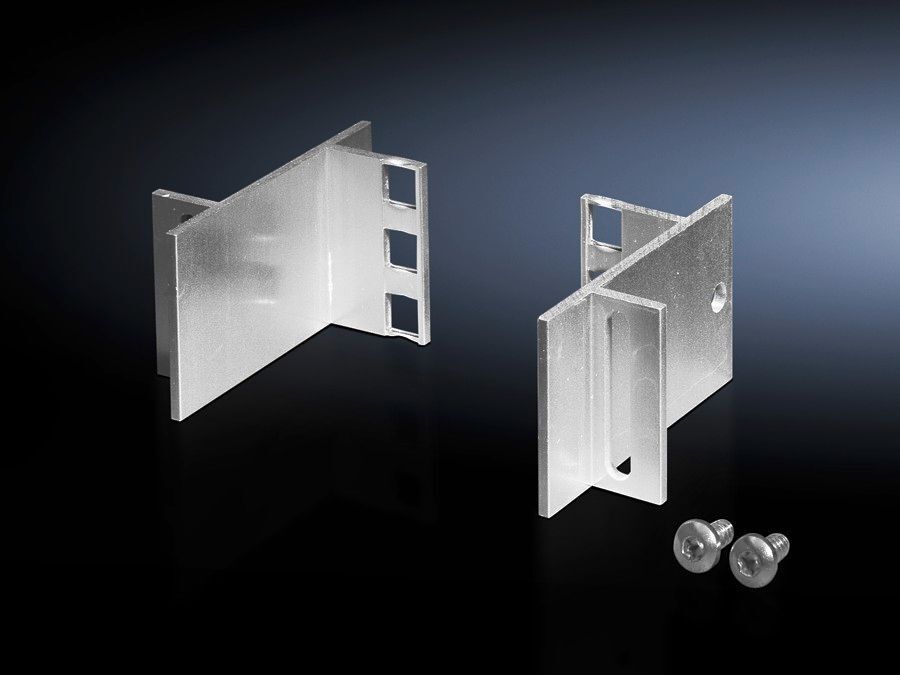

The 1 U sub-section of adaptor sections. For the installation of individual subracks and other equipment.
Supply includes
Assembly parts
Units
1 U
Installation dimensions
Installation depth for components:Â 482.6 mm | Installation width for components:Â 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
Enclosure type:Â TS | VX SE | Width:Â = 600 mm
Packs of
4 pc(s).
Weight/pack
0.248 kg
Customs tariff number
76169990
EAN
4028177212183
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor pieces, 482.6 mm (19?), for TS, SE
Feature: The 1 U sub-section adaptor pieces provide a compact, repeatable mounting anchor. Business Impact: Standardized 1 U height reduces misalignment, speeds up audits, and minimizes stock-keeping units while improving install predictability. Application: Use in TS and VX SE enclosures to add individual subracks and equipment without redesigning the frame. Feature: Defined installation dimensions—482.6 mm depth and 19 in width—offer a precise fit for rack components. Business Impact: This clarity minimizes spacer requirements, streamlining assembly and reducing field corrections in high-mix environments. Application: Fits TS and VX SE frames with 600 mm width for rapid, reliable deployments. Feature: Packs of four pieces per order simplify procurement and inventory management. Business Impact: Consolidated packaging reduces handling, packaging waste, and transaction overhead. Application: Ideal for projects deploying multiple subracks across TS or VX SE frames. Feature: Supply includes assembly parts, eliminating separate hardware sourcing. Business Impact: Shortens lead times and reduces the risk of missing components during rack builds. Application: Supports fast-turn deployments in industrial automation and data-center-like environments. Feature: Enclosure compatibility—designed to fit TS and VX SE enclosures with 600 mm widths. Business Impact: Guarantees reliable mounting geometry and consistent panel alignment. Application: Simplifies upgrade paths in existing automation plants.
Get a Quick Quote for a Rittal 8613010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613010?
Enquire Now
FAQs
To install, identify the TS frame designed for 600 mm width, align the 1 U adaptor pieces with the frame mounting points, and secure using the supplied assembly parts. Ensure the installation depth is 482.6 mm and the components align with the 19 in rack width. Mount subracks and equipment sequentially to maintain repeatable alignment.
SZ 8613.010 is a 1 U adaptor piece for TS and VX SE enclosures. It includes assembly parts, supports 482.6 mm depth and 19 in width, ships in packs of four, and weighs 0.248 kg per pack. EAN is 4028177212183, with tariff number 76169990 and classification codes EC002625 (ETIM 9) and 27189234 (ECLASS 8.0).
Yes. The adaptor pieces are designed for TS and VX SE enclosure types with a 600 mm width. The 482.6 mm installation depth applies when mounting on these frames, ensuring consistent alignment and reliable mounting of subracks and equipment across compatible enclosures.
The product is supplied in packs of four adaptor pieces, with a total weight of 0.248 kg per pack. Each pack includes the adaptor pieces plus the necessary assembly parts, simplifying procurement and installation and reducing the risk of missing hardware during rack builds.
A PDF datasheet is available on the official Rittal site at https://www.rittal.com/pdf-creator/variant/uk-en/8613010. The document provides installation guidelines, dimensions, compatibility notes, and assembly instructions to support field engineers during deployment.
