Rittal 8613030 TS Infill Panels - Adapter-Profile for 1800/2200
Part Number: 8613030
Quick Summary
Rittal 8613030 TS Infill Panels fill gaps between installed 482.6 mm (19") equipment positioned in full enclosure heights. For engineers upgrading cabinets, misalignment and enclosure gaps often complicate retrofits and compromise integrity. The solution aligns with ETIM EC002625 and ECLASS 27189234 classifications, ensuring seamless procurement and system interoperability. By leveraging extruded aluminium sections and the Adapter-Profile fit, you gain faster installation, consistent enclosure integrity, and a reliable path to compliant, scalable cabinet modernization. This translates to reduced field adjustments, lower commissioning risk, and a clearer path to standardized, upgradable enclosures.
Product Information
Extended Description

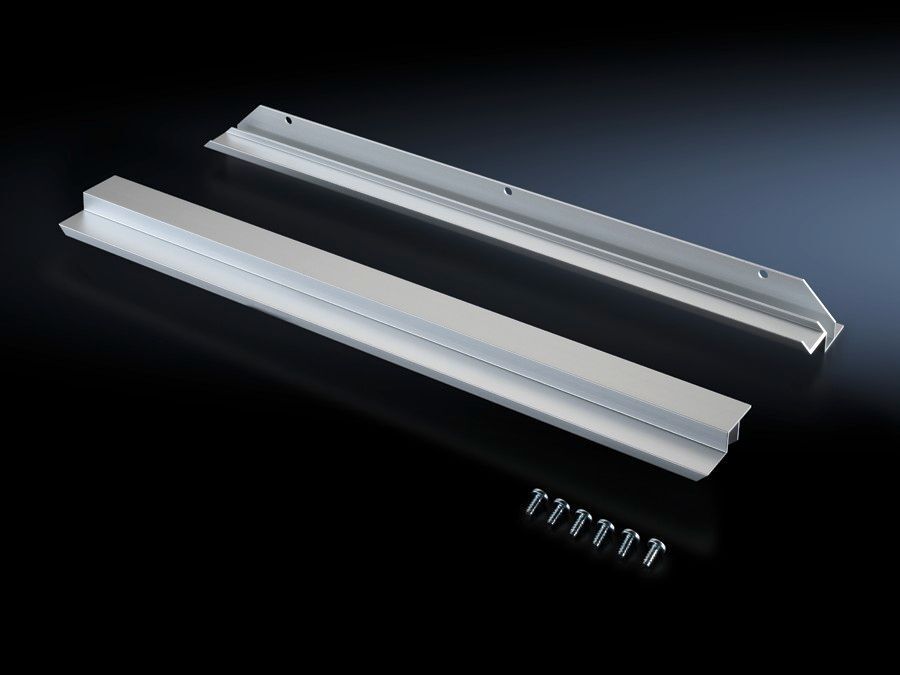

8613030 Rittal: TS Infill panels, 482.6 mm (19"), horizontal for Adapter-Profile, for H: 1800/2200 mm
Article number
TS 8613.030
Product description
To infill between installed 482.6 mm (19") equipment positioned in the full enclosure height and the enclosure clearance height.
Material
Extruded aluminium section
Supply includes
Assembly parts
To fit
Enclosure type:Â TS | Height:Â = 1,800 mm | = 2,200 mm
Packs of
2 pc(s).
Weight/pack
0.572 kg
Customs tariff number
76169990
EAN
4028177213142
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Infill panels, 482.6 mm (19"), horizontal for Adapter-Profile, for H: 1800/2200 mm
Feature → Business Impact → Application: The TS Infill panels use an extruded aluminium section, delivering a rigid yet lightweight filler that maintains enclosure stiffness while minimizing added weight on the door or frame; this reduces handling strain and potential misalignment during retrofit projects. The business impact is improved installation efficiency and predictable fit across TS enclosures, particularly for heights of 1,800 mm and 2,200 mm. In practice, technicians can rapidly install the two-pack infill with the Adapter-Profile system, accelerating mid-life upgrades without disrupting scheduled production. Application-wise, these panels are ideal for 19" equipment infill in TS enclosures, ensuring seamless integration with existing 482.6 mm (19") equipment layouts; this supports modularity and future expandability. Feature → Compliance assurance → The supply includes assembly parts and uses standard TS enclosure interfaces, reducing variation in field assemblies and improving traceability during audits. Application: industrial control rooms, manufacturing lines, and data-centre style rack installations. Feature → Installation efficiency → By providing standardized parts and clear fit requirements, maintenance teams achieve consistent results and minimized rework across multi-site deployments. Application: site consolidation projects, retrofits, and capacity upgrades. Feature → Cost optimization → The two-pack configuration optimizes inventory and shipping, lowering handling costs and ensuring ready-to-use components for rapid deployment in the field. Application: procurement and logistics planning, especially where time-to-restore operations is critical.
Get a Quick Quote for a Rittal 8613030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613030?
Enquire Now
FAQs
The TS 8613.030 infill panels are designed for TS enclosure types and suit heights of 1800 mm or 2200 mm. They come as a 2-pack with assembly parts and use the Adapter-Profile system to ensure a secure, repeatable fit between existing 19" equipment and enclosure flush heights. Confirm your enclosure height and 482.6 mm (19") equipment spacing before ordering.
Key specs include 482.6 mm (19") panel width, extruded aluminium material, supply includes assembly parts, packed as 2 pieces per order, weight per pack 0.572 kg, and compatibility with enclosure heights 1800 mm and 2200 mm. The article number is TS 8613.030 and EAN is 4028177213142 for easy procurement.
Yes. The TS infill panels are identified with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, supporting consistent data exchange in ERP and purchasing systems and enabling accurate supplier comparisons across multiple sites.
The extruded aluminium infill panels provide a rigid, lightweight gap filler that preserves enclosure stiffness while accommodating 19" equipment spacing. Their compatibility with Adapter-Profile simplifies mounting, reduces field adjustments, and minimizes retrofit lead times in high-density cabinets where space is constrained.
Using the 8613030 panels delivers faster retrofit completion, standardized fittings across sites, and improved enclosure integrity. The 2-pack design reduces stocking complexity, while precise fitment minimizes commissioning risk and potential misalignment, ultimately lowering total cost of ownership during and after upgrades.
