Rittal 8613040 TS Infill Panels - EC002625
Part Number: 8613040
Quick Summary
Rittal 8613040 TS Infill Panels fill gaps between 19” equipment and enclosure clearance. Relying on ad hoc spacers can compromise sealing, airflow, and EMI; these panels deliver a precise fit. Key references include ETIM EC002625 and ECLASS 27189234 to ensure interoperability; no SIL, CE, or IP ratings are listed in this data. Designed for TS enclosure systems, they support 482.6 mm (19”) equipment and are compatible with enclosure heights of 1600 or 2000 mm, delivering a clean, compliant retrofit. This translates to streamlined installation, reduced field fabrication, and predictable procurement for panel builders and integrators.
Product Information
Extended Description

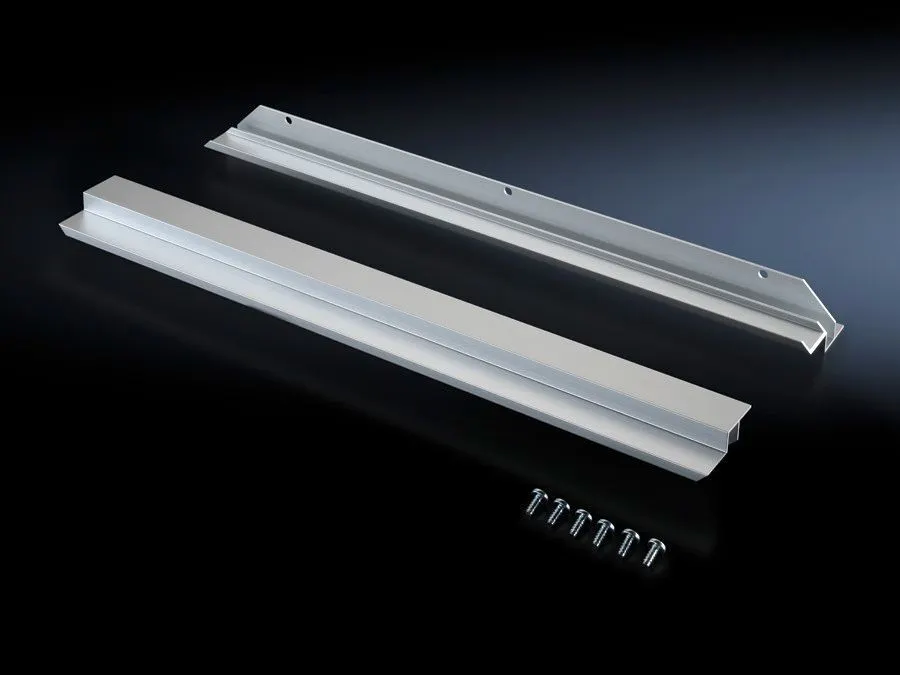

8613040 Rittal: TS Infill panels, 482.6 mm (19"), horizontal for Adapter-Profile, for H: 1600/2000 mm
Article number
TS 8613.040
Product description
To infill between installed 482.6 mm (19") equipment positioned in the full enclosure height and the enclosure clearance height.
Material
Extruded aluminium section
Supply includes
Assembly parts
To fit
Enclosure type: TS | Height: = 1,600 mm | = 2,000 mm
Packs of
2 pc(s).
Weight/pack
0.72 kg
Customs tariff number
76169990
EAN
4028177213159
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Infill panels, 482.6 mm (19"), horizontal for Adapter-Profile, for H: 1600/2000 mm
Feature: Extruded aluminium infill panels, 482.6 mm (19”), horizontal for Adapter-Profile. Business Impact: Lightweight, rigid panels resist corrosion and deformations while simplifying on-site handling. Application: Ideal for TS enclosures with Adapter-Profile access and 482.6 mm equipment gaps. Feature: Packs of 2 with assembly parts. Business Impact: Reduces downtime and stock-keeping while speeding installation with pre-supplied hardware. Application: Fits standard 2-pack kits for rapid retrofit in 1600/2000 mm TS heights. Feature: To fit TS enclosure type with height 1600 mm or 2000 mm. Business Impact: Ensures a precise, compliant fill, preserving enclosure integrity and airflow. Application: Used during mid-height infill to maintain enclosure performance. Feature: Material and finish. Business Impact: Extruded aluminium offers good strength-to-weight, corrosion resistance, and long-term durability in industrial environments. Application: Suitable for factory floors and harsh environments where enclosure longevity matters. Feature: Supply includes assembly parts. Business Impact: Eliminates need for separate hardware sourcing, reduces project lead times, and minimizes installation errors. Application: Engineers can plan installs with confidence for TS 1600/2000 mm cabinets. Industry-specific insight: Infill panels like these are essential for maintaining EMC boundaries and mechanical integrity when adding or relocating equipment within TS enclosures, helping maintain consistent temperatures and airflow and avoiding gaps that could collect dust or compromise sealing.
Get a Quick Quote for a Rittal 8613040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613040?
Enquire Now
FAQs
The TS 8613.040 infill panels are designed to fit TS enclosure types with a 1600 mm or 2000 mm height and 482.6 mm (19") equipment spacing, using the Adapter-Profile. They ship as a 2-pack with assembly parts to streamline on-site installation and avoid custom fabrication.
Key specs include extruded aluminium construction, 482.6 mm (19") horizontal infill, packs of 2 with assembly parts, and a weight of 0.72 kg per pack. They are compatible with TS enclosures of 1600 mm or 2000 mm height, aligning with ETIM EC002625 and ECLASS 27189234 references.
Yes. They are specifically designed to infill between installed 482.6 mm (19") equipment and enclosure clearance height in TS cabinets, ensuring a uniform interior and preserving thermal and EMI performance without field-cut pieces.
The data references ETIM 9 EC002625 and ECLASS 8.0 27189234 for cataloging and interoperability. Sil/CE/IP ratings are not listed in this dataset, so verify your compliance requirements with your internal standards and local regulations for your application.
Using a matched 2-pack with assembly parts simplifies procurement and reduces on-site fabrication, cutting installation time. The extruded aluminium construction offers durability, aiding long-term maintenance by minimizing panel replacements and ensuring consistent enclosure performance.
