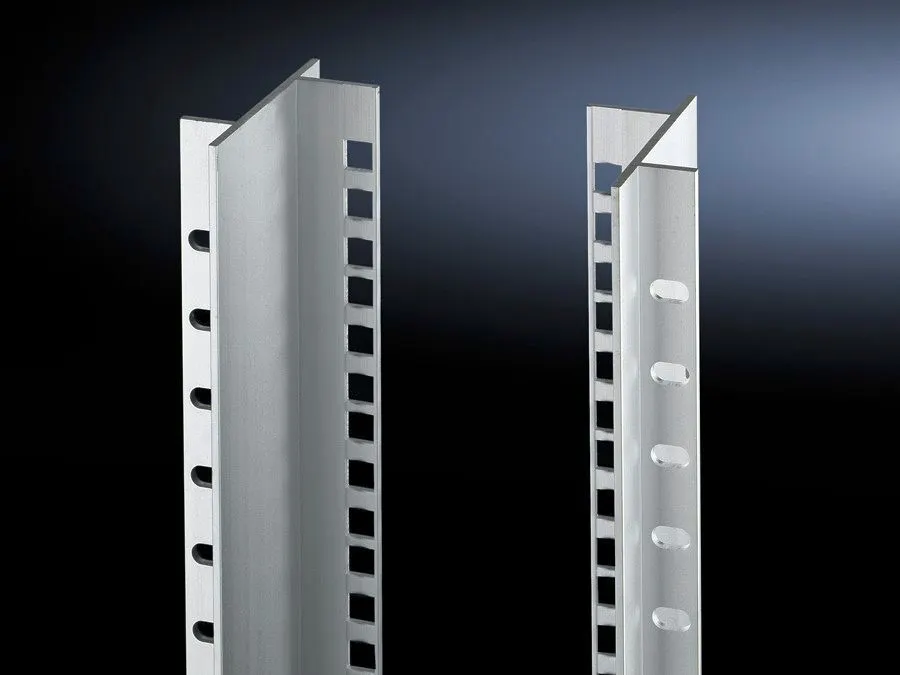

Rittal 8613060 TS Adaptor Sections - 33U, 482.6mm (19 in)
Part Number: 8613060
Quick Summary
Rittal 8613060 adaptor sections are designed for installing subracks and other components in TS enclosures. They can be easily shortened for partial assemblies, reducing waste and rework when configurations change. The data references ETIM 9 EC002625 and ECLASS 8.0 27189234 as standard classifications; for critical safety or environmental compliance, consult official CE or IP documentation for your exact requirements. These adaptor sections enable scalable TS enclosure layouts while supporting consistent supply chains, straightforward procurement, and predictable installation timelines. With extruded aluminium construction and 33 U capacity, they deliver a robust, reusable solution that minimizes material waste and accelerates a wide range of equipment deployments.
Product Information
Extended Description
8613060 Rittal: TS Adaptor sections, 482.6 mm (19'') for TS, for H: 1600 mm, 33 HE
Article number
TS 8613.060
Product description
For the installation of subracks and other equipment. Adaptor sections are easily shortened for partial assemblies.
Material
Extruded aluminium section
Supply includes
Assembly parts
Units
33 U
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
Enclosure type: TS | Width: = 600 mm | Height: = 1,600 mm
Packs of
4 pc(s).
Weight/pack
5.872 kg
Customs tariff number
76042990
EAN
4028177212206
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor sections, 482.6 mm (19'') for TS, for H: 1600 mm, 33 HE
Feature: Extruded aluminium section provides high rigidity with low weight. Benefit: Reduces overall enclosure weight while maintaining structural integrity, improving handling and mounting reliability. Application: Ideal for TS subrack installations in both portable and fixed systems, especially where weight reduction matters for maintenance and transport efficiency. Feature: Installation depth of 482.6 mm (19 in) and width alignment for TS frames. Benefit: Ensures precise component fit and repeatable mounting across multiple enclosures, shortening setup time and reducing error rates. Application: Used when configuring TS frames in 600 mm wide enclosures for consistent 33U stacking. Feature: Packs of four with a weight per pack of 5.872 kg. Benefit: Streamlines procurement and logistics, enabling bulk stocking and predictable handling in warehouse operations. Application: Supports batch purchasing for large projects with standard TS frame configurations. Feature: Partial-assembly capability by easily shortening adaptor sections. Benefit: Minimizes waste and enables rapid on-site customization without machining. Application: Crucial for evolving rack configurations in data centers or industrial automation installations where future changes are anticipated. Feature: Compatibility with TS enclosures and 600 mm wide frames (H 1600 mm, 33 HE). Benefit: Delivers a plug‑and‑play fit with minimal rework, reducing commissioning time and supplier risk. Application: Suitable for mid‑to‑large scale TS rack deployments in control rooms and manufacturing plants.
Get a Quick Quote for a Rittal 8613060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613060?
Enquire Now
FAQs
Begin by confirming the TS frame width is 600 mm and height 1600 mm. Use the 482.6 mm depth adaptor sections to position subracks, ensuring the 33U footprint aligns with the enclosure's mounting rails. Shorten sections as needed for partial assemblies, then secure with assembly parts included in the packs of 4. This approach minimizes waste and speeds on-site configuration.
Each pack contains four adaptor sections with a total weight of 5.872 kg per pack. The installation depth is 482.6 mm (19 in) and the sections are sized to fit 33U TS configurations within 600 mm wide enclosures. This standardization supports efficient procurement and bulk stocking for ongoing projects.
Yes. The adaptor sections are specified for TS enclosures with a 1600 mm height and 33U height, aligning to 600 mm wide frames. The 482.6 mm depth and 19 in width ensure a consistent fit for subracks and equipment within TS racks, enabling modular, scalable installations.
The data references ETIM 9 EC002625 and ECLASS 8.0 27189234 as classification standards. For critical certifications like CE or IP, please consult official Rittal documentation to confirm exact compliance for your application and regulatory requirements.
Adaptor sections enable partial assembly, reducing material waste and rework, which lowers project waste and labor costs. The modular design supports fast reconfiguration if rack layouts evolve, shortening downtime during upgrades and improving total cost of ownership for TS enclosure systems.
