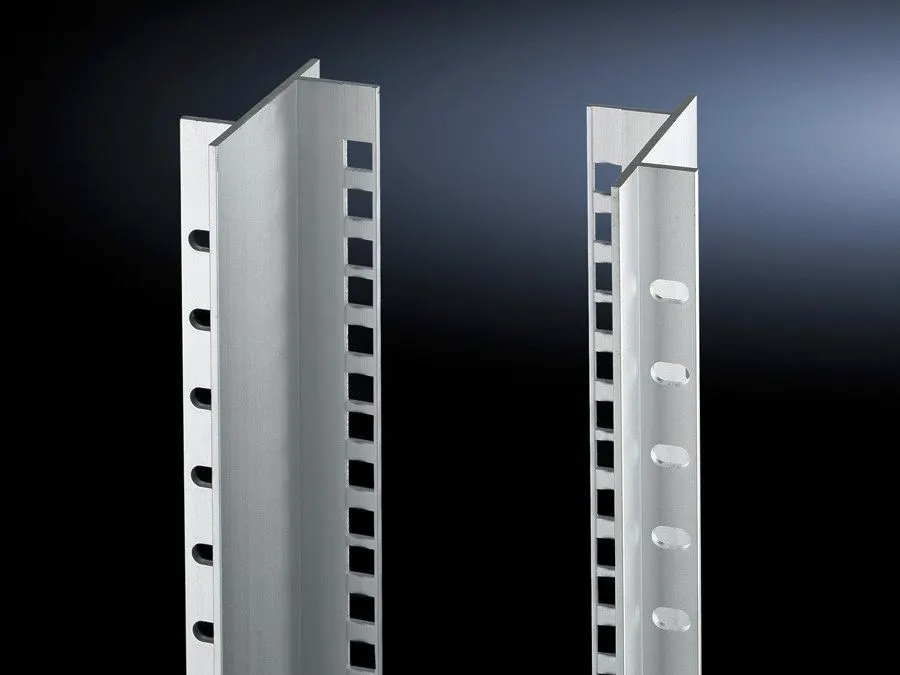

Rittal 8613080 TS Adaptor Sections - 38U, 19''
Part Number: 8613080
Quick Summary
Rittal 8613080 TS Adaptor Sections enable compact mounting of subracks and components inside TS 19'' enclosures. Users often face wasted space and the challenge of trimming assemblies without compromising frame rigidity. Note: CE, IP, and SIL certifications are not specified in this dataset; however, the item is classified under ETIM EC002625 and ECLASS 27189234 to support digital catalogs and procurement workflows. With extruded aluminium sections and a defined installation depth of 482.6 mm and 19'' width, these adaptors accelerate builds while preserving enclosure integrity. That combination translates to lower field rework costs and improved predictability for panel builders, OEMs, and integrators seeking reliable, scalable TS mounting solutions.
Product Information
Extended Description
8613080 Rittal: TS Adaptor sections, 482.6 mm (19'') for TS, for H: 1800 mm, 38 HE
Article number
TS 8613.080
Product description
For the installation of subracks and other equipment. Adaptor sections are easily shortened for partial assemblies.
Material
Extruded aluminium section
Supply includes
Assembly parts
Units
38 U
Installation dimensions
Installation depth for components: 482.6 mm | Installation width for components: 19"
Note
The 482.6 mm (19") measurement applies when mounting on the frame of 600 mm wide enclosures.
To fit
Enclosure type: TS | Width: = 600 mm | Height: = 1,800 mm
Packs of
4 pc(s).
Weight/pack
6.632 kg
Customs tariff number
76042990
EAN
4028177212213
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor sections, 482.6 mm (19'') for TS, for H: 1800 mm, 38 HE
Feature: Extruded aluminium adaptor sections deliver lightweight strength and corrosion resistance. Business Impact: Reduces overall enclosure weight while maintaining rigidity, improving handling during installation and long-term durability in harsh environments. Application: Suitable for mounting subracks and installed components inside TS 19'' frames; aligns with 600 mm wide enclosure formats to support standard rack layouts. Feature: 482.6 mm installation depth and 19'' installation width. Business Impact: Provides a repeatable, standards-based footprint that speeds project planning and reduces custom fabrication. Application: Ideal for data centers and machine-build projects where TS frame compliance and modularity are essential. Feature: Unit size 38 U. Business Impact: Enables precise rack sizing without overbuilding; supports standardized equipment allocation and inventory control. Application: Used to configure full-height TS racks in H=1800 mm enclosures. Feature: Packs of 4 with 6.632 kg per pack. Business Impact: Improves logistics, reduces handling complexity, and simplifies stocking strategies. Application: Helpful for procurement planning and warehouse optimization. Feature: Includes assembly parts. Business Impact: Accelerates field assembly and minimizes sourcing gaps; reduces total install time. Application: Quick-to-assemble adaptor sections for rapid deployment. Feature: Adaptable for partial assemblies. Business Impact: Minimizes material waste and expands customization options for constrained spaces. Application: Enables trimming and tailoring to exact enclosure configurations without redesigns.
Get a Quick Quote for a Rittal 8613080
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613080?
Enquire Now
FAQs
The adaptor sections are designed for TS enclosures with 600 mm width and 1800 mm height, providing a 482.6 mm installation depth and 19'' mounting width. They ship in packs of four and include assembly parts, enabling a straightforward, tool-efficient installation that preserves frame integrity while accommodating partial assemblies.
The product supports 38 U of rack space. Installation dimensions specify 482.6 mm depth and 19'' width for components mounted on the TS frame, with the 38U height designed to fit H = 1800 mm enclosures typical of TS systems, ensuring standardization across installations.
Yes. The adaptor sections are intended for TS enclosures that are 600 mm wide and 1800 mm tall, with a 482.6 mm installation depth and 19'' mounting width, enabling seamless integration with common TS rack configurations.
Benefits include fast deployment due to included assembly parts, reduced waste from easily shortened sections for partial assemblies, and improved logistics with packs of four at a consistent weight of 6.632 kg per pack. This leads to shorter project cycles and more predictable procurement.
The product is classified under ETIM 9 EC002625 and ECLASS 8.0 27189234, with a customs tariff number of 76042990 and an EAN of 4028177212213. While CE/IP/SIL certifications aren’t listed in the data, these classifications support cataloging and import/compliance workflows.
