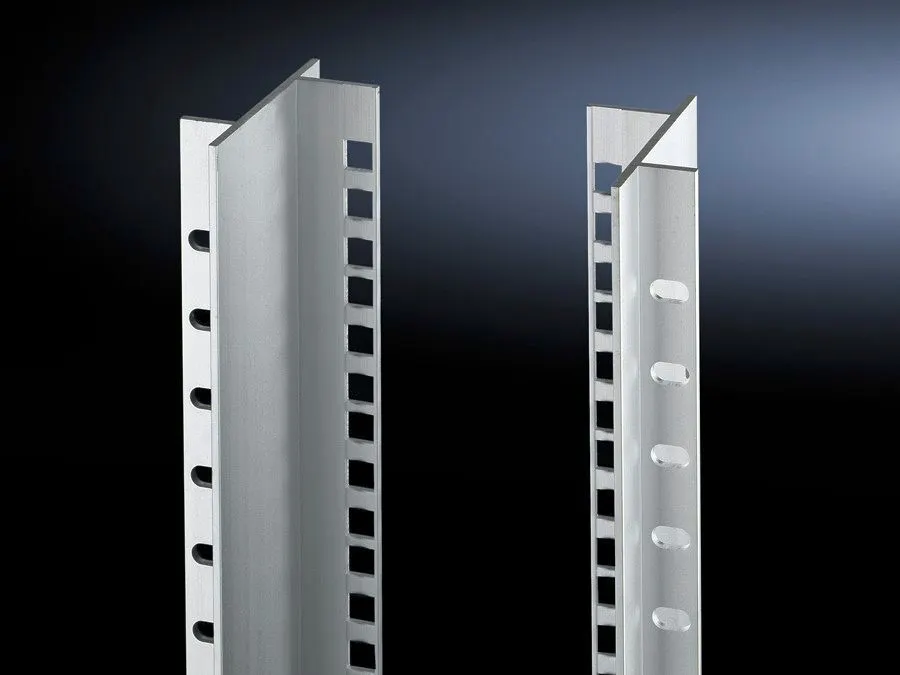

Rittal TS 8613.300 TS Adaptor sections - Extruded aluminium
Part Number: 8613300
Quick Summary
TS Adaptor sections enable precise mounting of TS electronic enclosures for front and rear subrack integration in 19-inch racks up to 2,000 mm tall. When upgrading existing gear, engineers often grapple with depth alignment and rear-mount constraints that slow installations. In the broader industry, considerations like CE compliance, IP ratings, and SIL requirements guide safe operation of rack-mounted systems. The TS 8613.300 adaptor sections integrate seamlessly with TS enclosure families, delivering repeatable installs, simplified cable routing, and scalable 42U configurations. Used in data centers and industrial environments alike, this solution supports modular expansion while keeping installation costs predictable.
Product Information
Extended Description
8613300 Rittal: TS Adaptor sections, 482.6 mm (19?), for TS electronic enlcosure - rear side, for H: 2000 mm
Article number
TS 8613.300
Product description
For installing subracks at the front and back, and for attaching the slide rails TS 8613.150, TS 8613.160 and TS 8613.180. For mounting on the inner mounting level. The outer mounting level may, for example, still be used for cable routing on depth-mounted TS punched sections with mounting flange.
Material
Extruded aluminium section
Supply includes
Assembly parts
Units
42 U
Installation dimensions
Installation depth for components:Â 482.6 mm | Installation width for components:Â 19"
Note
Design similar to adaptor sections, 482.6 mm (19"), but asymmetrical height, suitable for TS electronic enclosure.
To fit
Enclosure type:Â TS | Height:Â = 2,000 mm
Packs of
2 pc(s).
Weight/pack
4.046 kg
Customs tariff number
76042990
EAN
4028177237247
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor sections, 482.6 mm (19?), for TS electronic enlcosure - rear side, for H: 2000 mm
Feature: Extruded aluminium adaptor sections provide rigid, lightweight mounting hardware that resists deformation under dynamic loads. Business Impact: Ensures reliable rack alignment over the life of the installation, reducing rework and warranty calls. Application: Ideal for front and rear mounting of subracks in TS enclosures where durability and precision matter. Feature: Installation depth of 482.6 mm and 19" width with 42 U capacity. Business Impact: Enables accurate depth budgeting and standardized 19" rack footprint, accelerating design win reviews and on-site setup. Application: Fits TS electronic enclosure systems up to H: 2000 mm, supporting scalable rack builds. Feature: Packs of two with assembly parts included. Business Impact: Streamlines procurement and reduces per-unit shipping costs; lowers total cost of ownership. Application: Quick two-pack installations for mid-to-large TS rack configurations. Feature: Outer mounting level for cable routing. Business Impact: Improves cable management and airflow, reducing installation time and post-install maintenance. Application: Depth-mounted TS punched sections with mounting flange benefit from organized cabling. Feature: Design notes and compatibility. Business Impact: Provides a proven, adapt-ready solution compatible with TS adaptor sections TS 8613.150/TS 8613.160/TS 8613.180, enabling seamless expansion. Application: Used when upgrading to taller TS enclosures with front/back mounting needs.
Get a Quick Quote for a Rittal 8613300
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613300?
Enquire Now
FAQs
TS adaptor sections install on the inner mounting level of a TS enclosure, enabling front and rear subrack mounting. They are designed for a 482.6 mm (19") depth and support 42 U units; the outer level can be used for cable routing. The kit ships as two packs with assembly parts to simplify on-site mounting.
Key specs include extruded aluminium construction, 42 U unit capacity, installation depth of 482.6 mm, installation width of 19 inches, packs of 2, and weight per pack 4.046 kg. EAN is 4028177237247, and the product is identified by article TS 8613.300 with the description focused on rear-side mounting for TS enclosures up to 2000 mm tall.
Yes. The product is designed to fit TS enclosures with a height of 2000 mm, supporting mounting on the inner level and enabling organized cable routing on the outer level when needed.
The outer mounting level may be utilized for cable routing on depth-mounted TS punched sections with mounting flanges, which helps maintain orderly cabling and airflow. This reduces installation time and simplifies future maintenance or upgrades.
TS 8613.300 is supplied as packs of 2, with weight per pack listed as 4.046 kg, totaling approximately 8.092 kg per two-pack shipment. This packaging allows efficient freight and easier site handling.
