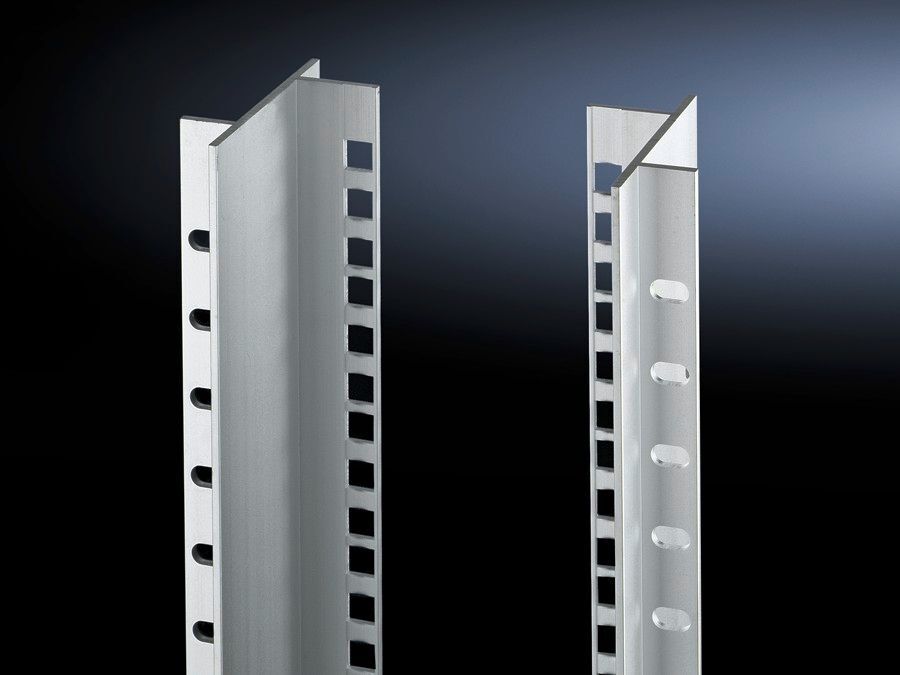

Rittal 8613360 TS Adaptor Sections - 482.6 mm depth
Part Number: 8613360
Quick Summary
Rittal TS adaptor sections enable front and rear subrack mounting in TS enclosures. This solution addresses common install challenges where misaligned rails and inconsistent depths slow projects. It aligns with ETIM EC002625 and ECLASS 27189234 classifications, supporting seamless procurement and interoperability. Made from extruded aluminium for durability and light weight, these sections come in two-pack packs to support 33 U TS configurations and straightforward stocking, helping you scale installations efficiently. The design also facilitates cable routing on the outer mounting level, reducing fixture conflicts during integration and reducing overall project lead times.
Product Information
Extended Description
8613360 Rittal: TS Adaptor sections, 482.6 mm (19?), for TS electronic enlcosure - rear side, for H: 1600 mm
Article number
TS 8613.360
Product description
For installing subracks at the front and back, and for attaching the slide rails TS 8613.150, TS 8613.160 and TS 8613.180. For mounting on the inner mounting level. The outer mounting level may, for example, still be used for cable routing on depth-mounted TS punched sections with mounting flange.
Material
Extruded aluminium section
Supply includes
Assembly parts
Units
33 U
Installation dimensions
Installation depth for components:Â 482.6 mm | Installation width for components:Â 19"
Note
Design similar to adaptor sections, 482.6 mm (19"), but asymmetrical height, suitable for TS electronic enclosure.
To fit
Enclosure type:Â TS | Height:Â = 1,600 mm
Packs of
2 pc(s).
Weight/pack
3.25 kg
Customs tariff number
76042990
EAN
4028177237230
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
TS Adaptor sections, 482.6 mm (19?), for TS electronic enlcosure - rear side, for H: 1600 mm
Feature: Extruded aluminium section provides rigidity with light weight. Business Impact: Easier handling on site and reduced crane or lift requirements during installation, improving safety and productivity. Application: Suitable for 33 U TS configurations and standard 19" mounting rails. Feature: Front and rear mounting capability enables flexible rail placement. Business Impact: Speeds up rack integration and supports both TS 8613.150/160/180 rails, minimizing rework. Application: Ideal for TS electronic enclosure rear side mounting at 1600 mm height. Feature: Inner mounting level compatibility with outer level for cable routing. Business Impact: Improves cable management and airflow, reducing heat buildup and maintenance costs. Application: Use on depth-mounted TS punched sections with mounting flange. Feature: Packaged in two assemblies with assembly parts. Business Impact: Simplifies stocking, reduces assembly steps, and lowers total cost of ownership. Application: Fit for fast deployment in new builds and retrofit projects. Feature: Dual-pack packaging and standard weight per pack (3.25 kg). Business Impact: Streamlines logistics and reduces handling effort on site. Application: Supports project planners in inventory forecasting and on-site workflows. Feature: Design note indicates asymmetrical height for TS electronic enclosure compatibility. Business Impact: Enables precise fit across varied TS configurations, minimizing fit issues. Application: Particularly useful for enclosures requiring adjusted adaptor height during retrofits.
Get a Quick Quote for a Rittal 8613360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8613360?
Enquire Now
FAQs
TS adaptor sections TS 8613.360 are designed for TS electronic enclosures and rear-side mounting, supporting front and back subrack installation. They fit with standard 19" rails and are supplied as two assemblies with assembly parts, making alignment straightforward and repeatable during upgrades or retrofits.
The adaptor sections support 33 U of rack space with an installation depth of 482.6 mm and a 19-inch mounting width. They are manufactured from extruded aluminium and ship in packs of two, with a weight of 3.25 kg per pack, enabling predictable handling and installation planning.
Yes, the adaptor is designed for TS enclosures up to 1,600 mm in height and supports both front and rear subrack mounting. It also accommodates outer mounting level cable routing, which is beneficial for tidy data-center cable management and scalable rack configurations.
This adaptor aligns with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications, ensuring interoperability with common procurement platforms and consistent data exchange across equipment catalogs.
Using these adaptor sections reduces installation time, improves rail alignment accuracy, and supports flexible cable routing. Packaged in two assemblies, they simplify stock management and enable faster readiness for upgrades or new builds in TS enclosure environments.
