Rittal 8614050 TS Partial mounting plate - 900x400 mm
Part Number: 8614050
Quick Summary
TS Partial mounting plate enables universal interior mounting inside TS and VX SE enclosures. This accessory reduces field fabrication time by providing ready-made mounting levels that accommodate components and cable routing quickly. The specification does not list CE, SIL, or IP ratings, so verify your project’s compliance requirements when integrating with enclosure systems. By pairing the plate with punched sections, mounting flanges and support strips, you gain scalable interior layouts and faster turnarounds for upgrades or retrofits. The 900x400 mm footprint fits common TS interior sizes, while the 2.5 mm zinc-plated sheet steel provides durable service in harsh environments. For procurement, the single-pack content simplifies ordering and inventory.
Product Information
Extended Description

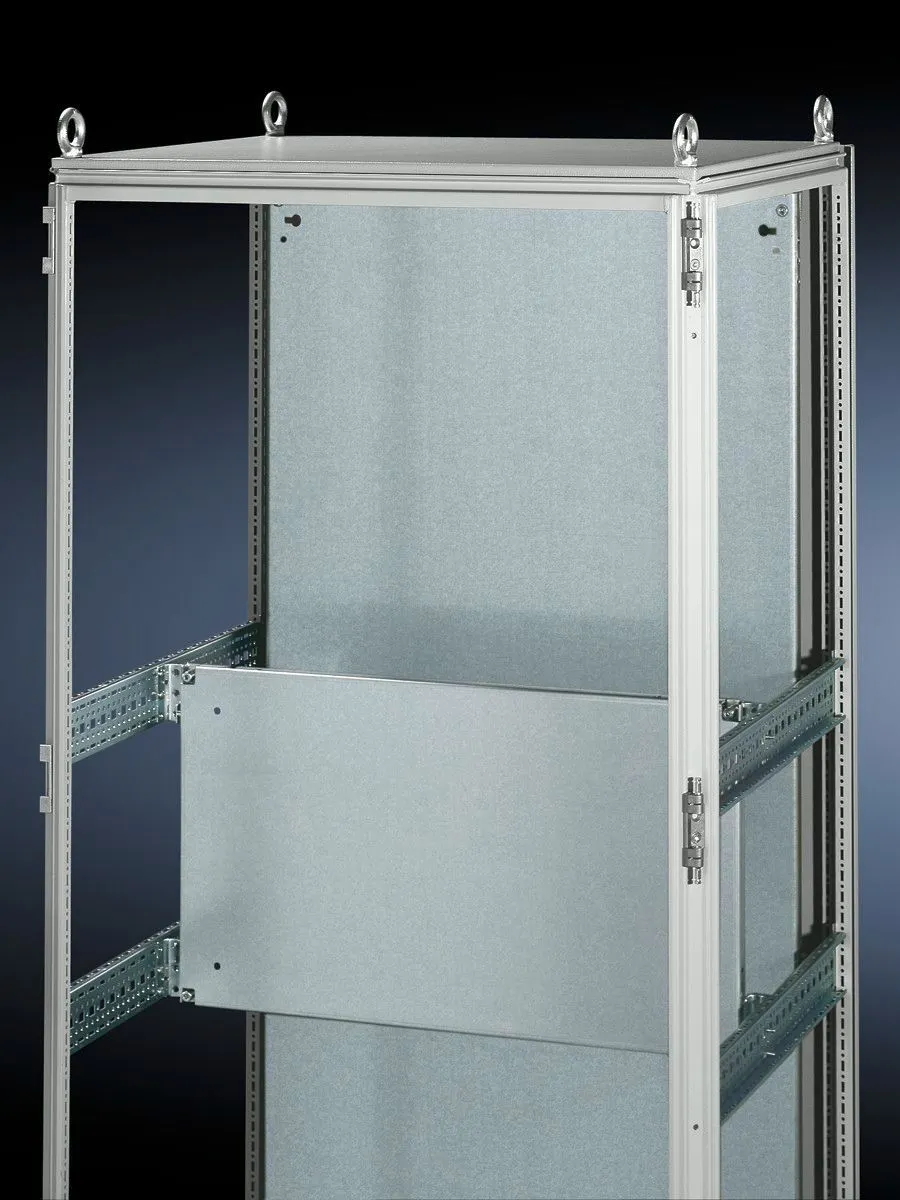

8614050 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 900x400 mm
Article number
TS 8614.050
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note
Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 900 mm | Height: 400 mm
To fit
Enclosure type: TS | VX SE | Width: = 1,000 mm | Depth: = 500 mm
Packs of
1 pc(s).
Weight/pack
8.85 kg
Customs tariff number
94039910
EAN
4028177212268
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 900x400 mm
Feature: Sheet steel construction is 2.5 mm thick with a zinc-plated surface. Business impact: This combination delivers high rigidity, long service life, and corrosion resistance in demanding environments, minimizing unplanned maintenance. Application: Ideal for universal interior mounting within TS, SE, and W/DH enclosures, providing robust mounting levels that stay aligned over time. Feature: Dimensions are 900 mm wide by 400 mm high. Business impact: Predictable fit reduces risk of misalignment and eliminates the need for costly adapters, accelerating project timelines. Application: Fits standard TS interiors and aligns with enclosure widths of 1,000 mm and depths of 500 mm for scalable layouts. Feature: Supplied with assembly parts. Business impact: Streamlines installation by delivering all necessary pieces in one package, cutting field downtime and inventory checks. Application: Particularly useful for quick retrofits or upgrades in existing TS or VX SE systems. Feature: Partial mounting plates fasten directly to vertical enclosure sections via the inner mounting level. Business impact: Enables quick replacement of defective assemblies and straightforward expansion without disassembling the entire enclosure. Application: Works with TS punched sections with mounting flanges (17 x 73 mm) and TS support strips for the inner mounting level. Feature: Compatibility with punched sections and mounting rails for interior expansion. Business impact: Supports flexible interior layouts with additional mounting levels, improving cable management and component organization. Application: Suitable for interior installations across TS, SE, and W/DH lines, including W/DH modules. Feature: Pack specification and weight: 1 piece per pack; weight 8.85 kg. Business impact: Aids procurement planning, shipping cost estimation, and warehouse stocking with predictable units. Application: Ideal for single-quantity orders and consistent replenishment in industrial projects.
Get a Quick Quote for a Rittal 8614050
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8614050?
Enquire Now
FAQs
The plate is designed for TS and VX SE enclosures with a width of 1,000 mm and a depth of 500 mm. It provides a 900x400 mm mounting area and is intended to work with TS punched sections, mounting flanges (17 x 73 mm), and TS support strips for the inner mounting level. Pack: 1 pc.
The plate uses sheet steel with a thickness of 2.5 mm and a zinc-plated surface finish. This combination delivers robust mechanical strength and corrosion resistance suitable for harsh industrial environments, helping extend service life and reduce maintenance intervals.
Yes. The partial mounting plate is fastened directly onto vertical enclosure sections via the inner mounting level, allowing quick installation and easy replacement of assemblies. It supports upgrades using TS punched sections with mounting flanges and TS support strips for the inner level, minimizing disruption.
Assembly parts are included with the plate, streamlining on-site installation and reducing the risk of missing hardware. This minimizes field downtime and accelerates commissioning, particularly during retrofits or expansions.
Each order is typically a single-pack unit weighing 8.85 kg, which simplifies budgeting and logistics. The 1 pc pack standardizes stocking for procurement and reduces the complexity of inventory planning on large projects.
