Rittal 8614100 Hinge attachment for mounting plates TS
Part Number: 8614100
Quick Summary
Rittal 8614100 hinge attachment for partial mounting plates securely supports side-panel mounting in TS enclosure systems. Engineers often struggle with misaligned hinges and inconsistent mounting depths during installation. Compliance considerations are critical in enclosure accessories; verify CE conformity, IP protection, and SIL readiness with official certification documentation. This component complements TS mounting kits and small swing frames, reducing field adjustments and accelerating project timelines. By standardizing the mounting interface, it supports procurement workflows and BOM accuracy, translating to lower total cost of ownership for industrial enclosures and cabinet assemblies.
Product Information
Extended Description
8614100 Rittal: TS Hinge attachment, for partial mounting plate TS, SE
Article number
TS 8614.100
Product description

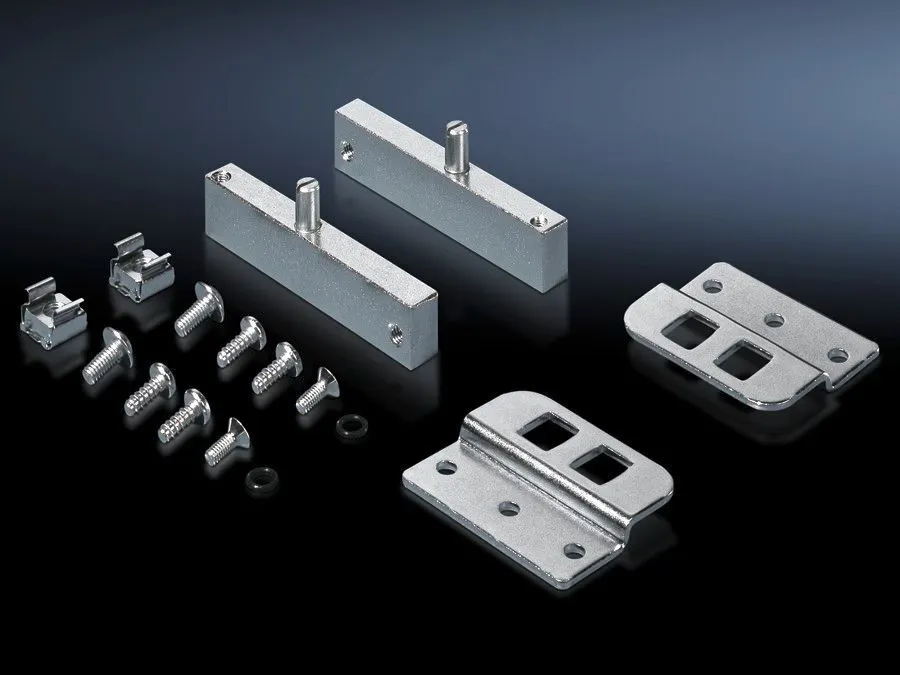

For fitting partial mounting plates on installation kits for swing frames, small.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
In conjunction with the hinge for side panel, with an enclosure depth of 600 or 800 mm, side installation is identical to installation parallel to the front.
Packs of
1 pc(s).
Weight/pack
0.54 kg
Customs tariff number
73269098
EAN
4028177300422
ETIM 9
EC001167
ECLASS 8.0
27409219
Product description
TS Hinge attachment, for partial mounting plate TS, SE
Feature: Steel construction with zinc-plated finish provides corrosion resistance and long service life in demanding environments. Business impact: Reduced maintenance cycles and lower replacement costs, improving overall equipment uptime. Application: Ideal for Rittal enclosures exposed to dust, moisture, or industrial cleaners, while preserving load capacity during hinge operation. Feature: Supply includes assembly parts, eliminating the need to source small fasteners separately. Business impact: Accelerated assembly times and lower labor costs on site. Application: Fits seamlessly into installation workflows for swing frames and side panels with standard kit components. Feature: Specifically designed for installation kits for swing frames with enclosure depths of 600 or 800 mm; side installation mirrors front installation. Business impact: Minimizes rework and training requirements, improving install predictability. Application: Useful in compact and compact-plus cabinet configurations where space constraints are critical. Feature: Pack size of 1 pc(s) and weight per pack 0.54 kg support efficient handling and inventory planning. Business impact: Simplified logistics and BOM accuracy, reducing stock discrepancies. Application: Facilitates consistent replenishment for field service and manufacturing cells. Feature: ETIM 9 EC001167 and ECLASS 8.0 27409219 classification alignment ensures procurement data integrity. Business impact: Streamlined ERP and purchasing workflows with accurate product data. Application: Standardized cataloging across multiple corporate systems. Feature: Assembly instructions note proper orientation and compatibility with side panels; documentation is included. Business impact: Reduces misassembly risk and support calls, enabling faster commissioning. Application: Clear guidance supports technicians during onboarding and routine maintenance.
Get a Quick Quote for a Rittal 8614100
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8614100?
Enquire Now
FAQs
Begin by aligning the hinge with the partial mounting plate and install using the included assembly parts. The instructions specify that side-panel installation is identical to the front when used with enclosure depths of 600 or 800 mm; follow the orientation guidelines to ensure accurate mounting and reliable hinge operation.
Yes. The product description states it is for fitting partial mounting plates on installation kits for swing frames, small, and the assembly instruction reinforces correct side-panel orientation. This makes it suitable for TS swing-frame configurations when paired with the standard mounting kits.
Key benefits include robust steel construction with a zinc-plated finish for durability, included assembly parts to streamline installation, and a design that aligns with 600/800 mm enclosure depths for consistent, front-to-side mounting. These factors reduce installation time and risk of misalignment, improving uptime and reliability.
Yes. The data indicates an assembly instruction and a product description, with downloadable content available (DE, EN PDFs) for guidance. This helps technicians follow correct orientation and improves first-pass success during commissioning.
The product is classified under ETIM 9 EC001167 and ECLASS 8.0 27409219, which supports data consistency for procurement and ERP systems. Note that CE, IP, or SIL certifications are not explicitly listed in the provided data; verify with the supplier for regulatory approvals applicable to your project.
