Rittal 8614240 TS Partial mounting plate - Zinc-plated
Part Number: 8614240
Quick Summary
TS Partial mounting plate by Rittal provides universal interior installation for TS, SE, and VX enclosures. It addresses installation challenges by enabling quick replacement of defective assemblies and straightforward expansion with additional mounting levels. The product aligns with ETIM 9 EC000213 and ECLASS 8.0 27409216 standards, supporting data interoperability and procurement accuracy. The zinc-plated 2.5 mm sheet steel construction ensures durability in demanding environments. For engineering teams and procurement, this accessory delivers reliable compatibility, reduced downtime, and scalable enclosure customization, translating into safer assembly practices, easier maintenance, and lower total cost of ownership.
Product Information
Extended Description
8614240 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 1100x300 mm
Article number
TS 8614.240
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note

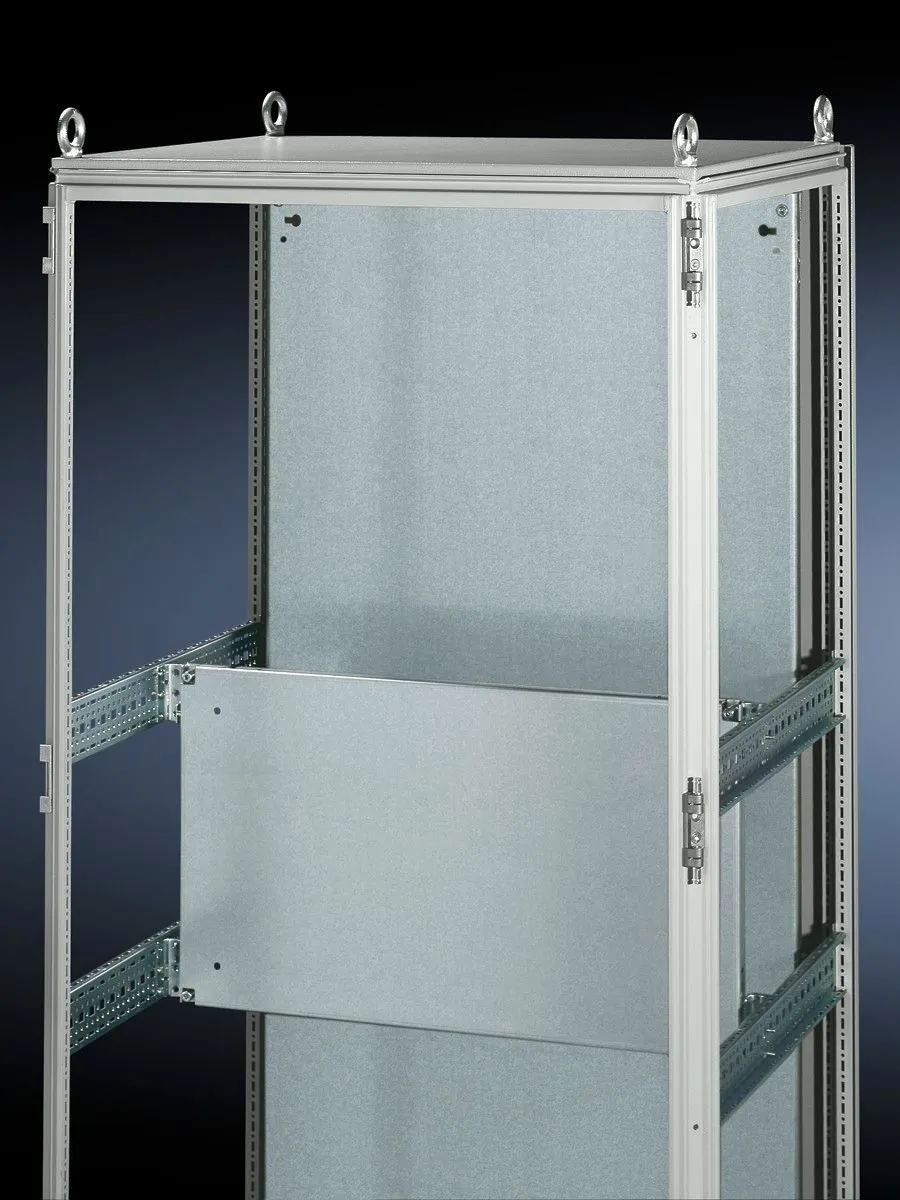

Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 1,100 mm | Height: 300 mm
To fit
Enclosure type: TS | VX SE | Width: = 400 mm | = 1,200 mm | Depth: = 400 mm
Packs of
1 pc(s).
Weight/pack
8.32 kg
Customs tariff number
94039910
EAN
4028177212282
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 1100x300 mm
Feature: Universal interior mounting for TS, SE, and W/DH enclosures. Business impact: Enables modular layout and rapid replacement of defective sections, reducing downtime and maintenance effort. Application: Ideal when expanding or reconfiguring cabinet interiors to accommodate additional components or punched sections with mounting flanges and support strips. Feature: Precise dimensions and solid build. Business impact: 1100 mm width and 300 mm height provide a stable mounting plane that supports multiple mounting levels, improving enclosure organization and airflow. Application: Use in mid- and high-density control panels where space efficiency matters. Feature: Durable material and finish. Business impact: 2.5 mm sheet steel with zinc-plated surface delivers corrosion resistance in industrial environments, lowering replacement costs. Application: Suitable for harsh plant floors and humid settings where longevity matters. Feature: Easy integration with TS punched sections. Business impact: Fast assembly with supplied loose parts enables one-step leveling and alignment, reducing commissioning time. Application: Works with TS mounting flanges 17 x 73 mm and TS support strips for the inner level. Feature: Clear fit guidance and compatibility. Business impact: Ensures reliable mounting across TS, VX SE, and width/depth combinations, minimizing misfits and rework. Application: Install with enclosures that are 400 mm or 1,200 mm wide and 400 mm deep for consistent levels.
Get a Quick Quote for a Rittal 8614240
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8614240?
Enquire Now
FAQs
The TS 8614.240 mounting plate is designed for universal interior mounting in TS and VX SE enclosures, with compatibility extending to W/DH configurations. It supports mounting levels and can be used in conjunction with punched sections, mounting flanges, and support strips to create a flexible interior layout that accommodates modular components and future upgrades.
TS 8614.240 is a 1100 mm wide by 300 mm high plate made from 2.5 mm sheet steel and finished with zinc plating for corrosion resistance. Each pack includes assembly parts, and the product weighs approximately 8.32 kg per pack, offering a robust mounting surface while maintaining manageable handling during installation.
The partial mounting plate enables quick replacement of defective assemblies and straightforward addition of mounting levels, reducing downtime during maintenance and facilitating scalable interior configurations. Its compatibility with TS punched sections and support strips allows engineers to reorganize panel layouts without extensive dismantling, delivering faster commissioning and easier future upgrades.
TS 8614.240 aligns with ETIM 9 EC000213 and ECLASS 8.0 27409216, ensuring standardized data exchange and interoperability. It also carries a customs tariff number (94039910) and is identified by the EAN 4028177212282, supporting accurate cataloging, compliance checks, and procurement workflows within industrial supply chains.
By enabling modular interior expansion and rapid replacement of components, the mounting plate reduces downtime and maintenance labor costs. Its durable zinc-plated steel construction extends cabinet longevity, while compatibility with standard TS and VX SE widths enables scalable designs, leading to lower total cost of ownership through improved uptime, easier upgrades, and consistent mounting quality across multiple installations.
