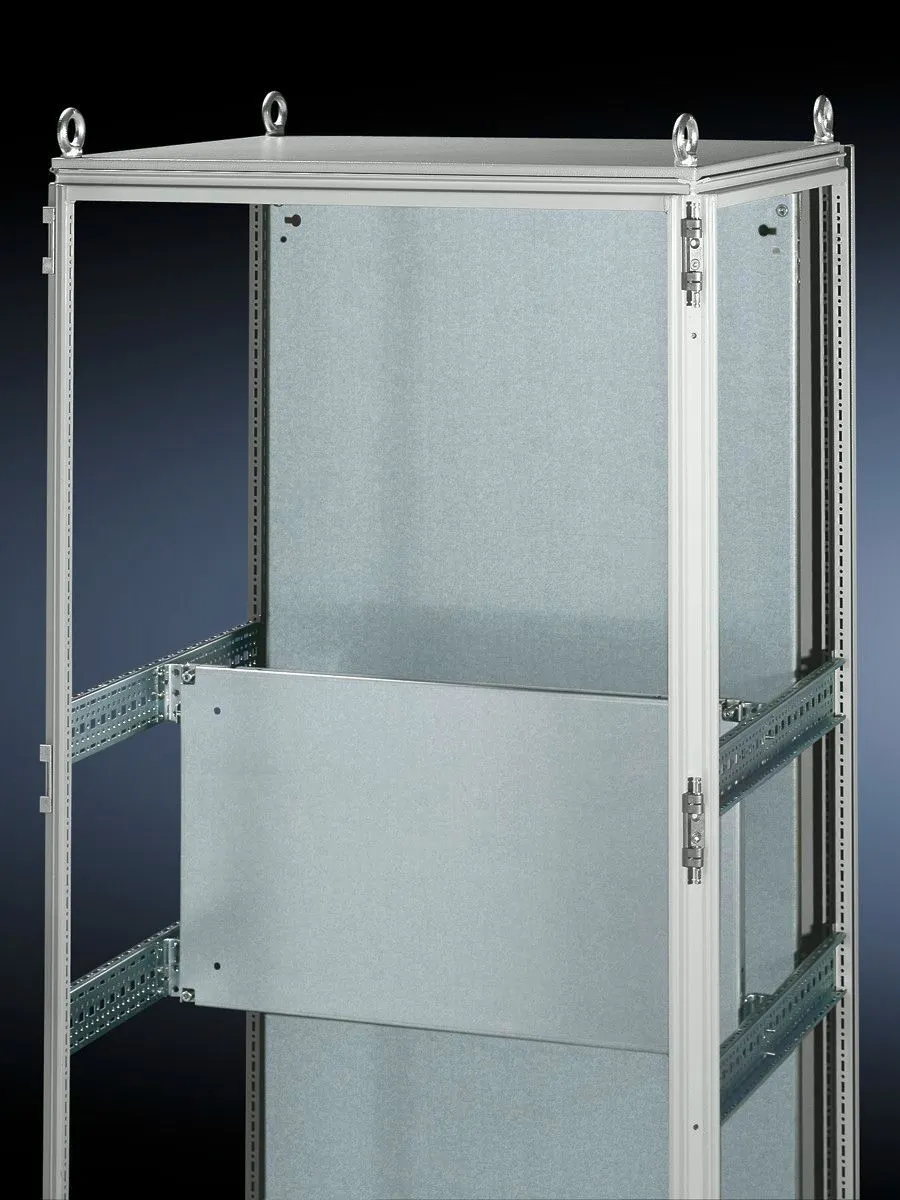

Rittal TS 8614.250 Partial Mounting Plate - Zinc-plated

The plate uses sheet steel, 2.5 mm, zinc-plated for corrosion resistance and long service life in cabinet interiors. This rugged construction maintains alignment across mounting surfaces, reducing fretting and loosening over time, while ensuring compatibility with standard enclosure materials used in industrial facilities. Dimensions are defined: Width 1,100 mm and Height 400 mm, designed for TS enclosures and VX SE variants. When used with punched sections with mounting flanges 17x73 mm and TS support strips, it forms a stable, flush interior level, simplifying layout and cable routing. Installation is straightforward: partial mounting plates fasten directly onto vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. This approach minimizes assembly steps and ensures precise alignment with neighboring TS punched sections, enabling quick replacement of defective assemblies without disturbing adjacent equipment. Compatibility and installation advantages include seamless integration with TS, VX SE, and related W/DH configurations and the inner mounting level. Having an additional mounting level reduces the need for custom brackets and reduces lead times in project schedules, making future reconfigurations easier during plant upgrades or maintenance outages. Each pack contains one plate along with assembly parts, and weight per pack is 10.55 kg, which informs shipping and handling planning. The 1 pc pack size supports straightforward budgeting for project BOMs. The product is positioned as enclosure accessory for interior mounting, with clear references to TS and VX SE compatibility. The included data points like EAN and tariff number support procurement workflows.
