Rittal TS 8614.640 Partial mounting plate - Zinc-plated
Part Number: 8614640
Quick Summary
The Rittal TS 8614.640 Partial mounting plate enables universal interior installation for TS, SE, and VX enclosures. Technicians often face challenges with adding mounting levels or replacing defective assemblies quickly; this plate provides an efficient solution that expands usable space without bulky rework. Designed with CE compliance in mind and compatibility considerations for IP-rated enclosure configurations, it supports safe, standards-aligned installations. The accessory also integrates with punched sections and mounting flanges to streamline BOM planning, while offering reliable compatibility with inner mounting levels. For engineers and procurement teams, it delivers a flexible, scalable enclosure mounting option that reduces downtime and simplifies future upgrades.
Product Information
Extended Description
8614640 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 500x300 mm
Article number
TS 8614.640
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note

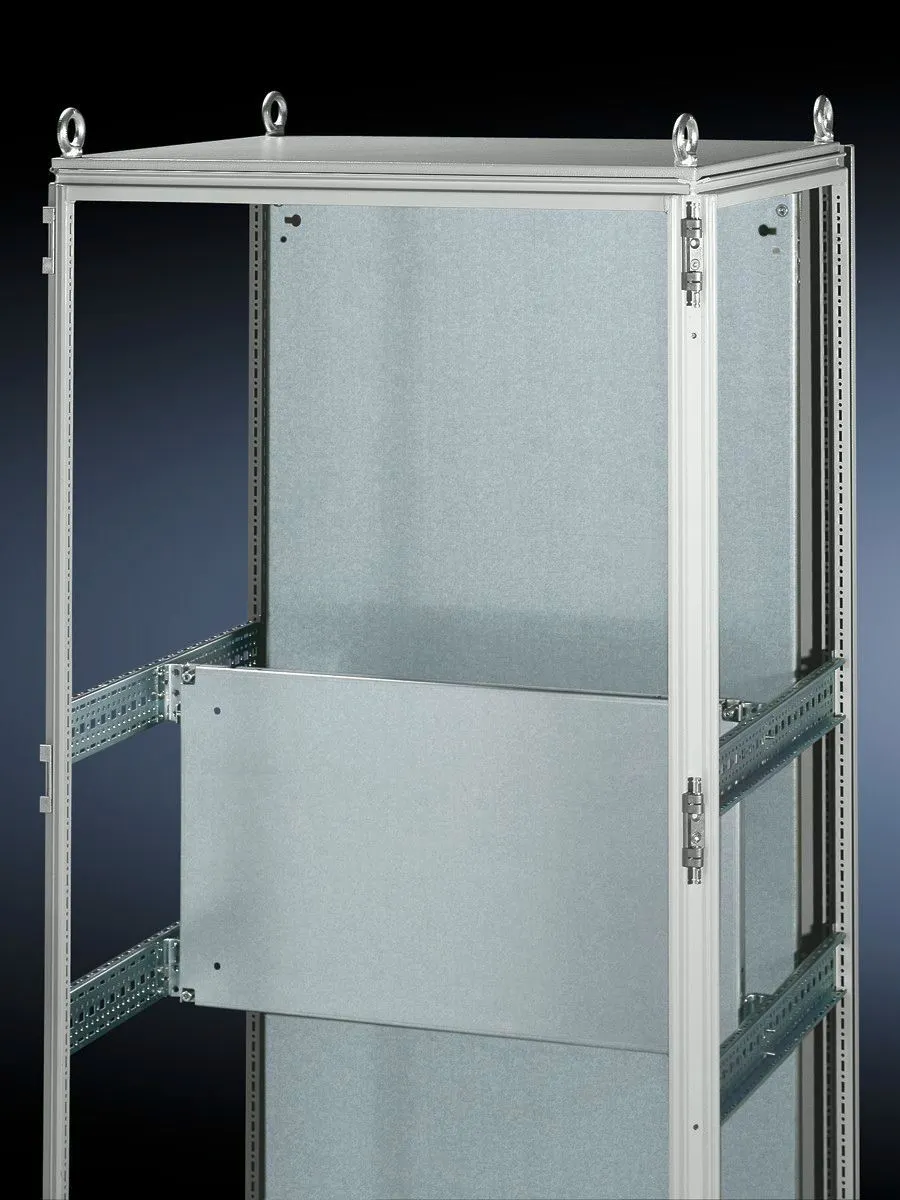

Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 500 mm | Height: 300 mm
To fit
Enclosure type: TS | VX SE | Width: = 400 mm | = 600 mm | Depth: = 400 mm | = 600 mm
Packs of
1 pc(s).
Weight/pack
4.14 kg
Customs tariff number
94039910
EAN
4028177212312
ETIM 7.0
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 500x300 mm
