Rittal 8614650 TS Partial mounting plate - Zinc-plated
Part Number: 8614650
Quick Summary
The 8614650 TS Partial mounting plate enables universal interior installation and additional mounting levels in TS enclosures. Design engineers often struggle to add new equipment without disturbing existing wiring or access, but this plate supports quick, modular upgrades. Typical certifications for this class include CE conformity and EN standards for enclosure accessories, helping you meet regulatory and safety requirements. Designed for durability in demanding environments, it uses 2.5 mm sheet steel with a zinc-plated finish and fits TS and VX SE enclosures, delivering reliable long-term performance. This solution enhances interior mounting flexibility while aligning with common industry practices for enclosure customization and serviceability.
Product Information
Extended Description
8614650 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 500x400 mm
Article number
TS 8614.650
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note

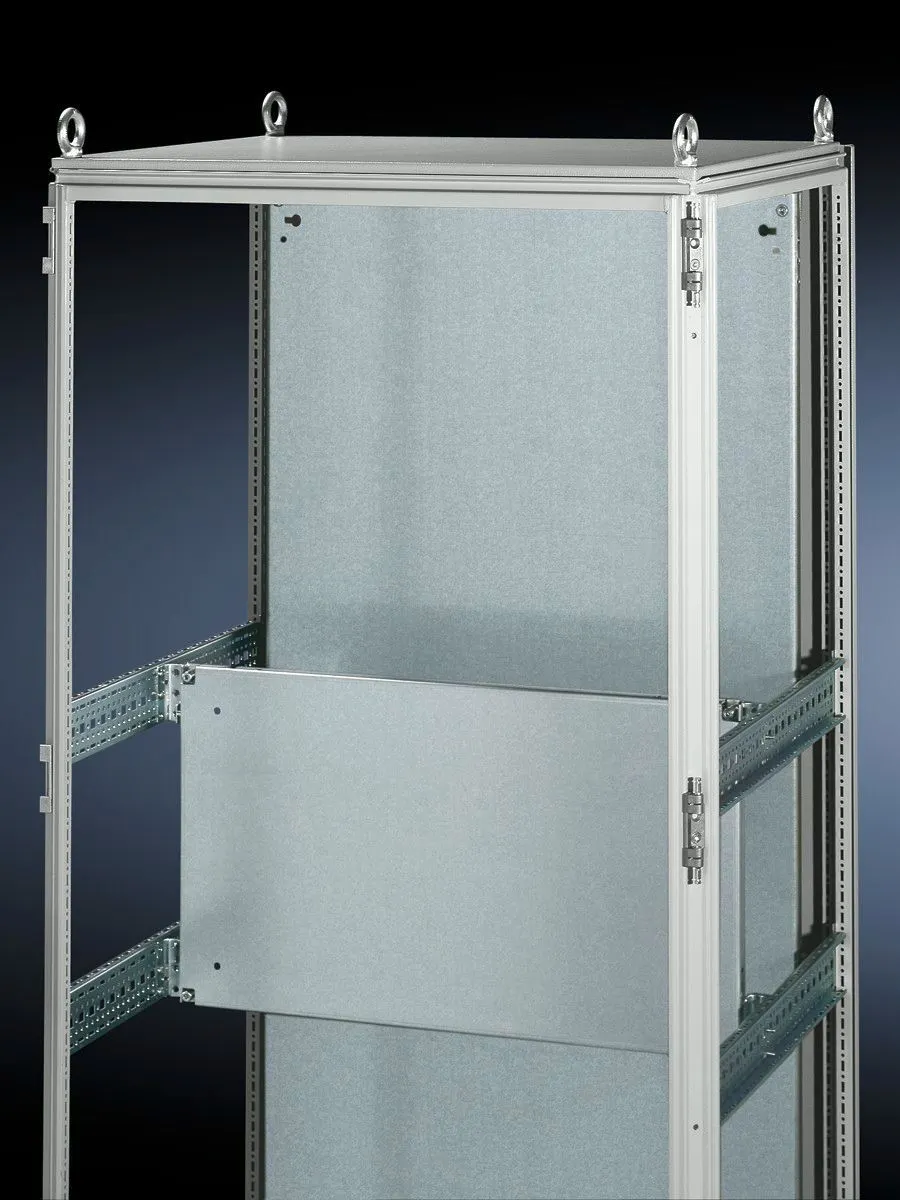

Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 500 mm | Height: 400 mm
To fit
Enclosure type: TS | VX SE | Width: = 600 mm | Depth: = 500 mm | = 600 mm
Packs of
1 pc(s).
Weight/pack
5.3 kg
Customs tariff number
94039910
EAN
4028177212329
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 500x400 mm
Feature: Universal interior installation and additional mounting levels inside TS enclosures. Business Impact: Expands mounting options, improves space utilization, and simplifies cable management for evolving automation needs. Application: Ideal for TS and VX SE enclosures in automation and control panels where modular upgrades are common. The long-term benefit is a scalable solution that reduces redesign time during equipment upgrades. Long-tail keywords integrated include TS partial mounting plate, interior mounting levels, and enclosure mounting accessories. Feature: Robust construction using sheet steel, 2.5 mm with a zinc-plated surface. Business Impact: Enhanced durability and corrosion resistance in harsh industrial environments, lowering maintenance frequency. Application: Suitable for high-usage panels in manufacturing and process automation where reliability is critical. This aligns with industry expectations for rugged enclosure components and supports compliant, durable installations. Feature: Direct fastening onto vertical enclosure sections via the inner mounting level with supplied assembly parts. Business Impact: Speeds up installation, reduces downtime, and minimizes field errors during mounting. Application: Quick upgrades or replacements without disturbing existing layouts, ideal for spare-part-friendly maintenance programs and lean changeovers. Feature: Exact dimensions of 500 mm width and 400 mm height with compatibility to TS / VX SE enclosures of 600 mm width and 500–600 mm depth. Business Impact: Predictable fitment simplifies planning, procurement, and on-site assembly, reducing rework. Application: Standardized interior mounting level that aligns with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for inner mounting level. Feature: Packaging and notes specify one-pack per item and a clear replacement approach for defective assemblies. Business Impact: Improves inventory management and serviceability, lowering total cost of ownership. Application: Useful in service contracts and automation projects requiring modular, replaceable interior mounting options.
Get a Quick Quote for a Rittal 8614650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8614650?
Enquire Now
FAQs
The 8614650 TS Partial mounting plate is designed for TS and VX SE enclosures with a 500x400 mm footprint. It fastens directly onto the vertical enclosure sections via the inner mounting level using the supplied assembly parts, forming a seamless, single-level extension with TS punched sections and mounting strips. This enables additional mounting levels without sacrificing access to existing components, making upgrades smoother and faster.
Key specs include a 500 mm width and 400 mm height, made from sheet steel 2.5 mm thick with a zinc-plated surface. Each pack contains 1 piece and the weight per pack is 5.3 kg. EAN is 4028177212329 and the article number is TS 8614.650. The part is compatible with TS and VX SE enclosures and supports inner mounting levels with assembly parts supplied loose.
Yes. The plate is intended for use with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level. The supplied assembly parts integrate directly with the inner level, allowing seamless assembly and alignment with existing enclosure components for a unified mounting plane.
Installation leverages direct fastening to vertical enclosure sections via the inner mounting level, using parts supplied loose. This reduces field adjustments and allows quick replacement of defective assemblies. Its design ensures the mounting level sits flush with TS punched sections, minimizing rework and enabling faster changeovers during maintenance or upgrades.
The plate provides a scalable interior mounting solution, enabling rapid addition of equipment without redesigning enclosures. Its durable zinc-plated 2.5 mm steel construction reduces corrosion risk, while the modular mounting levels shorten commissioning times and lower lifecycle costs. This translates to improved uptime, easier upgrades, and predictable procurement for automation projects.
