Rittal 8614840 Partial mounting plate - 700x300 mm
Part Number: 8614840
Quick Summary
Rittal 8614840 Partial mounting plate enables universal interior installation across TS enclosures. Engineers often struggle with modular layouts and the need to quickly swap defective assemblies, especially in high-mix environments. While the data does not list CE, SIL, or IP certifications, it aligns with ETIM EC000213 and ECLASS 27409216 classifications, supporting interoperability in industrial cabinet systems. For procurement, this accessory complements TS and VX SE enclosures, simplifying interior expansion and inventory management while delivering consistent installation quality.
Product Information
Extended Description

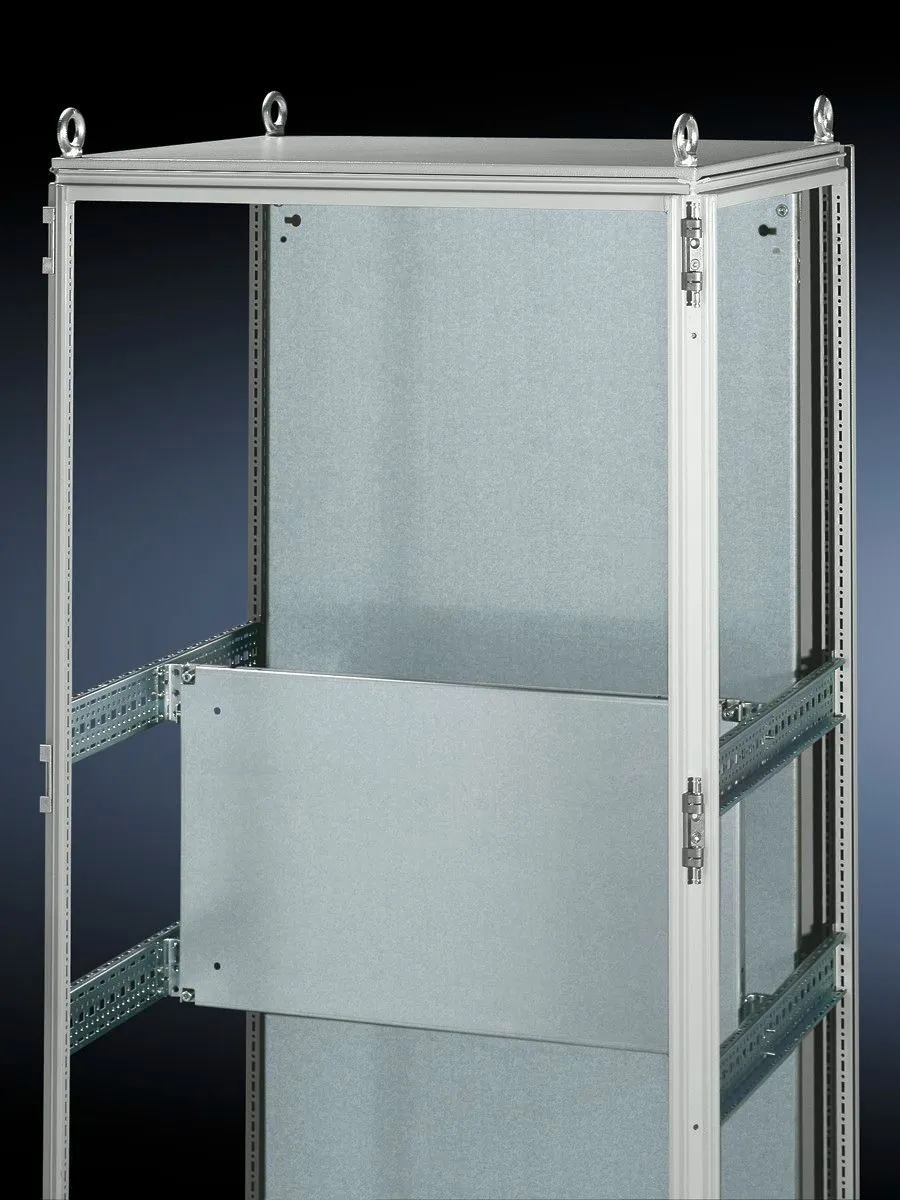

8614840 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 700x300 mm
Article number
TS 8614.840
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note
Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 700 mm | Height: 300 mm
To fit
Enclosure type: TS | VX SE | Width: = 400 mm | = 800 mm | Depth: = 400 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
5.5 kg
Customs tariff number
94039910
EAN
4028177212343
ETIM 7.0
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 700x300 mm
Feature: Universal interior installation enables flexible mounting levels and additive configurations. Business Impact: Reduces design time and stock variety, speeding up project delivery and improving overall enclosure utilization. Application: Works with TS, SE, and W/DH enclosures to support punched sections with mounting flanges and TS support strips. Long-tail keywords: universal interior installation, TS punched sections, mounting levels. Feature: 2.5 mm sheet steel with zinc plating provides robust durability. Business Impact: Enhanced corrosion resistance and long service life in demanding industrial environments. Application: Ideal for panel interiors where frequent access and replacement are required. Long-tail keywords: zinc-plated sheet steel, 2.5 mm material, enclosure durability. Feature: Direct fastening onto vertical enclosure sections via the inner mounting level. Business Impact: Streamlines installation, reduces assembly steps, and minimizes field calibration time. Application: Includes assembly parts for fast, secure mounting. Long-tail keywords: inner mounting level, installation efficiency, assembly parts. Feature: Fixed dimensions (Width 700 mm, Height 300 mm) with broad compatibility (TS and VX SE widths 400/800 mm, depths 400/800 mm). Business Impact: Expands applicability and lowers stock complexity. Application: Visually aligns with TS punched sections and mounting flanges for a seamless level. Long-tail keywords: 700x300 dimensions, enclosure compatibility, mounting flange alignment. Feature: Packaging and logistics (1 pc pack, 5.5 kg per pack, assembly parts included). Business Impact: Simplifies procurement and on-site handling, reducing project downtime. Application: Ready-to-install accessory that integrates with existing TS/VX SE footprints. Long-tail keywords: 1 piece pack, 5.5 kg, included assembly parts.
