Rittal TS 8614.880 Partial mounting plate - 700x700 mm
Part Number: 8614880
Quick Summary
Rittal TS 8614.880 partial mounting plate enables universal interior mounting for TS enclosures. It addresses the common challenge of rigid, single-level installations by providing an adaptable mounting surface that can be extended with punched sections and support strips. This plate supports easy replacement of defective assemblies and adds mounting levels without rewiring. While the data does not list formal certifications, CE compliance and standard industrial practices typically apply to enclosure accessories, and users should verify requirements for their region, including potential IP protection when mounted in exposed environments. The plate is designed for TS and VX SE families, aligning with 700x700 mm footprints, and it complements other interior mounting components to optimize space, accessibility, and maintenance.
Product Information
Extended Description
8614880 Rittal: TS Partial mounting plate, for TS, SE, W/DH: 700x700 mm
Article number
TS 8614.880
Product description
For universal interior installation, also in conjunction with punched sections with mounting flanges and support strips. Defective assemblies are quickly and easily replaced. Additional mounting levels.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Note

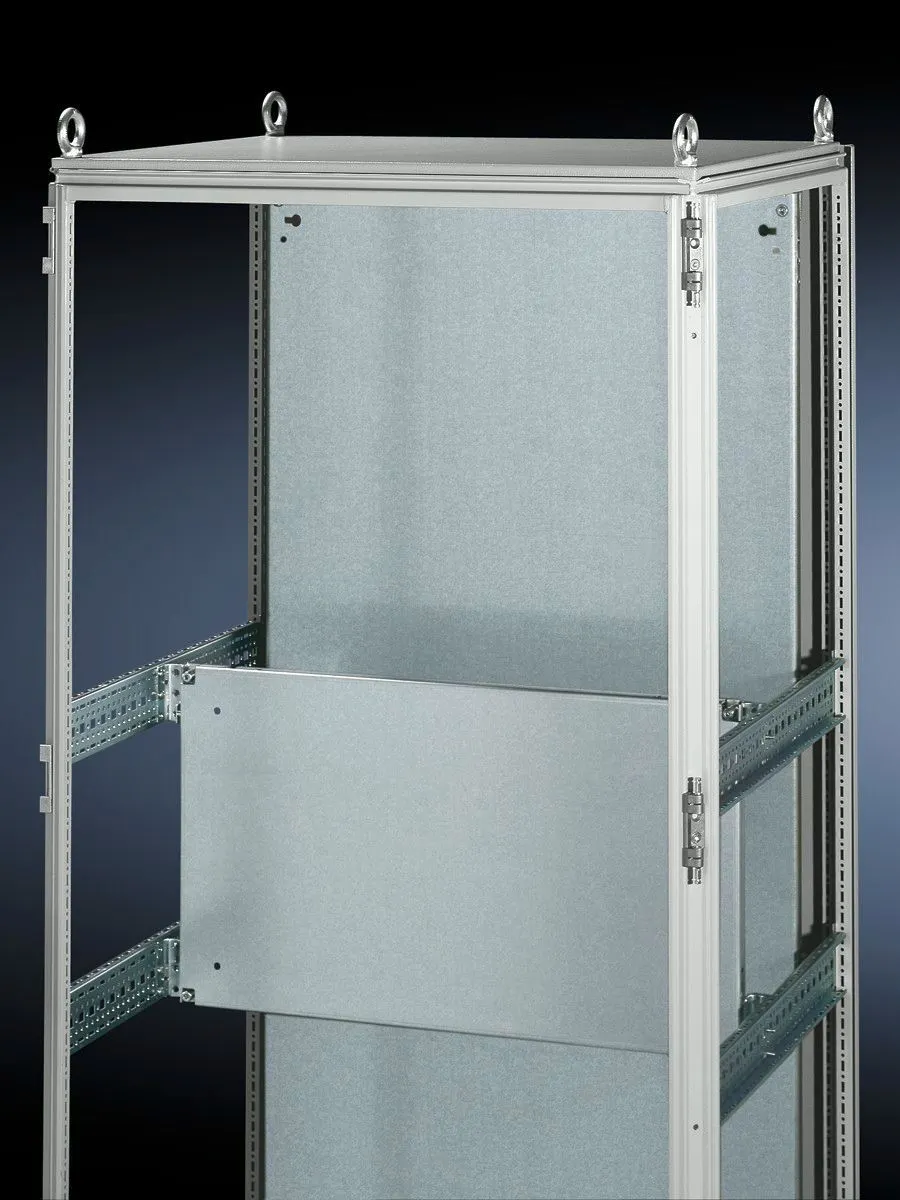

Partial mounting plates are fastened directly onto the vertical enclosure sections via the inner mounting level using the assembly parts supplied loose. In this mounting position (in both the width and the depth) they form one level with TS punched sections with mounting flanges 17 x 73 mm and TS support strips for the inner mounting level.
Dimensions
Width: 700 mm | Height: 700 mm
To fit
Enclosure type: TS | VX SE | Width: = 800 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
11.65 kg
Customs tariff number
94039910
EAN
4028177212374
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
TS Partial mounting plate, for TS, SE, W/DH: 700x700 mm
Feature: 2.5 mm sheet steel with zinc-plated surface. Business impact: robust mechanical strength and corrosion resistance for long service life in harsh industrial environments, reducing maintenance intervals. Application: interior mounting in TS enclosures to support multiple mounting levels. Feature: Universal compatibility with TS, SE, and W/DH configurations. Business impact: simplifies BOM planning and accelerates panel assembly across standard sizes. Application: supports 700x700 mm footprint installations and integrates with TS punched sections and support strips. Feature: Includes assembly parts and direct mounting to vertical sections. Business impact: minimizes loose hardware, speeds up installation, and lowers total installed cost. Application: rapid upgrades and quick replacement of assemblies without field rework. Feature: Dimensional fit and weight data (700x700 mm, 11.65 kg per pack). Business impact: aids design validation, shipping planning, and modular expansion. Application: precise space planning for interior mounting levels. Feature: Designed to work with inner mounting level and mounting flanges 17 x 73 mm. Business impact: ensures consistent alignment, reduces misfits, and enables additional levels without redesign. Application: modular interior expansions and scalable enclosure interiors.
