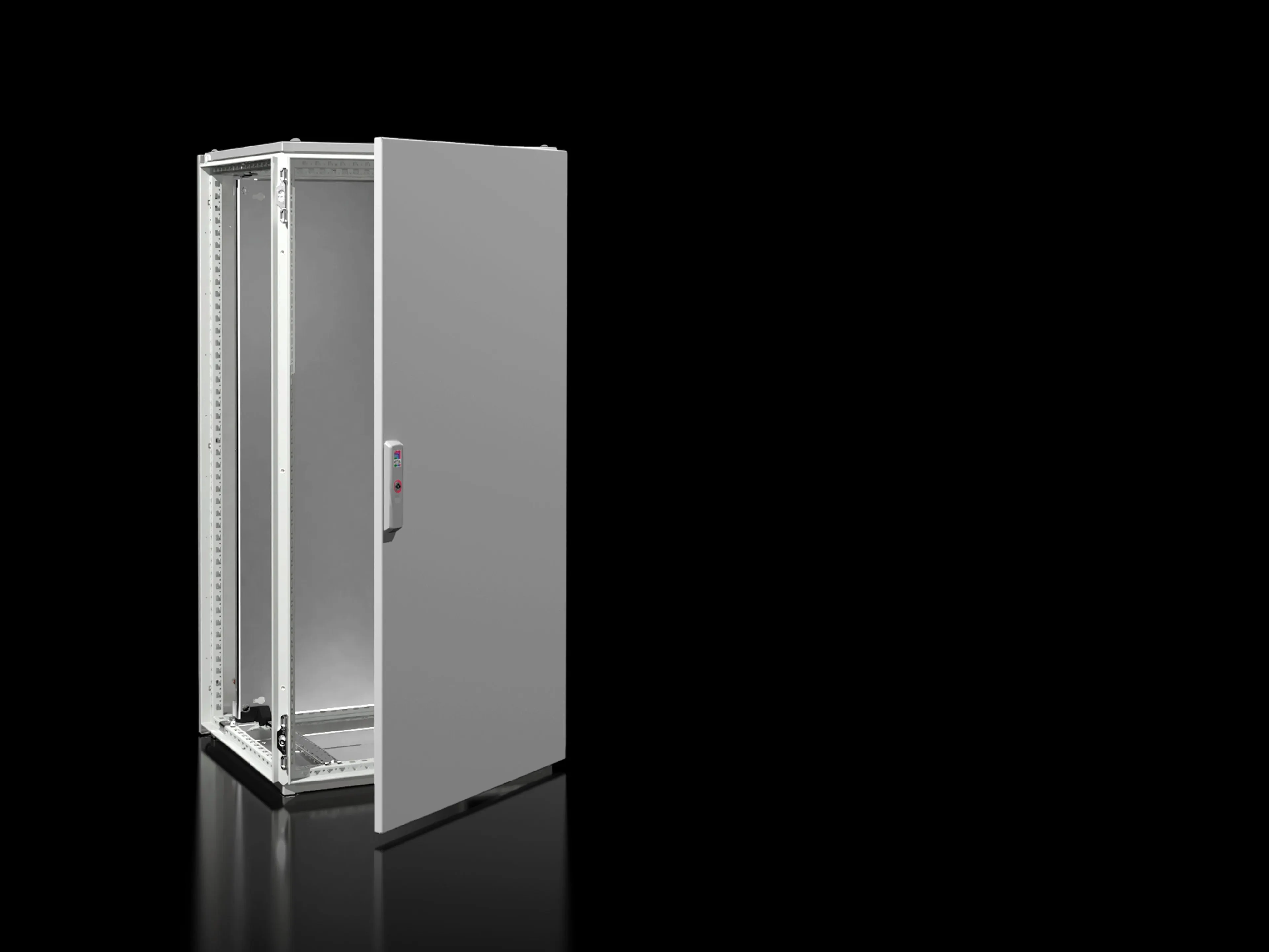

Rittal VX 8615.000 Enclosure - IP55
Part Number: 8615000
Manufacturer
Rittal
Part number
8615000
Alt Part Number
VX 8615.000
Quick Summary
Rittal VX 8615.000 Enclosure protects electrical assemblies in control cabinets for industrial automation. Engineers often struggle with mounting flexibility, cable routing, and durability in tight spaces. This enclosure delivers IP55 protection, IK10 impact resistance, and UL 50E Type 1 listings for dependable safety. Designed with a mounting plate and gland plates, it streamlines interior installation and reduces lifecycle costs. The 600x1200x500 mm WHD configuration supports scalable layouts, while powder-coated exterior and zinc-plated gland plates simplify maintenance and long-term reliability for demanding environments.
Product Information
Extended Description
8615000 Rittal: VX Baying enclosure system, WHD: 600x1200x500 mm, sheet steel, with mounting plate, single door at the front
Article number
VX 8615.000
Material
Enclosure frame: Sheet steel, 1.5 mm | Roof: Sheet steel, 1.5 mm | Door: Sheet steel, 2.0 mm | Rear panel: Sheet steel, 1.5 mm | Gland plates: Sheet steel, 1.5 mm | Mounting plate: Sheet steel, 3.0 mm
Surface finish
Enclosure frame: Dipcoat-primed | Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint | Mounting plate and gland plates: Zinc-plated
Colour
RAL 7035
Supply includes
Enclosure frame | Door(s) | Door hinged on the right, may be swapped to the left | Roof plate | Rear panel | Gland plates | Mounting plate | 2 punched rails 18 x 39 mm | Lock: 3 mm double-bit
Dimensions
Width: 600 mm | Height: 1,200 mm | Depth: 500 mm
Dimensions mounting plate (W x H)
499 mm x 1,096 mm
Protection category to IEC 60 529
IP 55
Protection category NEMA
NEMA 1
Type rating to UL 50E
Type 1
IK Code
IK10
Number of doors
1
Basic material
Sheet steel
Packs of
1 pc(s).
Weight/pack
66 kg
PCF per pack (cradle-to-gate)
162.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177813755
ETIM 8
EC000261
ETIM 7.0
EC000261
ECLASS 8.0
27180101
Product description
VX Baying enclosure system, WHD: 600x1200x500 mm, sheet steel, with mounting plate, single door at the front
Feature → Business Impact → Application: The VX 8615.000 offers a robust sheet-steel enclosure frame (1.5 mm), a front door, roof, and rear panel that withstand harsh environments, enabling safer cabinet interiors and reduced field rework. Benefit: Improved safety and reduced downtime due to durable construction and reliable seals. Application: Industrial control panels in automation lines demanding consistent protection and easy maintenance. Feature → Business Impact → Application: It ships with a mounting plate, gland plates, and two punched rails (18 x 39 mm), enabling fast, tool-free mounting of components. Benefit: Accelerated commissioning and lower installation costs. Application: Control cabinets where space optimization and rapid wiring are critical. Feature → Business Impact → Application: Door hinged on the right (swappable to left) supports flexible layouts and simplified retrofits. Benefit: Faster reconfigurations and fewer rework costs. Application: Modular machines and manufacturing lines with evolving cabinet designs. Feature → Business Impact → Application: Powder-coated exterior with zinc-plated plates provides long-term corrosion resistance. Benefit: Extended cabinet life, reduced repainting, and lower lifecycle maintenance. Application: Enclosures exposed to dust, moisture, or cleaning agents. Feature → Business Impact → Application: The compact 600x1200x500 mm footprint and 1-door front design optimize interior space and wiring harness routing. Benefit: Higher component density and cleaner cable management. Application: Short-cycle builds and retrofit projects needing compact, organized interiors.
Get a Quick Quote for a Rittal 8615000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8615000?
Enquire Now
FAQs
VX 8615.000 is designed to integrate with standard Rittal mounting rails (18 x 39 mm) and includes a mounting plate (499 x 1096 mm) along with 2 punched rails. The door can be hinged on the right or swapped to the left, simplifying retrofits and ensuring compatibility with existing enclosure accessories, vertical cable management, and gland plate configurations for rapid installations.
The enclosure uses sheet steel construction with a 1.5–2.0 mm frame and doors up to 2.0 mm. It achieves IP55 protection, IK10 impact resistance, and NEMA 1 listing, with a powder-coated exterior and zinc-plated gland plates. This combination delivers weather resistance, physical protection, and reliable performance in typical factory environments.
Yes. The VX 8615.000 accommodates standard control panels in automotive assembly lines and process industries. Its 600x1200x500 mm footprint, single front door, and mounting plate support modular equipment layouts, while the IP55/IK10 ratings provide protection against dust and impact. The design supports clean wiring, easy component upgrades, and compliant cabinet installations in harsh production environments.
The enclosure carries IP55 protection, IK10 impact resistance, and UL 50E Type 1 compatibility, plus NEMA 1 criteria, ensuring regulatory alignment for many markets. Maintenance is simplified by a dipcoat-primed surface, powder-coated exterior, and zinc-plated gland plates, which reduce corrosion risk and simplify routine cleaning and inspection.
By enabling faster interior installation, flexible door orientation, and standardized mounting rails, it reduces commissioning time and field rework. Durable materials and finishes lower maintenance and repainting needs, while scalable mounting options support future expansions without cabinet replacement, delivering measurable savings in manpower, downtime, and long-term durability for automation projects.
