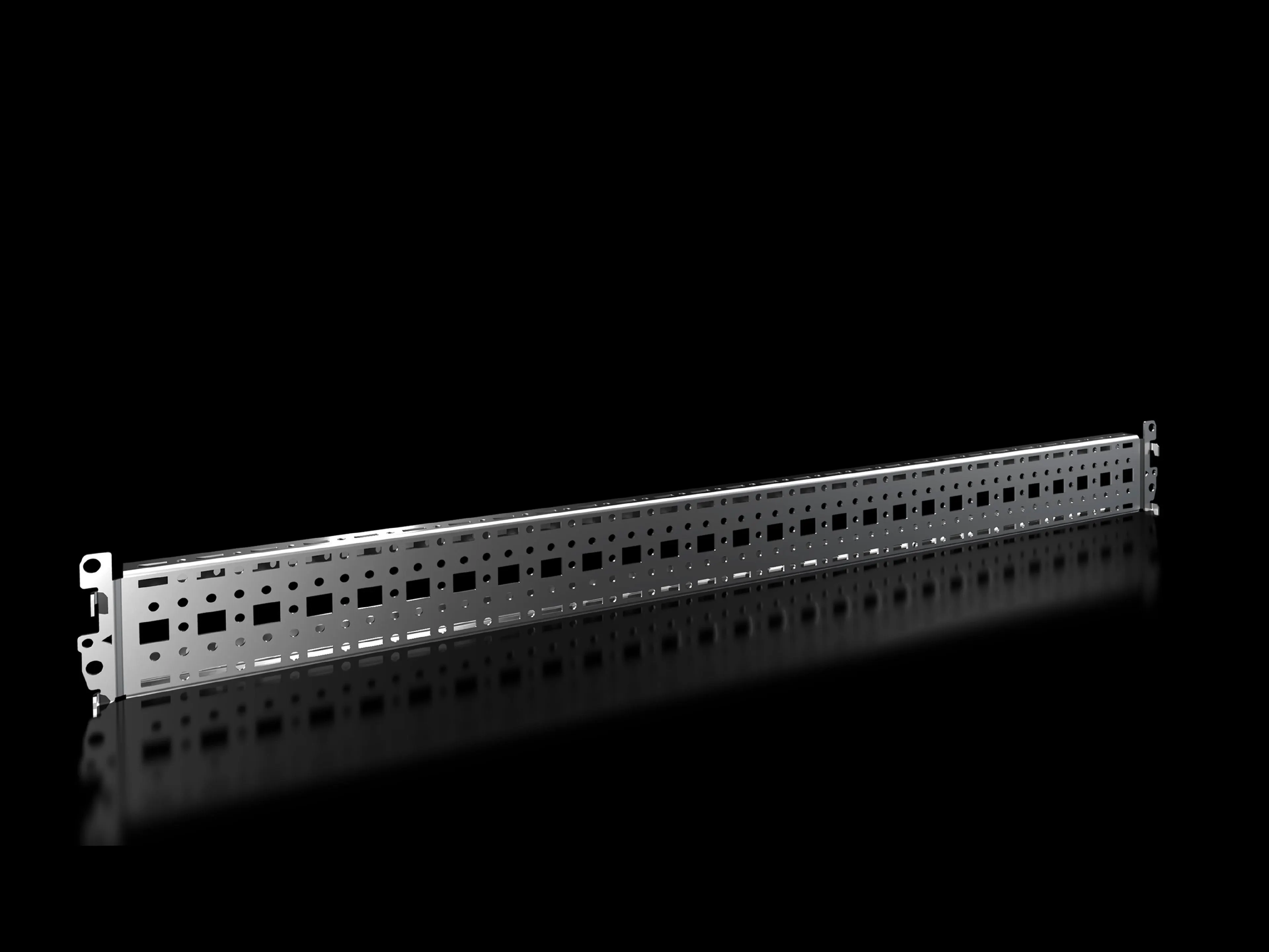

Rittal VX 8617.020 Punched Section - Outer mounting level
Part Number: 8617020
Manufacturer
Rittal
Part number
8617020
Alt Part Number
VX 8617.020
Quick Summary
The Rittal VX 8617.020 punched section enables flexible interior mounting on the outer mounting level for VX enclosures. In field installations, misaligned frames and time-consuming alignment are common pain points; this part simplifies placement by locating into system punchings from the outside and screw-fastening, reducing setup time. Note: specific certifications like CE, IP ratings, or SIL are not listed for this item; consult the official datasheet for compliance requirements. The data also lists ETIM 7.0 EC002625 and ECLASS 8.0 27189234 as industry classifications, ensuring interoperability across catalogs and procurement systems. Designed for VX enclosures with a 500 mm width, it enhances installation efficiency, improves consistency, and supports scalable infrastructure across industrial cabinets.
Product Information
Extended Description
8617020 Rittal: VX Punched section, with mounting flange 18 x 64 mm, for outer mounting level
Article number
VX 8617.020
Product description
For variable, individual interior installation of the enclosure frame on the outer mounting level.
Benefits
Simply locate into the system punchings from the outside and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
On the outer mounting level, on the enclosure section
To fit
Enclosure type: VX | To fit width/depth: 500 mm
Packs of
4 pc(s).
Weight/pack
2.07 kg
Customs tariff number
73269098
EAN
4028177829053
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 18 x 64 mm, for outer mounting level
Feature: Punched section with mounting flange 18 x 64 mm is designed for outer mounting level. Business Impact: Enables rapid, tool-free alignment and reliable positioning, cutting field installation time by minutes per cabinet. Application: Use on VX enclosures to simplify interior frame mounting at the outer level. Feature: Sheet steel with zinc-plated finish delivers robust mechanical support and corrosion resistance in harsh environments. Business Impact: Extends component life and reduces maintenance cycles in factory and retrofit projects. Application: Ideal for cabinet interiors and exterior mounting fixtures requiring durability. Feature: Supply includes assembly parts and a 4-pack per order; weight per pack is 2.07 kg. Business Impact: Streamlines procurement, reduces on-site inventory handling, and lowers logistics costs. Application: Purchase in bulk for multi-cabinet deployments in data centers or manufacturing floors. Feature: Compatibility with VX enclosure type and 500 mm width; installation options cover outer mounting level or enclosure section. Business Impact: Enables flexible retrofits and scalable configurations across projects. Application: Use when upgrading existing VX systems or expanding a modular cabinet lineup. Feature: ETIM 7.0 EC002625 and ECLASS 8.0 27189234 references improve procurement integration. Business Impact: Facilitates cross-vendor catalog alignment and automated sourcing. Application: Integrate with ERP/MMIS workflows to ensure accurate part matching.
Get a Quick Quote for a Rittal 8617020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617020?
Enquire Now
FAQs
Install by locating the section into the system punchings from the outside and secure with screws. The mounting flange measures 18 x 64 mm and is designed for the outer mounting level, with assembly parts included to streamline the process and ensure consistent alignment.
Key specs include sheet steel material, zinc-plated surface, 18 x 64 mm mounting flange, outer mounting level installation, 4-pack per order, and weight of 2.07 kg per pack. It fits VX enclosures with a 500 mm width and includes assembly parts.
Yes. VX 8617.020 is designed to fit VX enclosure types with a 500 mm width and is intended for outer mounting level interior installations, with installation options on the enclosure section as needed.
Yes, the product is supplied with assembly parts necessary for installation, packaged as four-packs per order, supporting efficient procurement and uniform mounting quality.
The data lists ETIM 7.0 EC002625 and ECLASS 8.0 27189234 as classifications. Specific CE, IP, or SIL certifications are not stated; consult the official datasheet to confirm regulatory compliance for your region and application.
