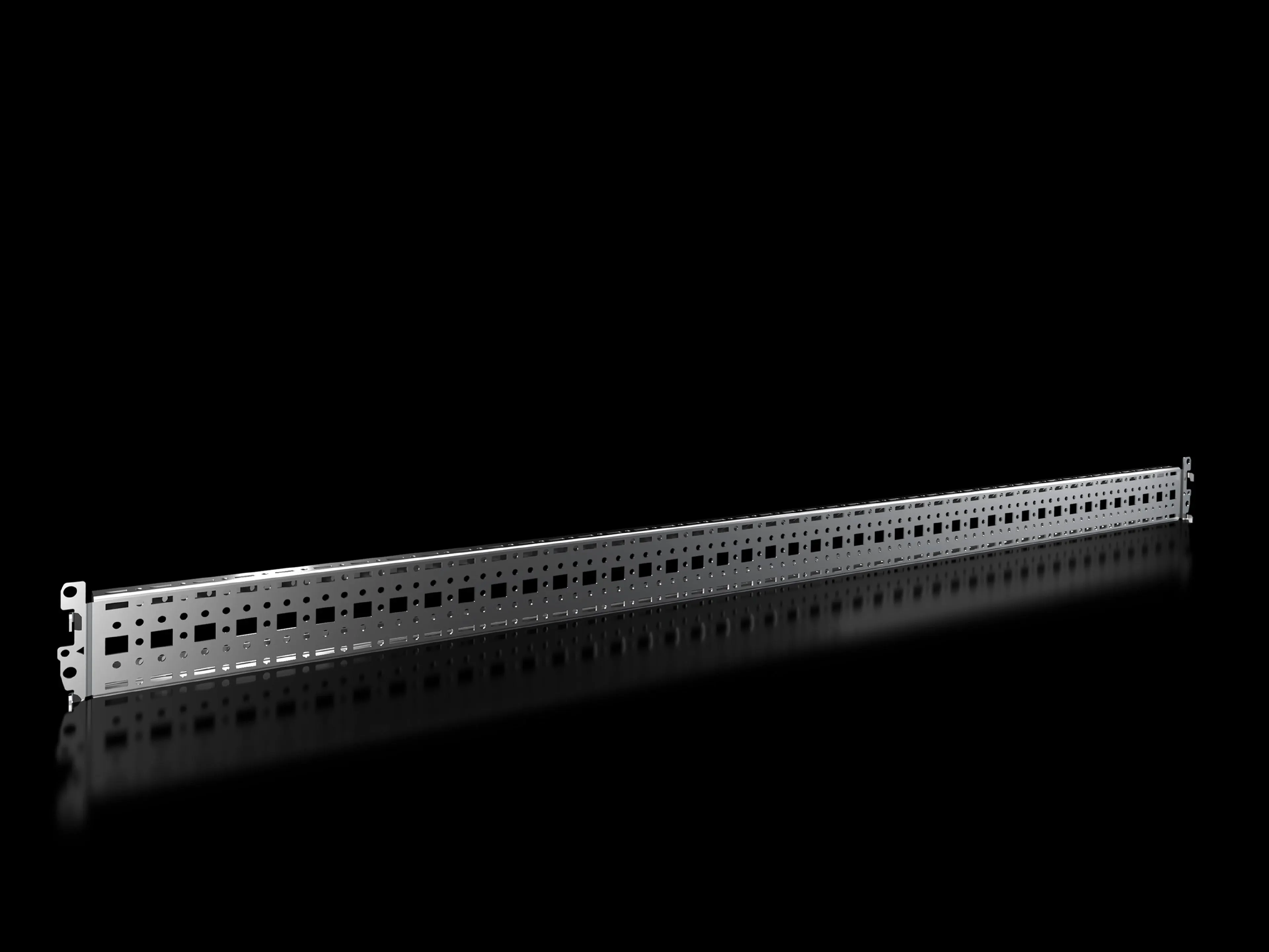

Rittal VX 8617.060 Enclosures - Outer mounting 18x64 mm
Part Number: 8617060
Manufacturer
Rittal
Part number
8617060
Alt Part Number
VX 8617.060
Quick Summary
Rittal VX 8617.060 is a punched-section accessory for flexible interior mounting on outer levels. This tool helps engineers quickly adapt enclosure layouts in tight automation cabinets, reducing downtime during retrofits. Certification data is not specified in the provided data; verify CE compliance and IP-related enclosure standards in the official datasheet or with yourCompliance team. The VX 8617.060 uses sheet steel with a zinc-plated finish and a mounting flange of 18×64 mm, designed to fit VX enclosures up to 1,200 mm wide. This combination supports faster procurement, consistent assembly across projects, and reliable long-term performance in demanding industrial environments.
Product Information
Extended Description
8617060 Rittal: VX Punched section, with mounting flange 18 x 64 mm, for outer mounting level
Article number
VX 8617.060
Product description
For variable, individual interior installation of the enclosure frame on the outer mounting level.
Benefits
Simply locate into the system punchings from the outside and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
On the outer mounting level, on the enclosure section
To fit
Enclosure type: VX | To fit width/depth: 1,200 mm
Packs of
4 pc(s).
Weight/pack
5.42 kg
Customs tariff number
73269098
EAN
4028177829091
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 18 x 64 mm, for outer mounting level
Feature → Outer mounting level ready: The punched-section design with an 18×64 mm flange enables precise, exterior-facing interior mounting. Business impact: reduces field modifications and alignment errors, cutting commissioning time. Application: ideal for reconfiguring VX enclosures without internal drilling, improving operational readiness on the shop floor. Feature → Durable construction: Sheet steel with a zinc-plated surface. Business impact: enhances corrosion resistance and lifecycle reliability in harsh environments, lowering maintenance costs. Application: suitable for damp or industrial settings where enclosure longevity matters. Feature → Complete supply: Includes assembly parts and packs of 4 with a weight of 5.42 kg per pack. Business impact: simplifies procurement and logistics, lowering sourcing risk. Application: streamlines project planning and batch shipping for multiple enclosures. Feature → Explicit fit: Compatibility with VX enclosure width of 1,200 mm. Business impact: minimizes compatibility issues and return rates. Application: ensures consistent performance across standard VX configurations. Feature → Flexible installation options: Can be mounted on the outer level or on the enclosure section. Business impact: delivers adaptability for diverse interior mounting strategies, reducing design changes. Application: supports varied control panel layouts and cable management schemes.
Get a Quick Quote for a Rittal 8617060
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617060?
Enquire Now
FAQs
Install VX 8617.060 by locating the punched section into the VX enclosure system punchings from the outside, then screw-fastening using the included assembly parts. The pack includes four pieces designed to fit a 1,200 mm wide VX enclosure, simplifying alignment and reducing on-site drilling or modification.
VX 8617.060 is made from sheet steel and finished with zinc plating for corrosion resistance. This combination provides durable performance in industrial environments while supporting a robust, maintenance-friendly exterior mounting solution for VX enclosures.
The part is designed to fit VX enclosures with a width/depth specification of up to 1,200 mm. This ensures compatibility with standard VX cabinet configurations while enabling variable interior mounting on the outer level.
Each pack includes four punched sections along with the necessary assembly parts for screw-fastened mounting. The weight per pack is 5.42 kg, supporting straightforward handling and efficient shipment in project bundles.
Certification details are not listed in the provided data. Please consult the official VX 8617.060 datasheet or contact Rittal for CE, IP rating, and any SIL-specific requirements to ensure project compliance and traceability.
