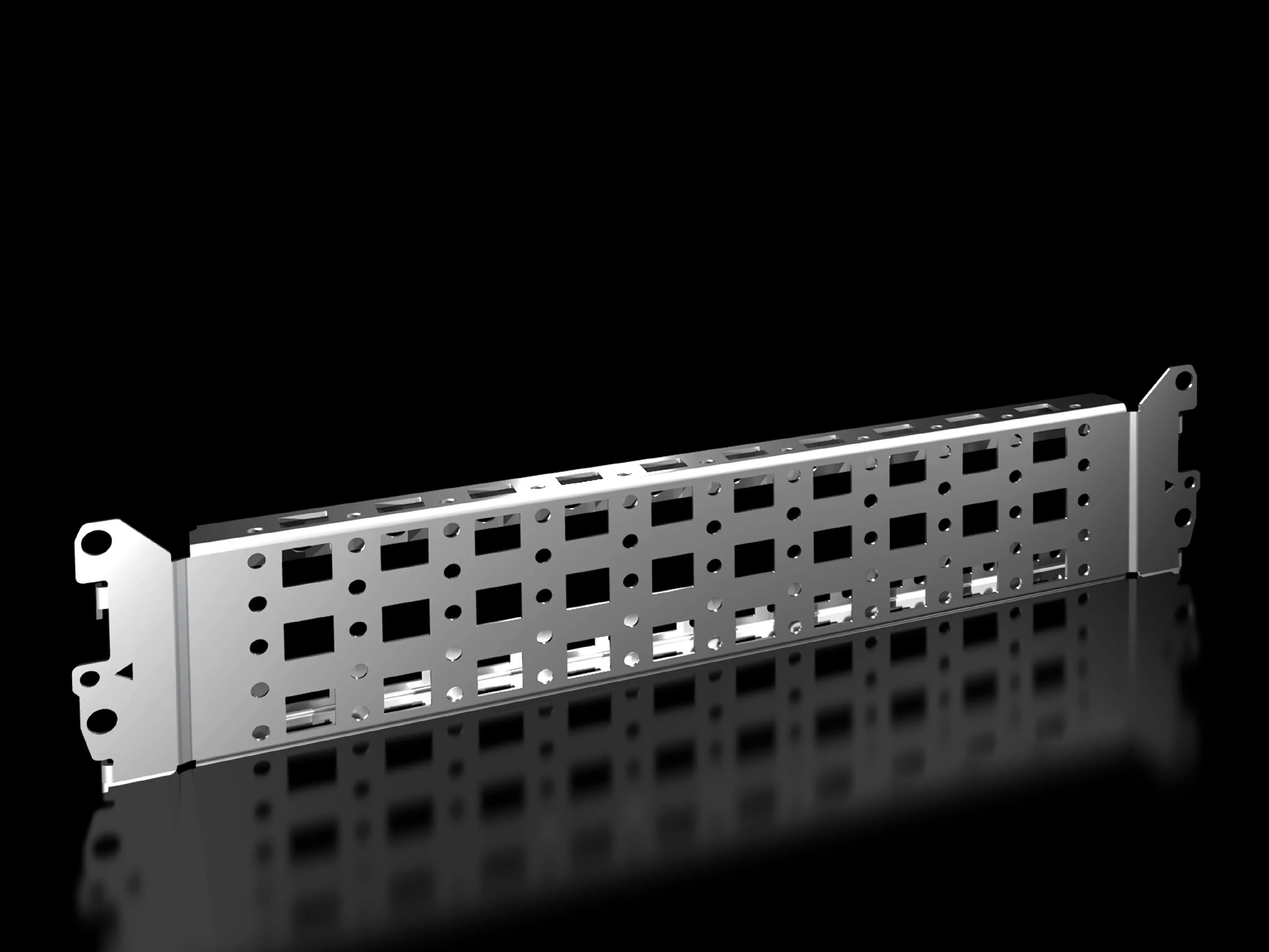

Rittal VX 8617.110 Punched Section - Zinc-plated steel
Part Number: 8617110
Manufacturer
Rittal
Part number
8617110
Alt Part Number
VX 8617.110
Quick Summary
Rittal VX 8617.110 punched section enables flexible interior mounting on inner levels of compact enclosures. When enclosure layouts change, engineers often struggle with time-consuming rework; this component speeds reconfiguration by providing a simple locating and screw-fastening interface. The data here aligns with ETIM 9 EC002620 and ECLASS 8.0 27189234 classifications, with EAN 4028177829114 for procurement, helping your ERP and purchasing systems track the part. Designed for compatibility across VX, VX IT, VX SE and AX families, it supports standard 400 mm width, depth, or height configurations, delivering a scalable, cost-efficient interior mounting solution.
Product Information
Extended Description
8617110 Rittal: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Article number
VX 8617.110
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width/depth 400 mm on the inner mounting level
VX SE installation options
In enclosure depth 400 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
AX installation options
In enclosure width/height 400 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
Installation options, AX plastic
In enclosure width 400 mm, in conjunction with universal bracket
CX installation options
In the pedestal, in the enclosure depth, 400 mm
To fit
Enclosure type: VX | VX IT | VX SE | AX | AX plastic | Suitable for width or height or depth: 400 mm
To fit
Base/plinth system VX
Packs of
4 pc(s).
Weight/pack
1.53 kg
Customs tariff number
73269098
EAN
4028177829114
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Feature: Inner mounting compatibility on the VX family enables quick reconfiguration of interior layouts. Business impact: reduces downtime during layout changes and speeds assembly times for service and expansion projects. Application: suitable for variable interior installation on the inner mounting level in VX, VX IT, and VX SE enclosures. Feature: Sheet steel, zinc-plated surface finish provides durable, corrosion-resistant support. Business impact: extended component life in harsh environments and reduced maintenance costs. Application: long-term reliability for interior mounting components in industrial enclosures.Feature: VX installation options with 400 mm width/depth on the inner mounting level and VX SE options with adaptor rail compatibility. Business impact: flexible integration with multiple enclosure configurations, lowering total system cost. Application: supports VX, VX IT, VX SE, and AX families with standardized 400 mm footprints.Feature: Supply includes assembly parts and packs of 4, weight per pack 1.53 kg. Business impact: straightforward procurement and predictable shipping, enabling bulk buys for multi-enclosure projects. Application: ideal for projects requiring multiple interior mounting sections across a building or campus.Feature: Compatibility with rails and base configuration rails for AX and AX plastic variants. Business impact: simplifies retrofits and upgrades by aligning with existing mounting rails. Application: AX and AX plastic systems integration, with clear installation pathways and minimal tooling.
Get a Quick Quote for a Rittal 8617110
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617110?
Enquire Now
FAQs
The VX 8617.110 is designed for inner mounting on the VX family and is compatible with VX, VX IT, VX SE, AX, and AX plastic variants, enabling 400 mm width/depth configurations with standard rails and mounting interfaces.
First locate the section into the system punchings on the inner mounting level, then secure it with the provided assembly parts using common screw-fastening methods. Ensure alignment with 23 x 64 mm mounting flange dimensions for reliable support.
Yes, installation options specify 400 mm width/depth on the inner mounting level, and its simple locating with screws reduces assembly time, supporting faster reconfigurations and reduced downtime in modular enclosure projects.
The part is made from sheet steel with a zinc-plated surface finish, providing durability and corrosion resistance in industrial environments, which helps extend component life inside compact enclosures and lowers maintenance needs.
Sold in packs of four with assembly parts included, the VX 8617.110 simplifies bulk purchasing for multi-enclosure builds. Its compatibility with VX and AX rail systems and 400 mm footprint options streamlines retrofits and standardizes interior mounting across projects.
