Rittal VX 8617.120 Enclosure Punched Section - Zinc-plated
Part Number: 8617120
Manufacturer
Rittal
Part number
8617120
Alt Part Number
VX 8617.120
Quick Summary
Rittal VX 8617.120 is a versatile punched section for the inner mounting level of enclosure frames in compact enclosures. This part streamlines interior configuration to adapt to changing control layouts without compromising structural integrity. CE-aligned design and common IP-rated assembly practices support reliable panel builds, while compatibility with VX, VX SE, and AX families simplifies procurement. By enabling quick, screw-fastened mounting directly into the system punchings, it reduces installation time and minimizes field rework. This translates to lower labor costs, improved project predictability, and greater flexibility for future reconfigurations within your electrical infrastructure.
Product Information
Extended Description

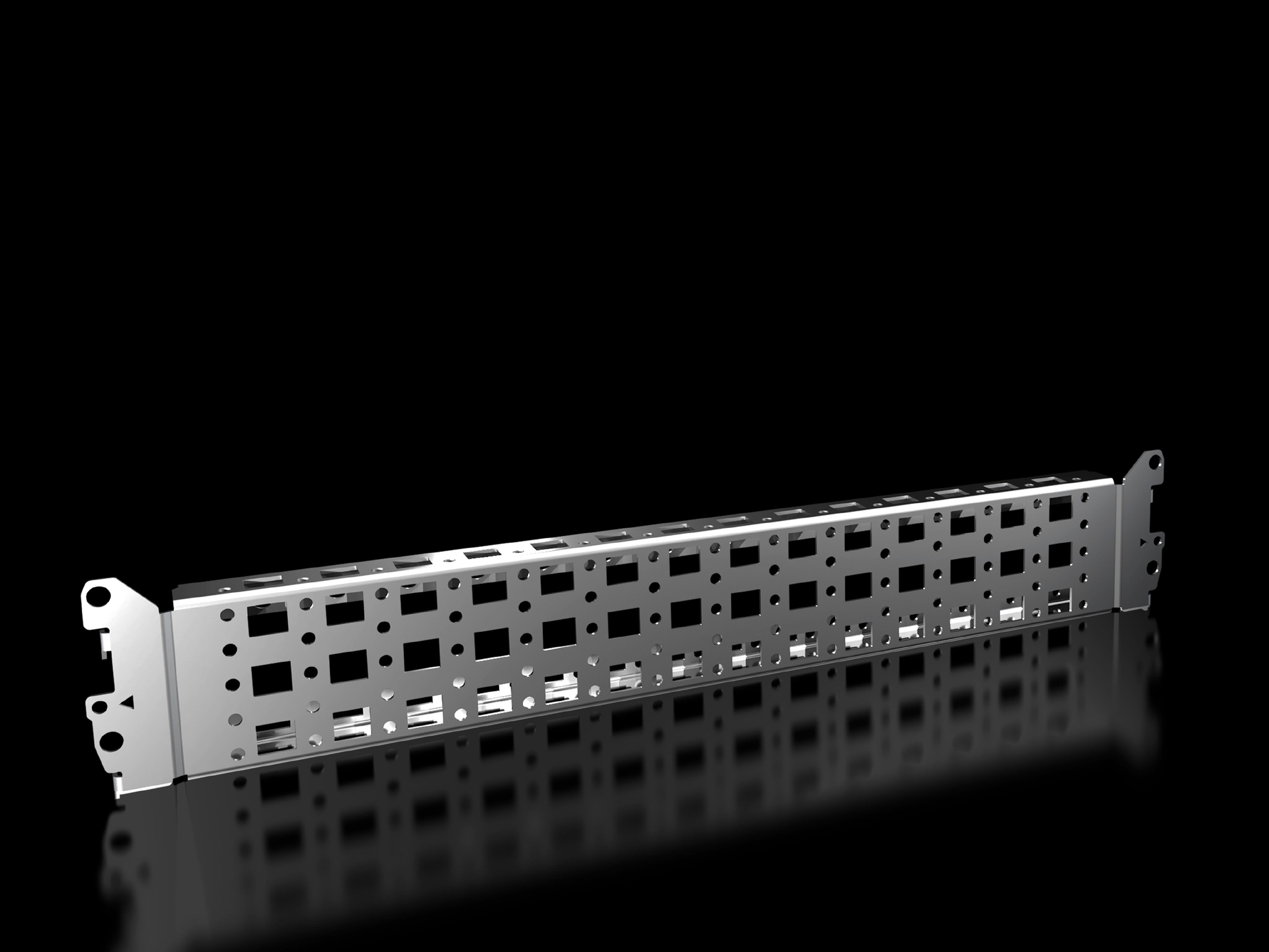

8617120 Rittal: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level, for W/H/D: 500 mm
Article number
VX 8617.120
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure depth 500 mm, on the inner mounting level
VX SE installation options
In enclosure depth 500 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
AX installation options
In enclosure width/height 500 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
Installation options, AX plastic
In enclosure width 500 mm, in conjunction with universal bracket
CX installation options
In the pedestal, in the enclosure depth, 500 mm
To fit
Enclosure type: VX | VX IT | VX SE | AX | AX plastic | Suitable for width or height or depth: 500 mm
To fit
Base/plinth system VX
Packs of
4 pc(s).
Weight/pack
1.97 kg
Customs tariff number
73269098
EAN
4028177829121
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level, for W/H/D: 500 mm
Feature → Business Impact → Application: The VX 8617.120 is a punched section with a mounting flange 23 x 64 mm, enabling variable interior installation on the inner mounting level. Impact: It accelerates setup, reduces the need for custom brackets, and improves enclosure rigidity. Application: Ideal for 500 mm W/H/D VX-based enclosures where interior flexibility is required for modular components and bus bars. Feature → Business Impact → Application: Material is sheet steel with a zinc-plated surface finish, delivering corrosion resistance in humid or dusty environments. Impact: Longer service life, lower maintenance costs, and improved electrical reliability. Application: Suitable for panel assemblies exposed to industrial conditions across manufacturing floors and data-center enclosures. Feature → Business Impact → Application: Supply includes assembly parts and packs of four, with a weight of 1.97 kg per pack. Impact: Simplifies logistics, reduces downtime during stocking, and enables easier handling during field upgrades. Application: Useful for rapid replacement stock and scalable installations in multi-door VX enclosures. Feature → Business Impact → Application: VX installation options specify placement in enclosure depth of 500 mm on the inner mounting level; VX SE options add adaptor rail compatibility. Impact: Expands retrofit and upgrade pathways, supporting standardized rails and future reconfigurations. Application: Migrates existing VX systems to newer interior mounting layouts without full enclosure replacement. Feature → Business Impact → Application: Compatibility with VX, VX IT, VX SE, AX, and AX plastic variants, plus related rails for interior installation. Impact: Reduces part proliferation, improves BOM clarity, and streamlines procurement. Application: Multiline projects and OEM builds where a single interior mounting solution covers diverse enclosure families.
