Rittal VX 8617.150 Punched Section - Zinc-plated
Part Number: 8617150
Manufacturer
Rittal
Part number
8617150
Alt Part Number
VX 8617.150
Quick Summary
Rittal VX 8617.150 punched section enables variable interior installation on the inner mounting level for compact enclosures. For designers and procurement teams, rigid interior layouts often force costly rework; this accessory offers flexible mounting points to adapt layouts as projects evolve. In practice, enclosure components like this are designed to support CE conformity and IP-rated configurations to meet safety and environmental standards. For your business, it enables faster installation, modular upgrades, and reduced downtime, while staying compatible with VX, VX SE, and AX installation options.
Product Information
Extended Description

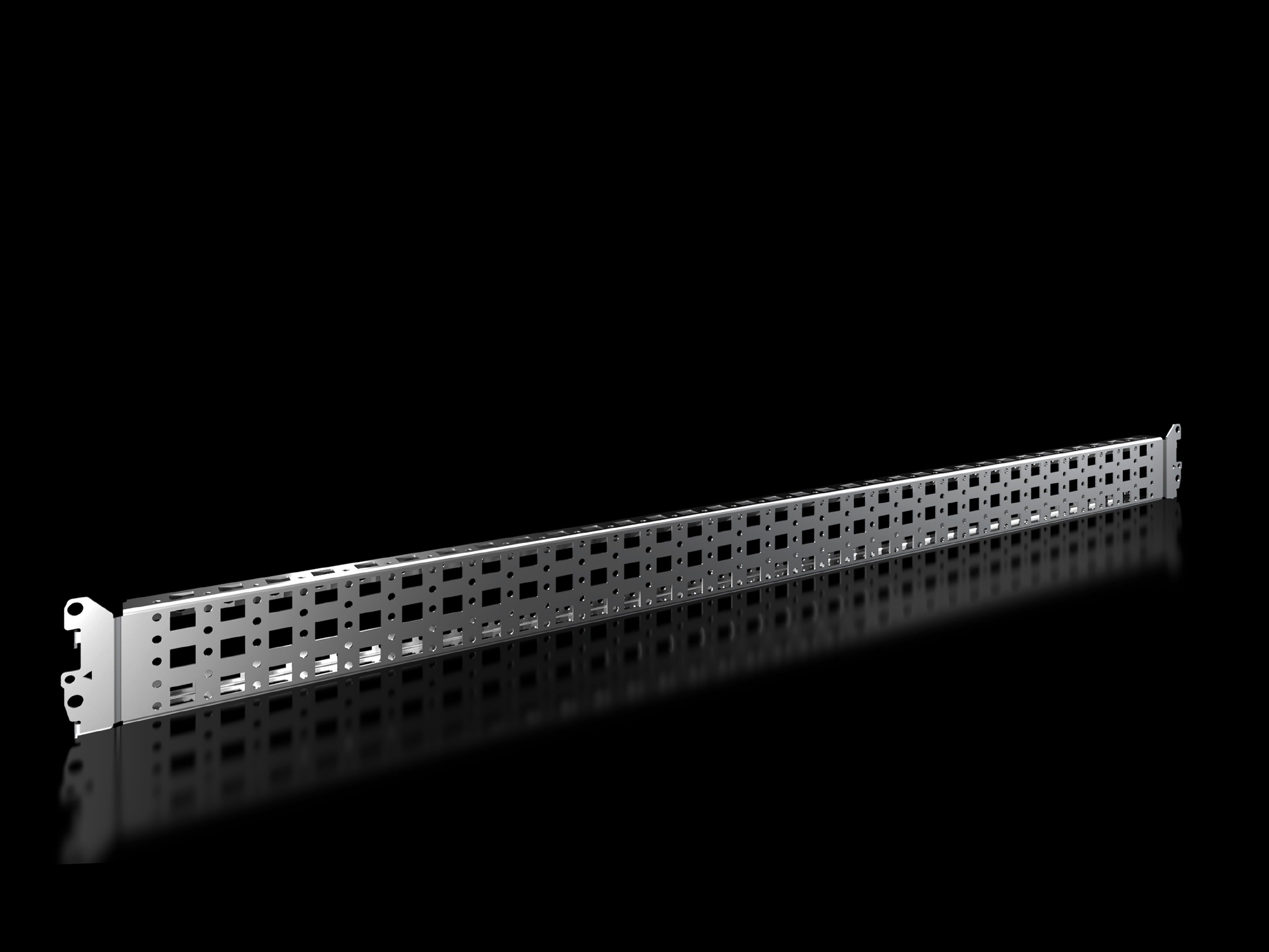

8617150 Rittal: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Article number
VX 8617.150
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width/depth 1000 mm, on the inner mounting level
VX SE installation options
In enclosure width 1000 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
AX installation options
In enclosure width/height 1000 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
To fit
Enclosure type:Â VX | VX IT | VX SE | AX | Suitable for width or height or depth:Â 1,000 mm
To fit
Base/plinth system VX
Packs of
4 pc(s).
Weight/pack
4.22 kg
Customs tariff number
73269098
EAN
4028177829152
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Flexible mounting interface: The punched section provides a mounting flange of 23 x 64 mm that enables variable interior installation on the inner mounting level. This reduces rework by aligning with standard system punchings and allows quick screw-fastening, delivering faster commissioning on VX, VX IT, VX SE, and AX enclosures. Durable construction and corrosion resistance: Made from sheet steel with a zinc-plated finish, it withstands factory environments and simplifies maintenance across 1000 mm wide enclosures. Complete kit with assembly parts: The supply includes all necessary assembly parts, eliminating separate procurement steps and ensuring compatibility with 4-pack packing. Versatile VX/ VX SE/ AX installation options: The accessory is designed for use in enclosure width/depth 1000 mm on the inner mounting level, with VX SE adaptor rails and AX rails available for seamless integration. Logistics and handling efficiency: Pack of four at 4.22 kg per pack aids stocking and reduces unpacking time; compatible with 1000 mm systems. Industry context: In practice, this punched section is a small but critical enabler for modular IP-rated enclosures, enabling engineers to implement changes without cabinet downtime.
Get a Quick Quote for a Rittal 8617150
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617150?
Enquire Now
FAQs
Yes. This punched section is designed for use in VX family enclosures and is compatible with VX, VX IT, VX SE, and AX systems at 1000 mm width. It installs on the inner mounting level and accepts the standard mounting flange, helping you adapt interior layouts without cabinet redesign.
Installation is simplified by system punchings: align the punched section with the enclosure’s punchings and screw-fasten. The kit includes assembly parts, and the solution works with VX installation options on inner mounting levels, ensuring a quick and secure interior fit in 1000 mm wide cabinets.
Best for variable interior installations in compact enclosures where interior components must be reconfigured over time. It supports inner mounting on 1000 mm wide VX or AX enclosures, enabling flexible layout changes for IT, control panels, or automation cabinets.
For VX SE, use the adaptor rail for VX compatibility on the inner mounting level to maintain alignment with the VX ecosystem. For AX, install with the appropriate interior rails or base configuration rail to support interior mounting. The specification covers these installation options for seamless integration.
By enabling quick interior reconfiguration with a 4-pack, assembly parts included, and a zinc-plated sheet steel build, it reduces field labor, downtime, and stock complexity. The result is faster commissioning, less rework, and improved long-term operational reliability in 1000 mm enclosures.
