Rittal VX 8617.180 Punched Section - Zinc-plated
Part Number: 8617180
Manufacturer
Rittal
Part number
8617180
Alt Part Number
VX 8617.180
Quick Summary
Rittal VX 8617.180 punched section enables variable interior mounting of the enclosure frame on inner mounting level for VX enclosures. Some projects struggle with rigid interior layouts that waste valuable space and hinder future changes. While the data lists ETIM 9 EC002620 and ECLASS 8.0 27189234 classifications, note that CE, IP ratings or SIL status are not specified here—verify against the official datasheet for certification details. This accessory improves interior flexibility, supports quick configuration with standard VX system punchings, and reduces downtime during rework. In practice, you gain faster install cycles and consistent assembly quality, while maintaining VX compatibility and scalable deployment across 1,600 mm wide/high configurations.
Product Information
Extended Description

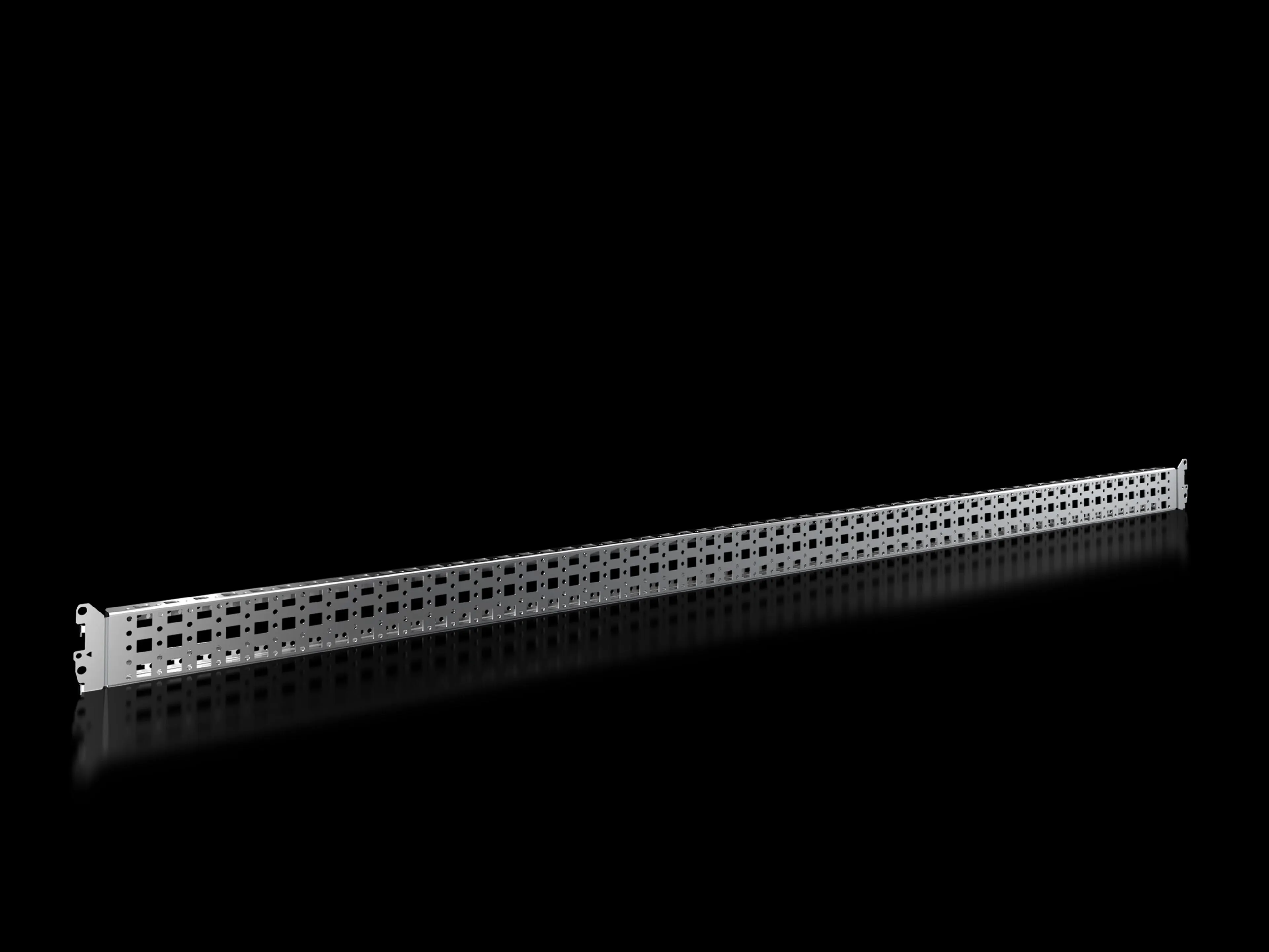

8617180 Rittal: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Article number
VX 8617.180
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure height 1600 mm, on the inner mounting level
VX SE installation options
In enclosure width 1600 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
To fit
Enclosure type: VX | VX IT | VX SE | Suitable for width or height or depth: 1,600 mm
To fit
Base/plinth system VX
Packs of
4 pc(s).
Weight/pack
6.92 kg
Customs tariff number
73269098
EAN
4028177829183
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Feature: Punched section with mounting flange 23 x 64 mm for inner mounting level. Business impact: Enables precise, secure interior mounting with minimal drilling, reducing rework and misalignment. Application: Used in VX enclosures to host interior frames with reliable positioning and fast screw-fastening. Long-tail keywords: inner mounting level, VX compatibility, sheet steel, zinc-plated, mounting flange 23 x 64 mm, system punchings. Feature: Simple locate-and-screw installation. Business impact: Cuts installation time and labor costs; supports repeatable assembly in production lines. Application: Suitable for VX, VX IT, and VX SE families with adaptor rails for VX compatibility. Long-tail keywords: system punchings, adaptor rail, assembly parts. Feature: Material and finish. Business impact: Zinc-plated sheet steel provides corrosion resistance and long service life in harsh environments. Application: Industrial enclosures in manufacturing facilities. Long-tail keywords: sheet steel, zinc-plated, corrosion resistance. Feature: Pack configuration and logistics. Business impact: 4-piece packs with 6.92 kg per pack simplify stocking and transport; includes assembly parts. Application: Useful for bulk installations and maintenance cycles. Long-tail keywords: packs of 4, weight/pack, assembly parts. Feature: VX compatibility and mounting options. Business impact: Aligns with VX enclosure height 1600 mm and width 1600 mm constraints; supports inner mounting level with adaptor rails. Application: Ideal for modular VX systems and future upgrades. Long-tail keywords: VX installation options, VX SE installation options, 1,600 mm compatibility.
