Rittal VX 8617.210 Punched Section - EC002620
Part Number: 8617210
Manufacturer
Rittal
Part number
8617210
Alt Part Number
VX 8617.210
Quick Summary
VX 8617.210 is a punched section enabling interior mounting on the VX enclosure inner level for compact installations. In many projects, rigid interior layouts waste space and slow maintenance, increasing downtime and total cost of ownership. Key industry classifications include ETIM EC002620 and ECLASS 27189234, while use with VX enclosures supports standard regulatory and procurement workflows. This component delivers installation flexibility, fast turnaround, and scalable design that aligns with modular cabinet strategies. Leveraging this part reduces field rework and simplifies future changes, helping engineers meet aggressive project timelines while delivering reliable, serviceable enclosures for critical applications. Designed for frequent reconfiguration and faster commissioning in data centers, energy, and automation installations.
Product Information
Extended Description

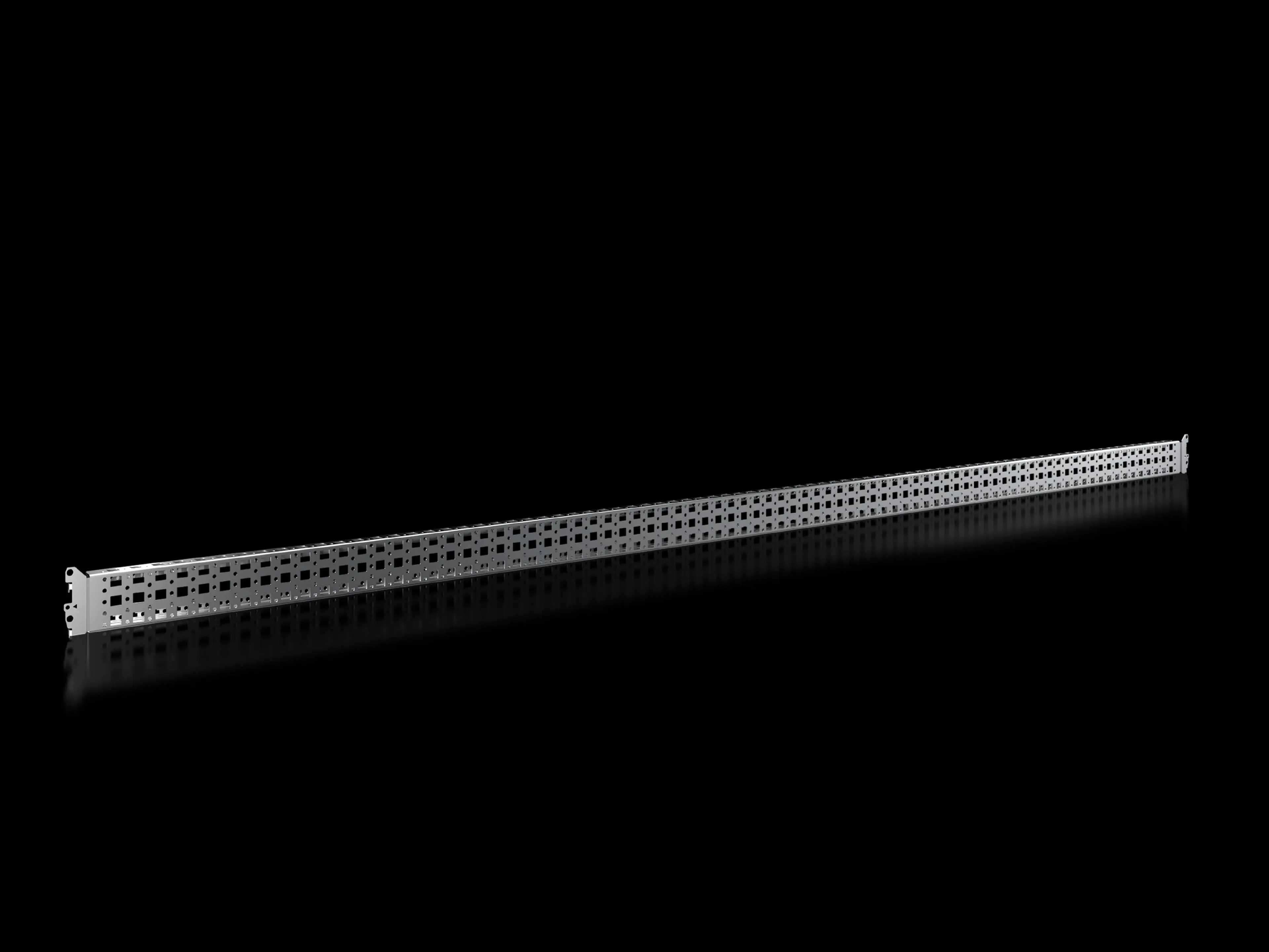

8617210 Rittal: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Article number
VX 8617.210
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level, and for installation in compact enclosures.
Benefits
Simply locate into the system punchings and screw-fasten
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure height 2200 mm, on the inner mounting level
To fit
Enclosure type: VX | VX IT | Suitable for width or height or depth: 2,200 mm
Packs of
4 pc(s).
Weight/pack
9.52 kg
Customs tariff number
73269098
EAN
4028177829213
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level
Feature: Packs of 4 pieces per carton. Business Impact: Improves handling and shipping efficiency, lowers total cost of ownership, and supports standard stocking practices. Application: Wholesale and distributor environments managing VX components.
Get a Quick Quote for a Rittal 8617210
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617210?
Enquire Now
FAQs
VX 8617.210 is designed to drop into the VX family enclosures, using the system punchings and screw-fastening method described by Rittal. It supports inner mounting levels at the 2200 mm enclosure height and works with widths/heights up to 2,200 mm. Compatibility is straightforward: align the 23 x 64 mm mounting flange with the VX punchings and secure with the supplied assembly parts.
The component is made from sheet steel with a zinc-plated finish, providing robust mechanical strength and corrosion resistance suitable for harsh industrial environments. Each pack contains four pieces, with a total weight of 9.52 kg per pack, facilitating handling and installation in multi-unit enclosures.
Yes. The 23 x 64 mm mounting flange supports precise interior mounting on the inner level, enabling flexible layouts within compact VX enclosures. The design minimizes wasted space and simplifies reconfiguration, which is advantageous for high-density installations where service access and maintenance need to be preserved.
This part aligns with industry classifications such as ETIM EC002620 and ECLASS 27189234, aiding procurement and system integration. While explicit CE or IP certifications are not listed in the provided data, the component adheres to standard Rittal installation practices and is designed for compatibility with the VX enclosure family.
Using VX 8617.210 reduces on-site assembly time by enabling quick, screw-fast mounting into system punchings, with the included assembly parts. The standardized pack size and durable zinc-plated steel reduce rework, downtime, and future upgrade effort, delivering a favorable return on investment through faster commissioning and improved ongoing maintenance readiness.
