Rittal VX 8617.360 VX Mounting Kit - Sheet Steel
Part Number: 8617360
Manufacturer
Rittal
Part number
8617360
Alt Part Number
VX 8617.360
Quick Summary
Rittal VX 8617.360 VX mounting kit enables back-to-back mounting plates for compact enclosure assemblies. Engineers often face space constraints and misalignment when expanding panels, and this kit standardizes spacing to simplify installs. The product uses sheet steel with zinc plating and passivation, aligning with ETIM 7.0 EC002625 and ECLASS 8.0 27189234 for consistent procurement and documentation. In practice, it accelerates cabinet builds, reduces mounting errors, and supports scalable control cabinets while remaining compatible with VX enclosures and common automation workflows.
Product Information
Extended Description

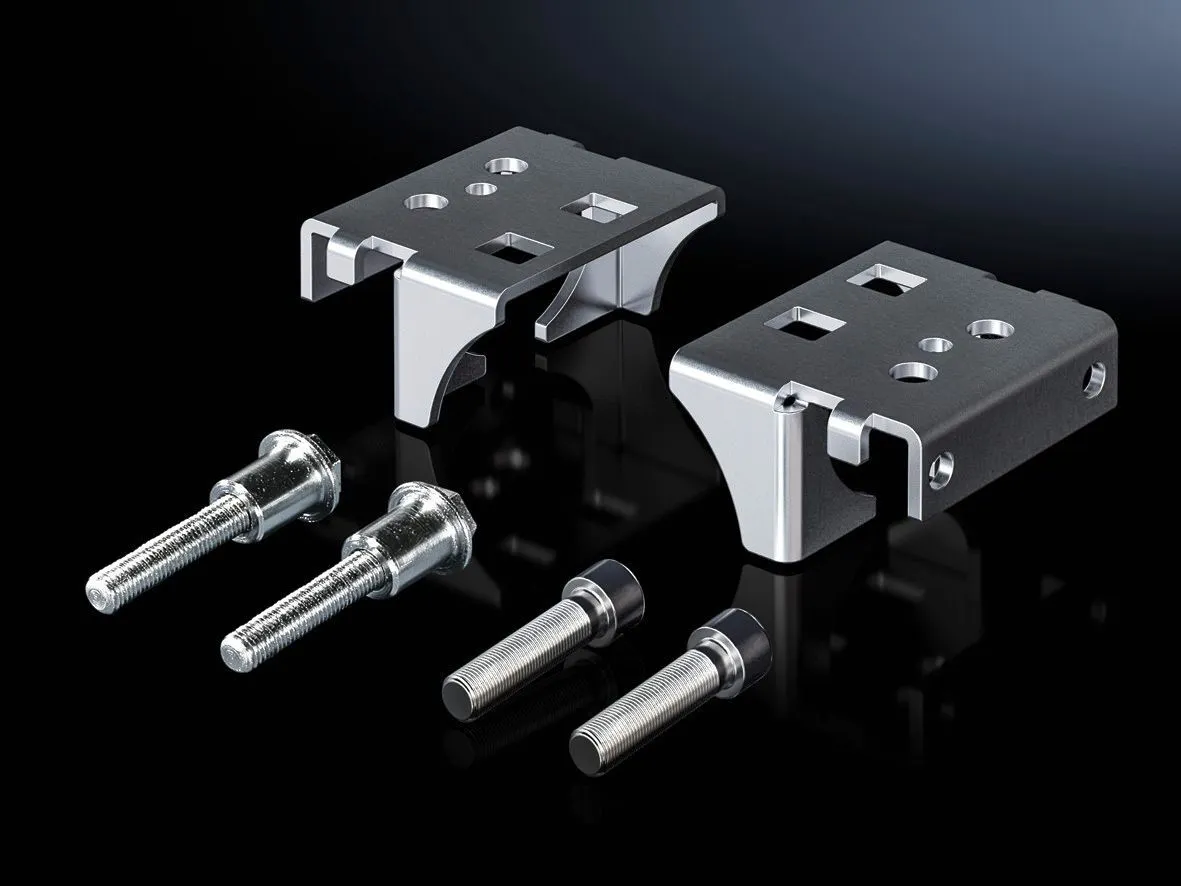

8617360 Rittal: VX Mounting kit, for mounting plates back-to-back
Article number
VX 8617.360
Product description
The minimum spacing between the mounting plates facilitates maximum assemblies on both mounting plates.
Material
Sheet steel
Surface finish
Zinc plated, passivated
Assembly instruction
A second mounting plate to fit the enclosure dimensions is required. See the list of Rittal spares online.
To fit
Enclosure type: VX
Packs of
1 pc(s).
Weight/pack
0.542 kg
PCF per pack (cradle-to-gate)
2.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177921696
ETIM 7.0
EC002625
ECLASS 8.0
27189234
Product description
VX Mounting kit, for mounting plates back-to-back
Feature: Minimum spacing between mounting plates facilitates maximum assemblies on both mounting plates. Business Impact: Increases mounting capacity per enclosure, reducing the need for extra plates or chassis and speeding up panel builds. Application: Ideal for control cabinets where space is at a premium and modularity is required. Feature: Sheet steel construction with zinc plating and passivation. Business Impact: Delivers robust durability, corrosion resistance, and long service life in demanding industrial environments. Application: Suitable for factory floors, automation rigs, and outdoor-rated installations with protected enclosures. Feature: Explicit to fit VX enclosures with a second mounting plate per enclosure. Business Impact: Simplifies installation planning, minimizes errors, and ensures consistent spacing across multiple units. Application: Streamlines large-scale VX system rollouts. Feature: Packaging and weight clarity: 1 pack, weight 0.542 kg; PCF 2.1 kg CO2 eq (Cat B). Business Impact: Supports accurate logistics, sustainability reporting, and cost-conscious shipping. Application: Useful for procurement calculations and lifecycle assessments. Feature: ETIM 7.0 EC002625 and ECLASS 8.0 27189234 alignment. Business Impact: Facilitates cross-system data handling, procurement integration, and regulatory traceability. Application: Helps engineers and buyers maintain compliant records during enclosure projects.
Get a Quick Quote for a Rittal 8617360
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617360?
Enquire Now
FAQs
The VX 8617.360 is designed specifically to mount plates back-to-back in VX enclosure families. It aligns with the VX mounting philosophy, ensuring consistent plate spacing, predictable assembly sequences, and repeatable results across multi-unit cabinets. The kit complements standard VX accessories, reducing integration risks and enhancing build speed for control panels and automation racks.
The mounting kit is manufactured from sheet steel and finished with zinc plating and passivation. This combination provides structural strength, improved corrosion resistance, and a durable surface suitable for electrical assemblies in industrial environments. These materials support long service life and reliable performance in harsh manufacturing settings.
Each order contains 1 pack of VX mounting kit components, with a weight of 0.542 kg per pack. This packaging supports straightforward logistics, simplifies stocking, and assists with accurate cost-per-assembly calculations for project planning and procurement documentation.
Yes. An additional mounting plate sized to fit the enclosure dimensions is required to complete back-to-back mounting for VX enclosures. The installation instruction specifies this requirement, helping technicians plan part counts, avoid mid-project delays, and ensure proper alignment across the installed panels.
The VX 8617.360 aligns with ETIM 7.0 EC002625 and ECLASS 8.0 27189234 classifications, aiding data-driven procurement. The catalog notes PCF of 2.1 kg CO2 eq (Cat B) per pack, supporting cradle-to-gate sustainability reporting and informed lifecycle assessments for industrial cabinet projects.
