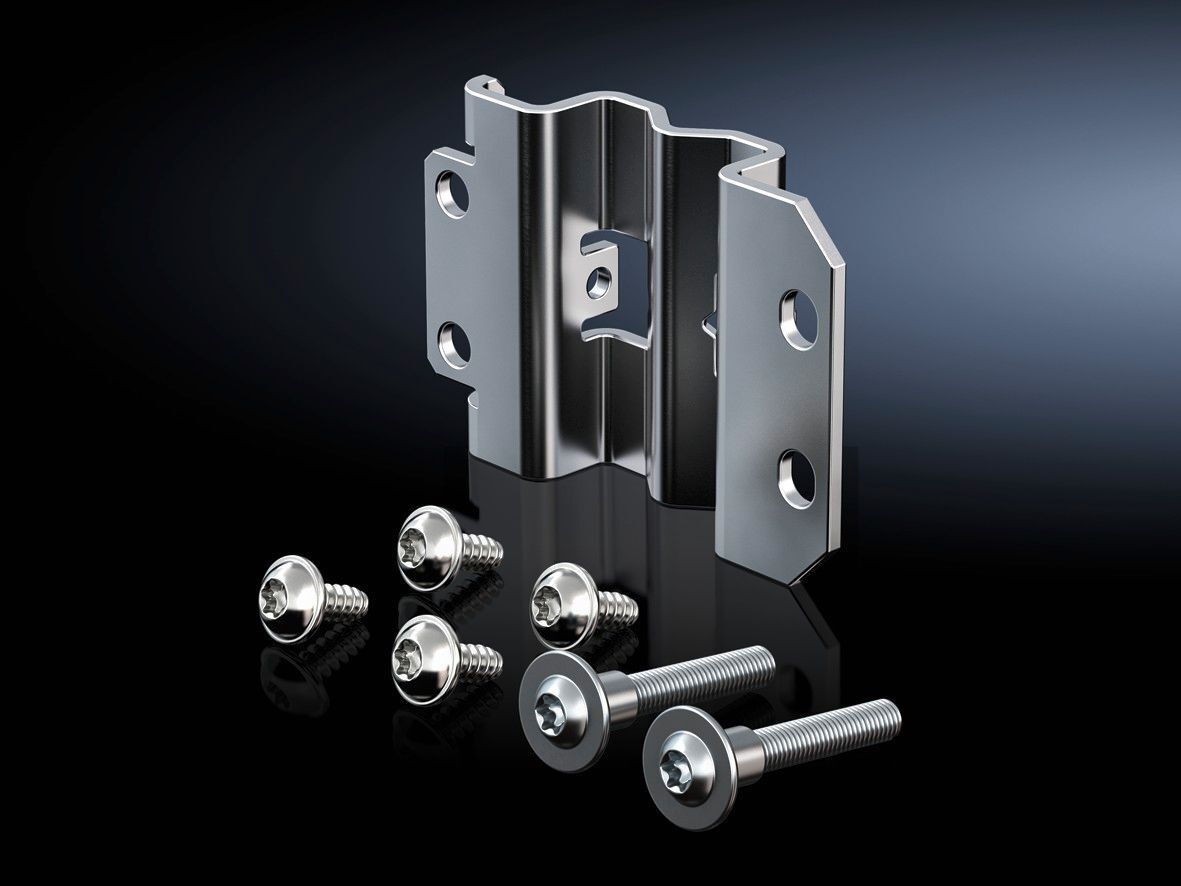

Rittal 8617500 VX Baying Bracket, Internal - IP 55
Part Number: 8617500
Quick Summary
Rittal 8617500 VX baying bracket, internal enables fast, secure baying of VX enclosure bays. It reduces installation challenges by offering versatile mounting from the front or the side at the baying point. With IP 55 protection and standardized classifications, it helps meet harsh-environment requirements while maintaining VX basing compatibility. The zinc‑plated sheet steel construction delivers durability in industrial environments, while the included baying seal and assembly parts simplify field work. This solution supports efficient procurement (pack of six) and aligns with common purchasing practices, delivering measurable reductions in installation time and lifecycle costs.
Product Information
Extended Description
8617500 Rittal: VX Baying bracket, internal
Article number
VX 8617.500
Benefits
Fast, secure installation either from the front or from the side
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Baying bracket, internal | Baying seal | Assembly parts
Note
1 pack is sufficient for one baying joint
To fit
Enclosure type:Â VX | VX IT
IP protection category to IEC 60 529
IP 55
Packs of
6 pc(s).
Weight/pack
1.47 kg
Customs tariff number
83024900
EAN
4028177919327
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
VX Baying bracket, internal
Feature → Business Impact → Application: Fast, front- or side-mountable baying bracket accelerates installation, reducing on-site labor and rework while preserving precise alignment across VX enclosures. Application: Ideal for control cabinets and machines with modular baying needs where panels are expanded or reconfigured over time. Feature → Business Impact → Application: Sheet steel with zinc‑plated finish provides robust mechanical strength and corrosion resistance, increasing longevity in demanding environments and lowering maintenance frequency. Application: Suitable for standard VX/VX IT enclosures in manufacturing plants and automation panels. Feature → Business Impact → Application: Supplied as a complete kit (baying bracket, baying seal, assembly parts), enabling faster procurement and fewer missing components, which shortens project timelines. Application: Effective for projects with tight schedules and multi-enclosure bays. Feature → Business Impact → Application: IP 55 protection ensures enclosure integrity against dust and water splashes, supporting regulatory compliance and uninterrupted operation in semi-exposed areas. Application: Supports installation near manufacturing floors or outdoor-adjacent panels. Feature → Business Impact → Application: Pack of six pieces (weight per pack 1.47 kg) simplifies logistics and stocking, reducing carrying costs and inventory fragmentation. Application: Streamlined warehousing for distributors and large install sites.
Get a Quick Quote for a Rittal 8617500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617500?
Enquire Now
FAQs
Yes. The VX 8617.500 baying bracket is designed to fit enclosure types VX and VX IT, enabling baying at the baying point with front or side mounting. The kit includes the baying bracket, baying seal, and assembly parts to complete a baying joint.
The bowing bracket is made from sheet steel with a zinc-plated finish and provides IP 55 protection, shielding against dust ingress and water spray. This combination supports reliable performance in semi-exposed industrial environments.
One pack covers one baying joint and each carton contains six brackets (Packs of 6 pc(s).). The pack includes the baying bracket, baying seal, and assembly parts to streamline installation and ensure complete baying hardware.
The VX 8617.500 aligns with standard industrial classifications, including ETIM 9 EC002622 and ECLASS 8.0 27189263, with an IP 55 protection rating per IEC 60 529. The EAN/GTIN supports accurate cataloging and procurement workflows.
By enabling fast, secure front- or side-mounted baying, installation time is reduced and consistency improves across multi-enclosure bays. This minimizes labor costs, reduces rework, and enhances lifecycle reliability for VX enclosure installations.
