Rittal VX 8617.501 Baying Block internal - IP55
Part Number: 8617501
Quick Summary
Rittal VX 8617.501 Baying Block internal enables precise baying at VX enclosure bays for scalable electrical assemblies. In tight installations, misaligned mounting can lead to collisions with installed equipment and costly rework; this baying block provides a flush surface that accommodates top mounting while protecting adjacent components. The solution carries UL 50E Type 1 certification for electrical safety and IP55 protection, reinforcing suitability in demanding environments. By simplifying baying, it speeds assembly, improves serviceability, and reduces field adjustments. For system integrators and panel builders, the VX baying block offers reliable compatibility with VX and VX IT enclosures, while supporting scalable expansion and consistent mounting quality.
Product Information
Extended Description

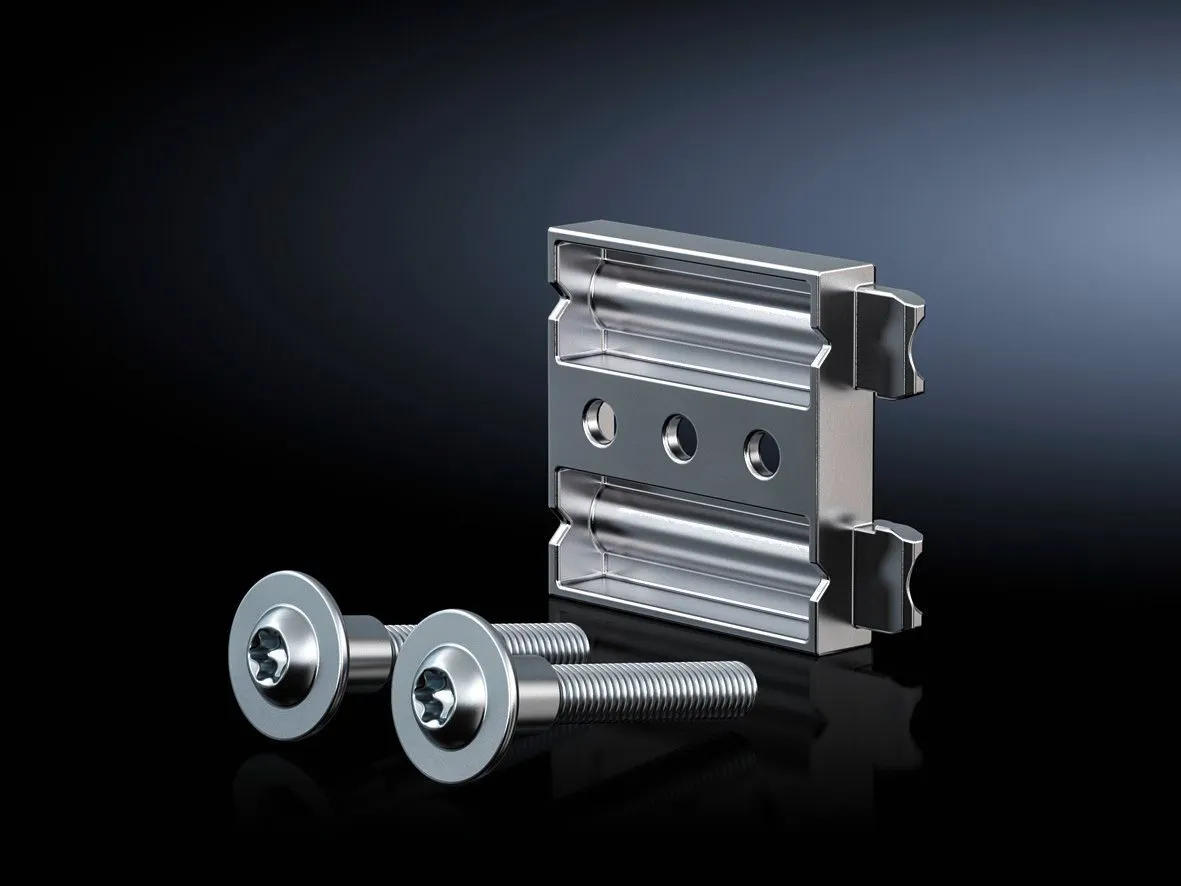

8617501 Rittal: VX Baying block, internal
Article number
VX 8617.501
Benefits
Side mounting creates a flush surface to the extrusion, suitable for top mounting, thus avoiding collisions with installed equipment
Material
Die-cast zinc
Supply includes
Baying block, internal | Baying seal | Assembly parts
Note
For baying enclosures with a width/depth > 800 mm, 2 packs are required for installation
To fit
Enclosure type: VX | VX IT
Type rating to UL 50E
Type 1
IP protection category to IEC 60 529
IP 55
Packs of
6 pc(s).
Weight/pack
0.978 kg
Customs tariff number
76169990
EAN
4028177919334
ETIM 9
EC002622
ECLASS 8.0
27189263
Product description
VX Baying block, internal
Feature: Die-cast zinc construction delivers rugged durability for frequent mounting changes. Business impact: reduces wear, extends service life in harsh environments; Application: fits VX/bays and supports long-term reliability. Feature: Side mounting creates a flush surface to the extrusion, enabling top mounting and preventing collisions with installed equipment. Business impact: simplifies layout planning, minimizes reworks, and improves clearance in dense control panels. Feature: Supplied as a complete kit (baying block, baying seal, assembly parts). Business impact: reduces sourcing time and installation errors, speeding project delivery. Feature: IP55 protection and UL 50E Type 1 rating provide safety and environmental compliance. Business impact: supports compliant panel builds in industrial settings. Feature: Packs of 6 with 0.978 kg per pack streamline logistics and stocking. Business impact: lowers freight cost, simplifies inventory for spare parts. Note: For enclosures wider than 800 mm, two packs are required, ensuring stable baying in larger systems.
