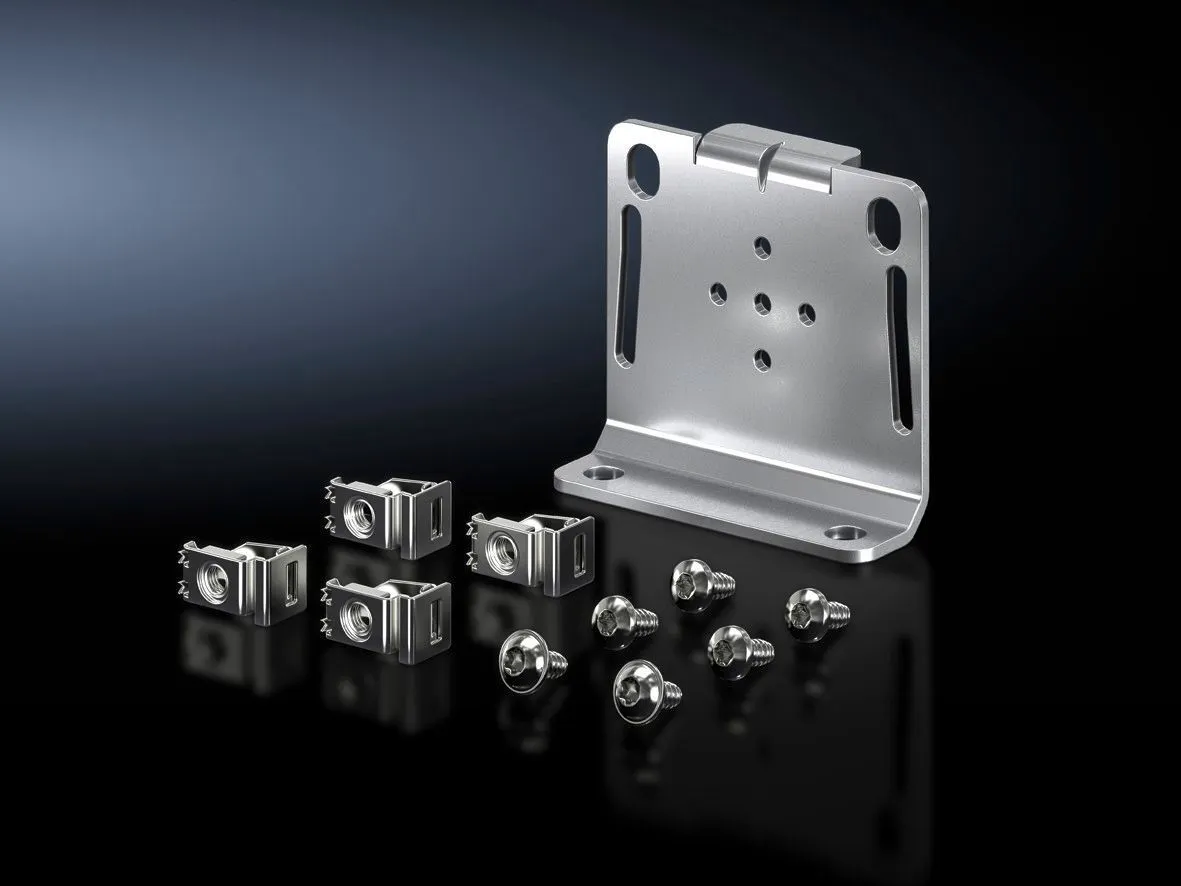

Rittal VX 8617.508 - VX angular baying bracket (EC002622)
Part Number: 8617508
Quick Summary
Rittal VX angular baying bracket VX 8617.508 provides a stable corner connection for bayed enclosures. A common challenge is corner misalignment that slows assembly and compromises enclosure rigidity during scale-ups. The design aligns with ETIM 9 EC002622 and ETIM 8 EC002622, and uses zinc-plated sheet steel to resist corrosion, while ECLASS 8.0 27189263 supports catalog integration. This bracket is supplied with assembly parts and is sold in packs of four, helping reduce stocking complexity and per-unit costs. By ensuring precise, durable connections, it delivers measurable improvements in install speed, long-term reliability, and overall lifecycle value for industrial control panels.
Product Information
Extended Description
8617508 Rittal: VX angular baying bracket
Article number
VX 8617.508
Product description
For stable connection in the corners of bayed enclosures.
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Packs of
4 pc(s).
Weight/pack
1.05 kg
Customs tariff number
73182900
EAN
4028177957633
ETIM 9
EC002622
ETIM 8
EC002622
ECLASS 8.0
27189263
Product description
VX angular baying bracket
Feature: Sheet steel construction with a zinc-plated finish. Benefit: Delivers robust, corrosion-resistant joints that maintain rigidity at the bayed enclosure corners, even in harsh industrial environments. Application: Ideal for electrical cabinets where long-term durability and dependable alignment are required. Feature: Supply includes assembly parts. Benefit: Reduces on-site sourcing steps and speeds up installation, lowering labor time and project risk. Application: Quick turn installs in new builds or upgrades. Feature: Packs of four with a weight of 1.05 kg per pack. Benefit: Simplifies procurement and logistics, lowering per-unit handling and shipping costs. Application: Suitable for modular bay configurations demanding consistent packaging. Feature: Compatibility with ETIM and ECLASS classifications (ETIM 9 EC002622, ETIM 8 EC002622, ECLASS 8.0 27189263). Benefit: Ensures seamless catalog integration and interchangeability across supplier ecosystems. Application: Fits standard enclosure bays in diverse industrial applications. Feature: Material and finish (sheet steel, zinc-plated) provide durable performance. Benefit: Extends service life, reduces maintenance intervals, and improves overall total cost of ownership. Application: Enclosures exposed to humidity, dust, or chemical exposure where protective coatings matter.
Get a Quick Quote for a Rittal 8617508
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617508?
Enquire Now
FAQs
Install by aligning the bracket at enclosure corners and using the supplied assembly parts; ensure correct orientation for a square, rigid corner. The VX 8617.508 is designed for quick, tool-efficient mounting in bayed configurations and improves repeatability across multiple cabinets in a row.
The bracket provides a reinforced corner, reducing flex and misalignment. Its zinc-plated sheet steel construction delivers corrosion resistance, contributing to longer service life and lower maintenance in challenging environments, while streamlining assembly and reducing rework.
Yes. The bracket is engineered for stable corner connections in bayed enclosures and comes in a 4-pack, with a weight of 1.05 kg per pack, supporting quick, scalable installations in dense cabinet layouts.
The product is classified under ETIM 9 EC002622 and ETIM 8 EC002622, and also listed in ECLASS 8.0 as 27189263, ensuring interoperability within industrial catalogs and ERP systems.
Faster installation due to included assembly parts, fewer misalignments, and long-term corrosion protection translate to reduced labor costs, lower maintenance needs, and improved total cost of ownership for bayed enclosure projects.
