Rittal VX 8617.510 Partial mounting plate 500x300
Part Number: 8617520
Manufacturer
Rittal
Part number
8617520
Alt Part Number
VX 8617.520
Quick Summary
Rittal VX 8617.510 Partial mounting plate is designed to expand enclosure capacity by supporting additional components inside the enclosure. Engineers often struggle with rigid layouts in compact VX enclosures, making future changes costly and time-consuming. This plate aligns with PCF Category B environmental data, ETIM EC000213, and ECLASS 27409216 standards, helping procurement teams maintain accurate data across catalogs and BOMs. By enabling flexible vertical or horizontal mounting options, it reduces rework and stock complexity, while its zinc-plated sheet steel construction delivers durable performance in industrial environments. The combination of a compact footprint and straightforward installation translates into faster project ramp-up and lower total cost of ownership, with scalable usage across VX, VX SE, and PC enclosure families.
Product Information
Extended Description

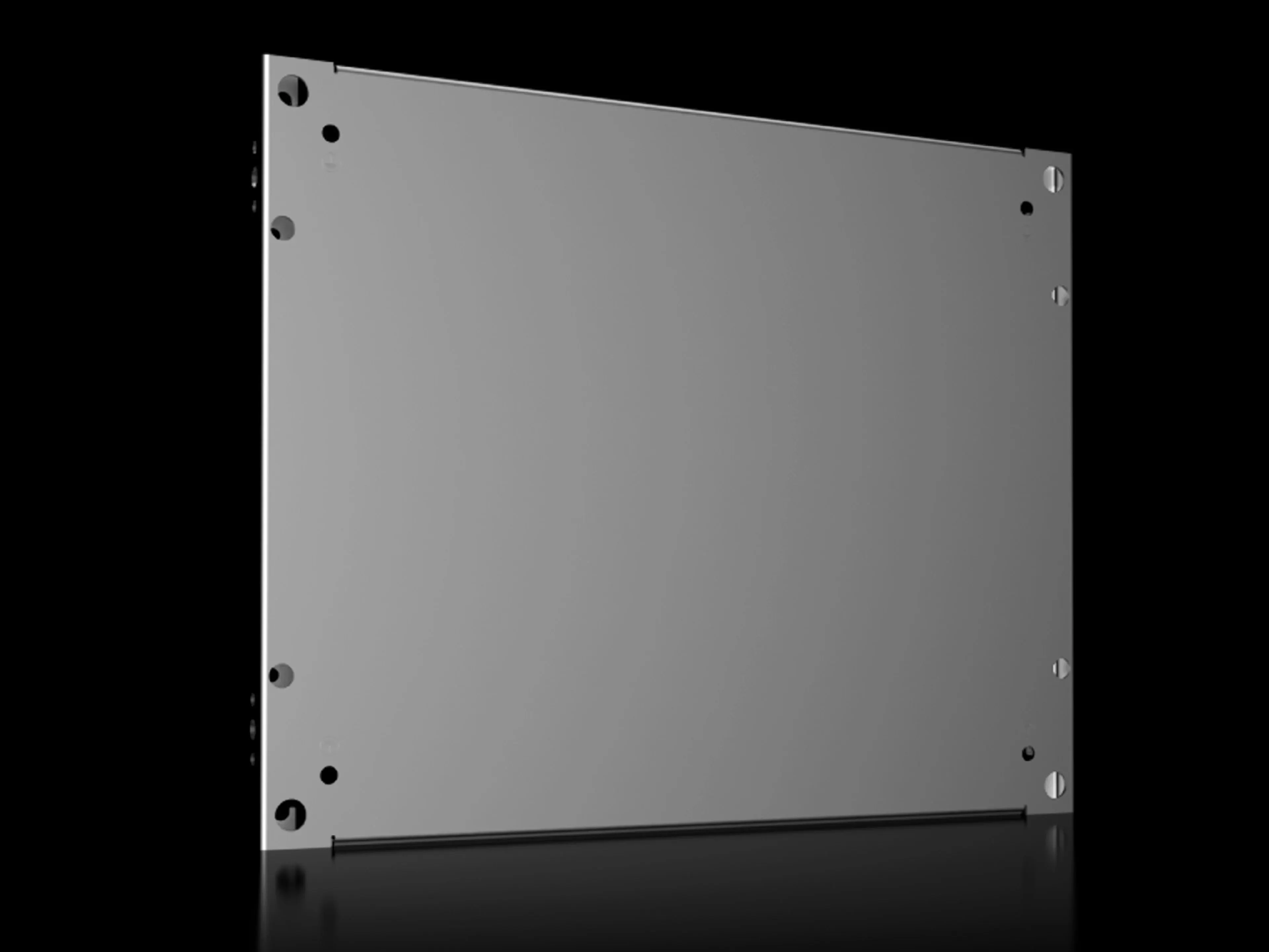

8617520 Rittal: VX Partial mounting plate, dimensions: 500x400 mm
Article number
VX 8617.520
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
600 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 500 mm | Depth: 400 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 600 mm | Depth: = 500 mm | = 600 mm
Packs of
1 pc(s).
Weight/pack
5.66 kg
PCF per pack (cradle-to-gate)
21.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177919372
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 500x400 mm
Feature: Dimensions 500 x 300 mm and a 2.5 mm sheet steel base. Business Impact: Provides a stable, rigid mounting plane that supports heavier components without flex. Application: Ideal for expanding interior layouts in VX, VX SE, and PC enclosures. Feature: Installation options allow vertical or horizontal mounting. Business Impact: Delivers flexible internal configurations, reducing the need for additional brackets and simplifies site adaption. Application: Use as an upright mounting surface or horizontal base to match project needs. Feature: Zinc-plated finish with included assembly parts. Business Impact: Improves corrosion resistance in harsh environments and speeds up commissioning with ready-to-install hardware. Application: Suitable for industrial settings where durability and quick assembly matter. Feature: Compatibility with multiple VX family enclosures. Business Impact: Enables common parts strategy and faster tech refreshes. Application: Works with VX, VX SE, and PC enclosures; adaptor rail VX is required for installing in VX SE, PC, IW. Feature: Environmental and data alignment. Business Impact: PCF per pack (16.8 kg CO2 eq, Category B) and standardized data (ETIM EC000213, ECLASS 27409216) support sustainability reporting and procurement processes. Application: Streamlines BOM creation and lifecycle management.
Get a Quick Quote for a Rittal 8617520
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617520?
Enquire Now
FAQs
Yes. The VX 8617.510 is designed to fit VX, VX SE, and PC enclosure families. It uses a 500x300 mm footprint and requires an adaptor rail for specific VX SE and PC installations. The plate supports vertical or horizontal mounting, enabling flexible interior layouts without modifying the enclosure frame.
Key specs: dimensions 500x300 mm, material sheet steel 2.5 mm, surface zinc-plated, weight 4.42 kg per unit. It ships with assembly parts and is rated to fit door widths up to 600 mm. These values ensure a robust mounting platform suitable for additional components inside industrial enclosures.
The plate excels in flexible internal configurations for enclosures VX, VX SE, and PC. It serves as a universal mounting plane for relays, terminals, or busbars, and its upright or base installation options support both vertical mounting surfaces and horizontal bases, reducing the need for additional brackets and simplifying future changes.
VX 8617.510 aligns with ETIM EC000213 and ECLASS 27409216 data standards, and has PCF category data reporting (16.8 kg CO2 eq per pack, category B). For procurement, this means consistent data across catalogs, BOMs, and sustainability reporting, improving data quality and lifecycle transparency.
Using VX 8617.510 reduces installation time by providing a ready-made mounting plane with included assembly parts and dual mounting options. Its compatibility with multiple VX enclosures minimizes accessory needs, lowers rework, and supports scalable layouts, resulting in lower lifecycle costs and improved maintenance efficiency in industrial environments.
