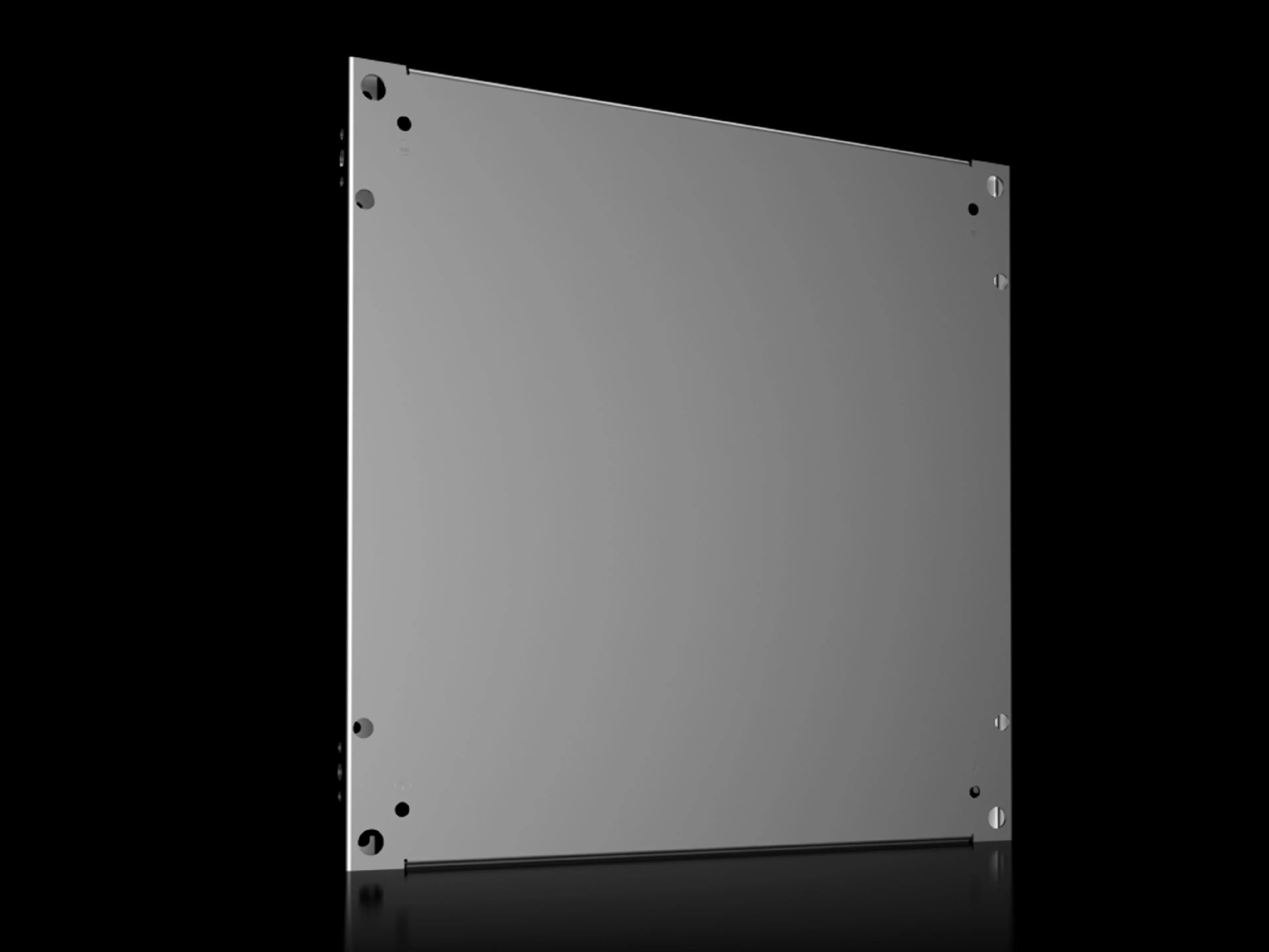

Rittal VX 8617.530 Partial Mounting Plate - 500x500
Part Number: 8617530
Manufacturer
Rittal
Part number
8617530
Alt Part Number
VX 8617.530
Quick Summary
Rittal VX 8617.530 partial mounting plate enables flexible internal mounting for VX enclosures. It helps you fit additional components without enlarging the cabinet, reducing rework and downtime. Designed for European control cabinets with standard CE expectations and industry classifications such as ETIM EC000213 and ECLASS 27409216, this zinc‑plated 2.5 mm sheet steel accessory ensures durability and compatibility. In practice, it supports a 500x500 mm footprint and is compatible with VX, VX SE, and PC families, delivering faster assembly and a lower total cost of ownership through standardized parts and straightforward installation. This makes it a reliable choice for modular control panel expansion and future-ready enclosure customization.
Product Information
Extended Description
8617530 Rittal: VX Partial mounting plate, dimensions: 500x500 mm
Article number
VX 8617.530
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
600 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 500 mm | Depth: 500 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 600 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
6.38 kg
PCF per pack (cradle-to-gate)
24.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177919389
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 500x500 mm
Feature: Material and finish—sheet steel 2.5 mm with zinc plating. Business impact: Provides corrosion resistance and structural stability in harsh industrial environments, reducing maintenance and replacement costs. Application: Ideal for long-term use inside VX enclosures where mounting strength is critical for added components. Feature: Dimensions and weight—500x500 mm, 6.38 kg per pack. Business impact: Enables compact layout optimization without increasing enclosure footprint, improving space utilization and workflow efficiency. Application: Use in compact control cabinets with tight component density requirements. Feature: Installation options—upright vertical mounting surface or flat horizontal base. Business impact: Flexible installation supports varied cabinet configurations, accelerating project timelines. Application: Enables rapid reconfiguration during upgrades or relocations. Feature: Compatibility notes—Adaptor rail VX required for VX SE, PC, IW installations. Business impact: Prevents incorrect accessory choices, reducing model mismatch risk. Application: Ensures correct integration in mixed enclosure ecosystems. Feature: Supply includes—assembly parts. Business impact: Reduces sourcing steps and speeds up onboarding for assembly technicians. Application: Streamlines kit-based installations and standard maintenance.
Get a Quick Quote for a Rittal 8617530
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617530?
Enquire Now
FAQs
The VX 8617.530 partial mounting plate is designed to fit VX family enclosures and is compatible with VX SE and PC configurations when the adaptor rail VX is used. This ensures flexible accommodation of additional components inside the cabinet without compromising space or accessibility.
By providing a stable 500x500 mm platform inside the enclosure, it allows installers to mount boards, terminal blocks, and other components without increasing cabinet depth. The zinc-plated steel construction delivers durability in demanding environments, reducing rework and extending service life.
Yes. The plate is specified to fit enclosures of VX, VX SE, and PC types with width and depth compatible to 600 mm in the to-fit guidance, while the 500x500 mm platform provides flexible internal mounting without altering external dimensions.
The plate is made from sheet steel with a thickness of 2.5 mm and finished with zinc plating for corrosion resistance. This combination offers robust mechanical strength and protection in industrial environments, helping to extend component life and reduce maintenance.
The supply includes assembly parts for straightforward installation. Note that for VX SE, PC, or IW installations, an adaptor rail VX is required to enable proper mounting. This helps prevent compatibility issues and ensures a reliable, code-compliant setup.
