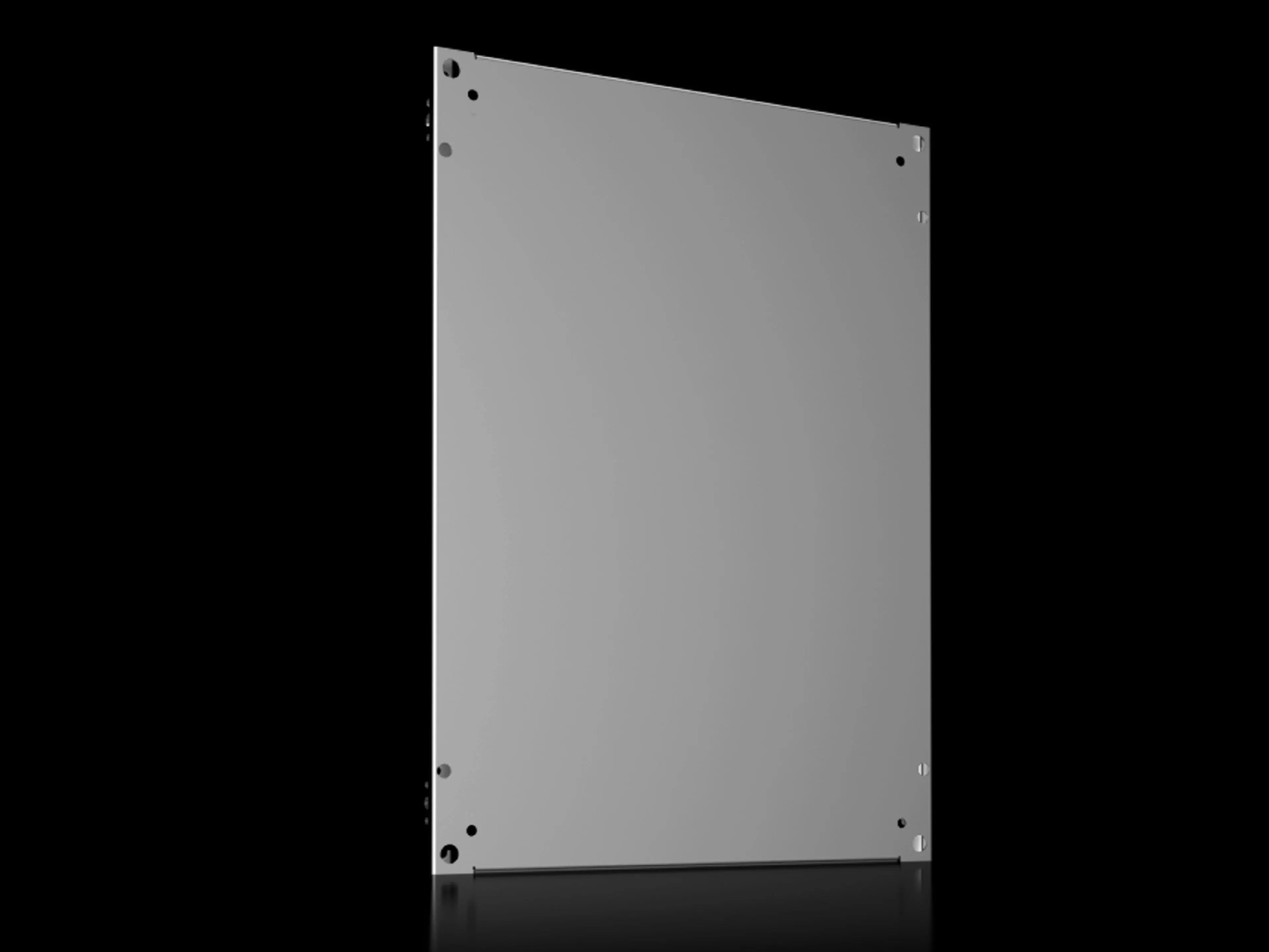

Rittal 8617540 VX Partial mounting plate - 500x700 mm
Part Number: 8617540
Manufacturer
Rittal
Part number
8617540
Alt Part Number
VX 8617.540
Quick Summary
Rittal 8617540 VX Partial mounting plate is designed to add components inside enclosures and create flexible mounting options. Many projects struggle with adding components without sacrificing space, access, or airflow, and this plate addresses that challenge. It aligns with industry classifications such as ETIM EC000213 and ECLASS 27409216, plus practical zinc-plated steel construction for durability. The solution supports VX, VX SE, and PC enclosures, enabling easy vertical mounting or flat base installation for scalable automation layouts. Its 500x700 mm footprint fits many standard VX/PC doors and supports efficient enclosure planning for faster deployments and predictable install times in busy facilities.
Product Information
Extended Description
8617540 Rittal: VX Partial mounting plate, dimensions: 500x700 mm
Article number
VX 8617.540
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
600 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 500 mm | Depth: 700 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 600 mm | = 800 mm | Depth: = 600 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
9.22 kg
PCF per pack (cradle-to-gate)
35.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177919396
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 500x700 mm
Feature → Flexible mounting platform for additional components. Business Impact → Maximizes enclosure usage and modularity, enabling diverse automation configurations. Application → Ideal for VX, VX SE, and PC enclosures where space optimization is critical. Feature → Durable construction with sheet steel 2.5 mm and zinc-plated finish. Business Impact → Enhances longevity and corrosion resistance in harsh industrial environments, reducing replacement costs. Application → Suitable for control panels in manufacturing and process environments. Feature → Installation options allow mounting upright as a vertical surface or flat as a horizontal base. Business Impact → Simplifies retrofits and layout changes, saving installation time and labor. Application → Supports flexible installation during system upgrades or expansions. Feature → Precise dimensions and compatibility (500x700 mm; to fit doors 600 mm wide; supports VX, VX SE, PC). Business Impact → guarantees a reliable fit and straightforward integration with existing VX/PC cabinets. Application → Useful for standard enclosure families and common width/depth configurations. Feature → Logistics and sustainability considerations (1 pc per pack; 9.22 kg; assembly parts included; CO2e calculator value). Business Impact → Streamlines procurement, reduces waste, and aligns with green initiatives in manufacturing environments. Application → Effective for project planning and lifecycle cost management.
Get a Quick Quote for a Rittal 8617540
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617540?
Enquire Now
FAQs
The VX 8617.540 plate is designed to fit Rittal VX, VX SE, and PC enclosure families. It can be mounted vertically as a surface or horizontally as a base. Note that an adaptor rail VX is required when installing in VX SE, PC, or IW variants to ensure secure attachment and proper alignment with enclosure doors and mounting rails.
The plate is fabricated from sheet steel with a 2.5 mm thickness and a zinc-plated finish for corrosion resistance. It measures 500 mm in width and 700 mm in depth, designed to fit a 600 mm door width and integrate with standard VX/PC enclosure configurations.
The part adheres to industry classification schemes, including ETIM 9 EC000213 and ECLASS 8.0 27409216, with additional attributes such as zinc plating for durability. While not a safety certification, these classifications help with procurement, cataloging, and lifecycle planning for industrial automation projects.
By enabling flexible internal mounting and faster retrofits, the plate reduces installation time and labor costs. It also improves space utilization inside the enclosure, reduces wiring clutter, and simplifies future expansions, contributing to lower total cost of ownership over the system lifecycle.
Packs are sold as 1 piece per order, with assembly parts included. The weight per pack is 9.22 kg, and the product carries a GTIN of 4028177919396. For VX SE, PC, or IW installations, ensure the adaptor rail VX is available to complete the mounting configuration.
