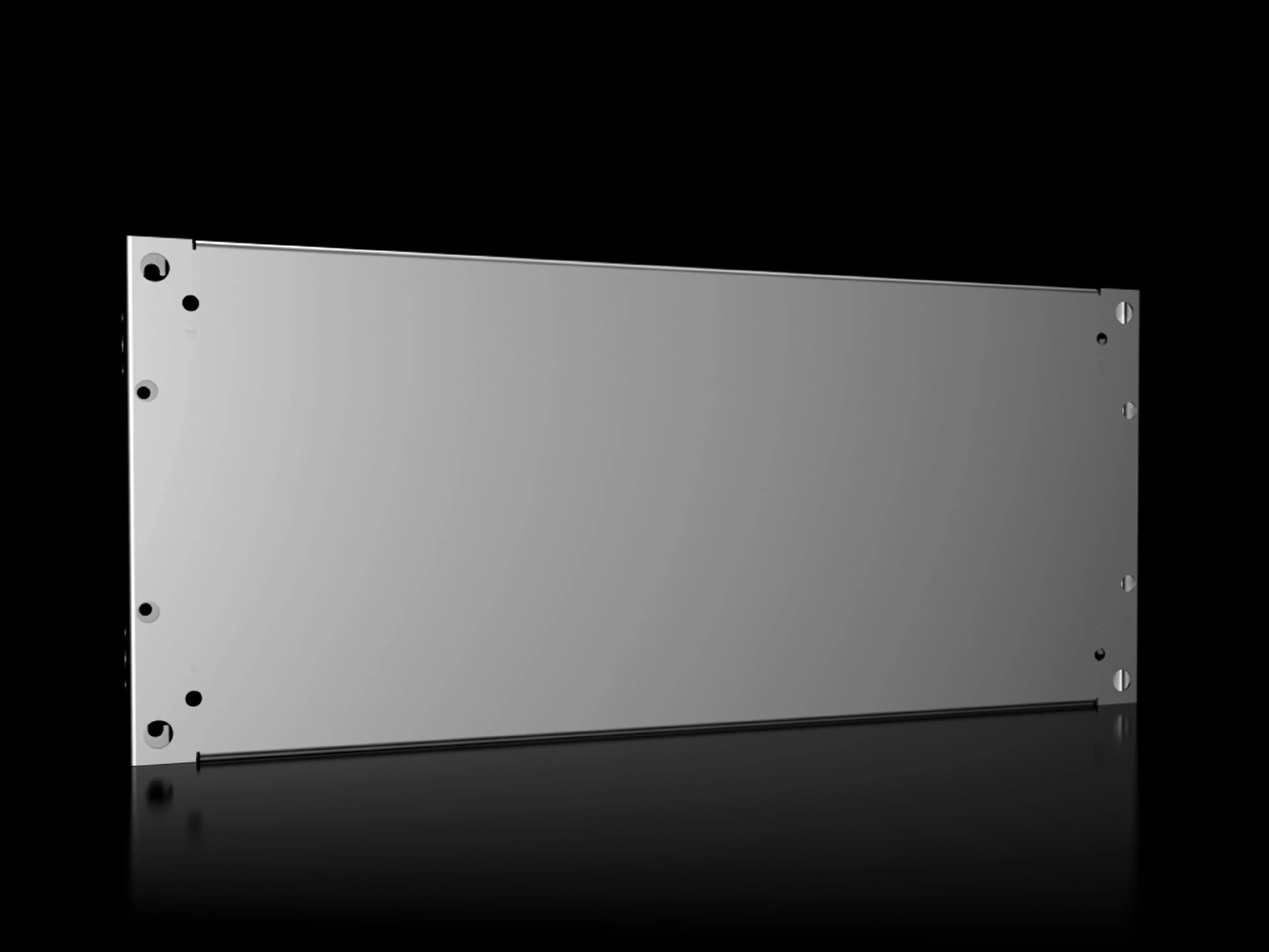

Rittal VX 8617.560 Partial mounting plate - Zinc-plated
Part Number: 8617560
Manufacturer
Rittal
Part number
8617560
Alt Part Number
VX 8617.560
Quick Summary
VX partial mounting plate enables flexible component mounting inside Rittal enclosures for modular control panels. This accessory addresses cramped layouts by providing a dedicated platform for additional components, supporting future expansion without redesign. While the data does not list CE or IP ratings, the plate uses 2.5 mm sheet steel with a zinc-plated finish and is designed for compatibility across VX, VX SE, and PC enclosure families. This combination delivers reliable mechanical support while reducing enclosure redesign costs. In practice, it translates to faster assembly, easier maintenance, and improved traceability for industrial automation projects, making it a valuable enclosure accessory for engineers and procurement teams alike.
Product Information
Extended Description
8617560 Rittal: VX Partial mounting plate, dimensions: 700x300 mm
Article number
VX 8617.560
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
800 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 700 mm | Depth: 300 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 400 mm | = 800 mm | Depth: = 400 mm | = 800 mm
Packs of
1 pc(s).
Weight/pack
5.78 kg
PCF per pack (cradle-to-gate)
22 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177919419
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 700x300 mm
Feature → Business Impact → Application: The VX 8617.560 is a 700x300 mm partial mounting plate made from 2.5 mm sheet steel with a zinc-plated surface. This combination provides robust mechanical support while resisting corrosion in industrial environments, enabling longer service life for mounted components and reduced replacement costs. Business impact: increased enclosure reliability and lower total cost of ownership due to durable construction and straightforward reconfiguration. Application: ideal for adding PLC modules, terminal blocks, or small control devices inside VX, VX SE, or PC enclosures, with the option to install it upright as a vertical mounting surface or flat as a horizontal base, accelerating panel upgrades without enclosure redesign. Feature → Compatibility and installation advantages → Application: Adaptor rail VX is required for installing in VX SE, PC, IW; installation options support easy integration into existing layouts. This translates to faster commissioning, minimal downtime, and scalable control architectures. Feature → Sustainability and efficiency → Application: Packs of 1 with weight 5.78 kg and PCF 22 kg CO2 eq (Cat B) demonstrate a compact, efficient component for sustainable manufacturing. The 700x300 mm footprint fits a wide range of interior layouts, enabling cleaner wiring schemes and improved thermal management while meeting standard enclosure widths of 800 mm and door compatibility.
