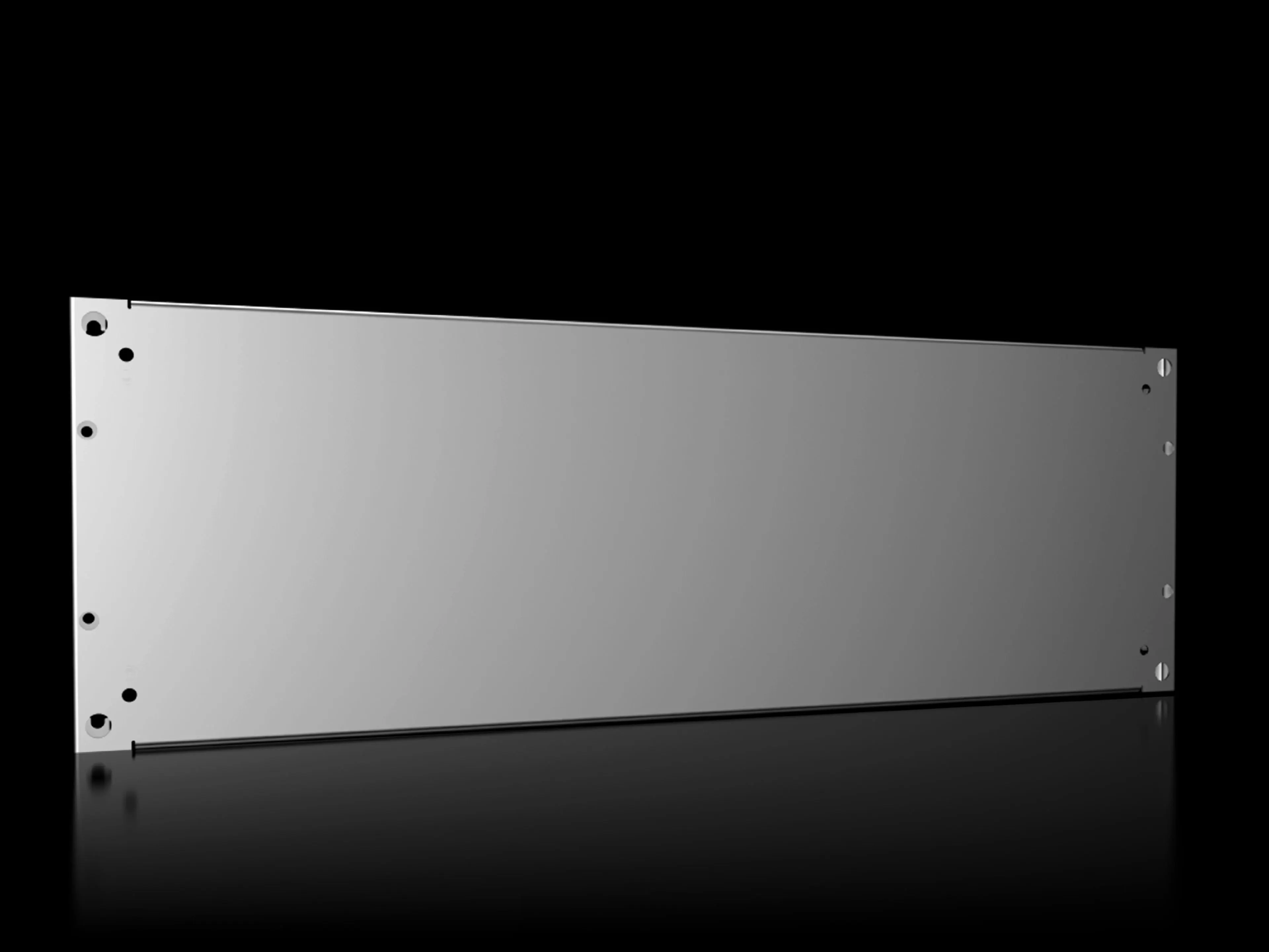

Rittal VX 8617.590 Partial mounting plate - Zinc-plated
Part Number: 8617590
Manufacturer
Rittal
Part number
8617590
Alt Part Number
VX 8617.590
Quick Summary
Rittal VX 8617.590 Partial mounting plate enables flexible internal mounting for VX, VX SE, and PC enclosures. When space is tight or component layouts shift, engineers often struggle with rigid mounting options and misalignment. In this context, common certification considerations include industry standards and safety requirements, with attention to factors like CE marking and IP/SIL implications for critical applications. This accessory provides upright or flat installation versatility, ships with assembly parts, and helps standardize mounting across multiple enclosure types, delivering faster deployment, reduced customization, and improved change-management for your enclosure projects.
Product Information
Extended Description
8617590 Rittal: VX Partial mounting plate, dimensions: 900x300 mm
Article number
VX 8617.590
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
1,000 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 900 mm | Depth: 300 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 400 mm | = 1,000 mm | Depth: = 400 mm
Packs of
1 pc(s).
Weight/pack
6.74 kg
PCF per pack (cradle-to-gate)
25.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177919440
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 900x300 mm
Feature: Flexible mounting surface dimensions of 900 x 300 mm. Business Impact: Enables versatile component placement, reducing the need for custom fabrication and accelerating project timelines. Application: Ideal for VX, VX SE, and PC enclosures where internal space must accommodate varying components. Feature: Sheet steel construction at 2.5 mm with zinc-plated finish. Business Impact: Delivers robust mechanical strength and corrosion resistance in harsh environments, lowering maintenance costs. Application: Suitable for industrial environments with exposure to dust and moisture where enclosure longevity matters. Feature: Weight 6.74 kg per pack. Business Impact: Manageable weight for installation without requiring heavy lifting equipment, improving install efficiency. Application: Field and assembly teams benefit from easier handling during retrofits. Feature: Installation options for vertical mounting surface or flat base. Business Impact: Enhances layout flexibility, enabling both door-side mounting and base integration to optimise space usage. Application: Facilitates adaptable configurations in variable plant layouts. Feature: Compatibility note adaptor rail VX for VX SE, PC, IW. Business Impact: Ensures seamless integration with specific VX accessory ecosystems, reducing complexity and spare-parts needs. Application: Streamlines upgrades in mixed-VX environments. Feature: Pack includes assembly parts. Business Impact: Cuts procurement steps and speeds alignment with existing enclosure hardware. Application: Reduces time-to-install during retrofit projects. Feature: PCF 25.7 kg CO2 eq (Cat B) cradle-to-gate. Business Impact: Supports sustainability accounting and responsible sourcing decisions. Application: Useful for lifecycle assessments and green procurement programs.
Get a Quick Quote for a Rittal 8617590
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617590?
Enquire Now
FAQs
The VX 8617.590 partial mounting plate provides a stable 900x300 mm platform that can be mounted vertically as a surface or laid flat as a base, enabling flexible component placement inside VX, VX SE, and PC enclosures. It ships with assembly parts for straightforward installation and supports both upright and base configurations to suit evolving layouts.
Consider a plate width of 900 mm and depth of 300 mm to match the 900x300 mm specification. It fits enclosure types VX, VX SE, and PC, with a door width accommodation of 1000 mm. Note that an adaptor rail VX is required for installing in VX SE, PC, IW, ensuring proper mounting compatibility across the VX family.
You can install the plate upright as a vertical mounting surface or flat as a horizontal base. This flexibility enables efficient space management, easier access for maintenance, and better cable routing. The option to use the adaptor rail when integrating with VX SE or PC configurations further streamlines multi-vendor deployments.
As a mounting accessory, the plate is designed to complement enclosure integrity without inherently changing enclosure IP ratings or safety certifications. Ensure installation follows the enclosure manufacturer guidelines and applicable regulatory requirements for your application. For safety-critical projects, verify SIL-related allowances and IP considerations in your system design.
The plate weighs 6.74 kg per pack and is sold as a single piece with assembly parts. It has a cradle-to-gate PCF of 25.7 kg CO2 eq (Cat B), aiding lifecycle assessments. Packaging and parts compatibility simplify procurement and waste reduction, supporting green procurement goals in modern automation projects.
