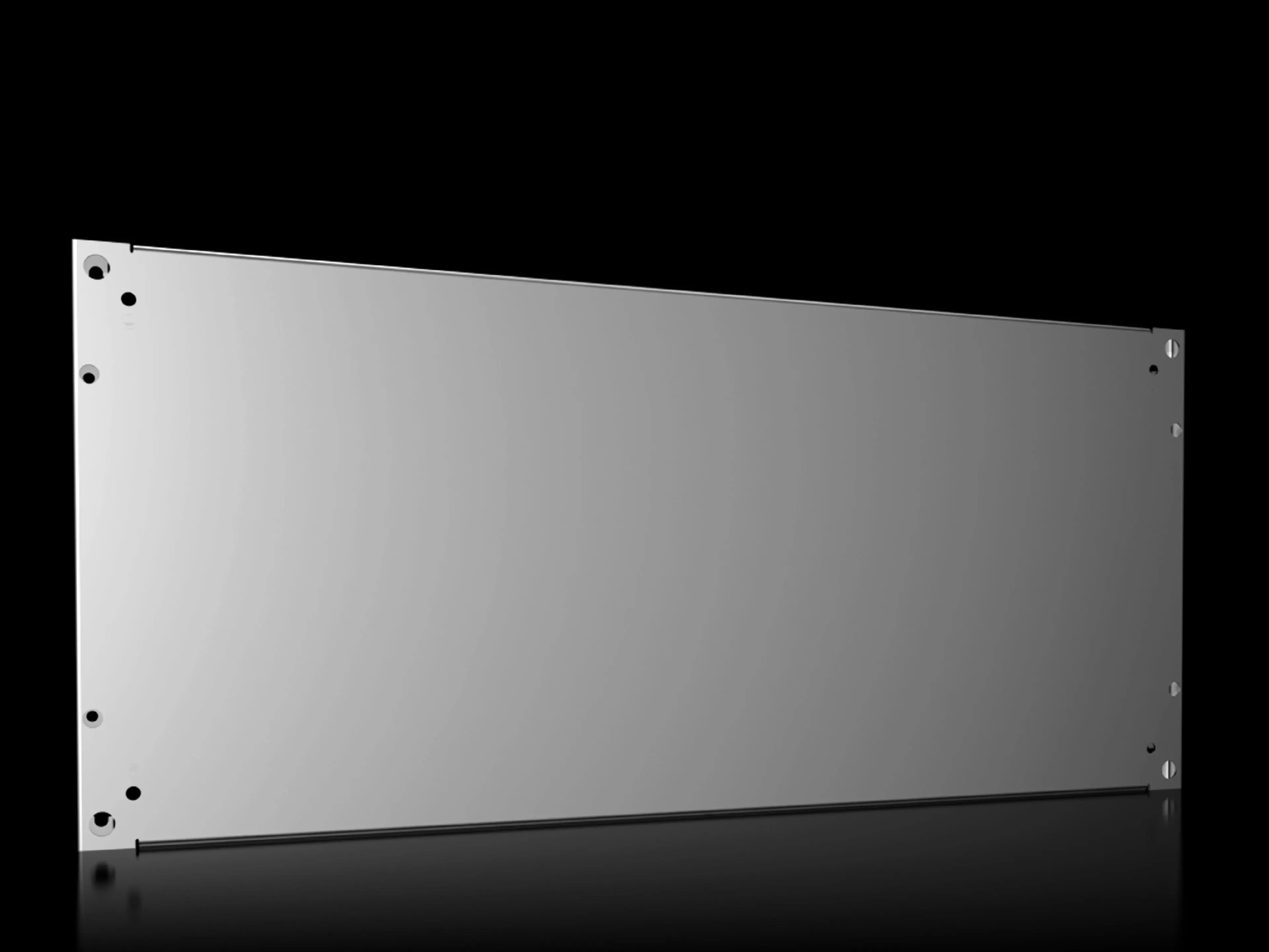

Rittal VX 8617.600 Partial mounting plate - Zinc-plated
Part Number: 8617600
Manufacturer
Rittal
Part number
8617600
Alt Part Number
VX 8617.600
Quick Summary
VX 8617.600 Partial mounting plate from Rittal is a flexible platform for adding components inside VX, VX SE, and PC enclosures. It addresses the common challenge of limited internal mounting space by providing a rugged, configurable mounting surface that can be installed upright as a vertical mount or laid flat as a horizontal base. While the data does not list SIL, CE, or IP ratings, the specification references industry classifications and an environmental cradle-to-gate PCF; ETIM 9 EC000213 and ECLASS 8.0 27409216 provide standardized identification, and the Cat B PCF of 33.6 kg CO2 eq supports sustainability reporting. This combination supports repeatable installations, simplifies procurement, and improves retrofit scalability for automation projects.
Product Information
Extended Description
8617600 Rittal: VX Partial mounting plate, dimensions: 900x400 mm
Article number
VX 8617.600
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
To fit door width
1,000 mm
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 900 mm | Depth: 400 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 1,000 mm | Depth: = 500 mm
Packs of
1 pc(s).
Weight/pack
8.81 kg
PCF per pack (cradle-to-gate)
33.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94032080
EAN
4028177919457
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 900x400 mm
Feature: 900x400 mm mounting footprint provides ample space for additional components. Benefit: Enables flexible topologies inside VX enclosures, reducing the need for multiple, separate mounting solutions. Application: Ideal for retrofits in VX, VX SE, and PC systems where space is at a premium. Feature: 2.5 mm sheet steel with zinc-plated finish. Benefit: Delivers robust mechanical strength with corrosion resistance in harsh industrial environments. Application: Suitable for outdoor-rated or dusty manufacturing areas where longevity matters. Feature: Upright or flat installation options. Benefit: Adapts to varying space constraints and door orientations, speeding up installation and minimizing downtime. Application: Quick reconfiguration during line changes or equipment upgrades. Feature: To fit 1,000 mm door width with dimensions 900x400 mm. Benefit: Ensures compatibility with common VX enclosure configurations, streamlining procurement. Application: Standardized fit for consistent enclosure layouts. Feature: Includes assembly parts and adaptor rail note for VX SE, PC, IW. Benefit: Reduces BOM complexity and ensures proper integration within VX ecosystems. Application: Simplifies onboarding for maintenance teams and contractors. Feature: Eco and classification data (PCF 33.6 kg CO2 eq Cat B; ETIM EC000213; ECLASS 27409216). Benefit: Supports sustainability reporting and data-driven procurement decisions. Application: Green procurement and lifecycle analyses for industrial projects.
Get a Quick Quote for a Rittal 8617600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617600?
Enquire Now
FAQs
Install the VX 8617.600 partial mounting plate by positioning the 900x400 mm plate inside the enclosure frame. Use the included assembly parts and, if working with VX SE or PC, ensure the adaptor rail VX is available for proper mounting. The plate supports upright vertical mounting or flat horizontal base configurations, enabling quick adaptation to space constraints.
The plate is made from 2.5 mm thick sheet steel with a zinc-plated surface for corrosion resistance. It measures 900 mm in width and 400 mm in depth, designed to fit doors up to 1,000 mm wide. Each pack weighs 8.81 kg and contains assembly parts to facilitate fast installation.
Yes. The 900x400 mm footprint and 1,000 mm door-width fit VX family enclosures, with installation options that support upgrades without major enclosure modifications. Its flexible mounting surface helps add components during retrofit projects while preserving existing cable management and access pathways.
The provided data references ETIM 9 EC000213 and ECLASS 8.0 27409216 classifications, plus a cradle-to-gate PCF of 33.6 kg CO2 eq (Cat B). The data does not explicitly list SIL, CE, or IP ratings; verify the exact certifications with the supplier or refer to the official datasheet for enclosure-specific compliance.
By providing a ready-made mounting surface and including assembly parts, the VX 8617.600 reduces assembly steps and minimizes downtime during upgrades. The zinc-plated steel offers long-term durability, while the PCF data supports environmental reporting. Overall, this plate lowers rework risk, improves space utilization, and simplifies procurement for ongoing maintenance and expansion.
