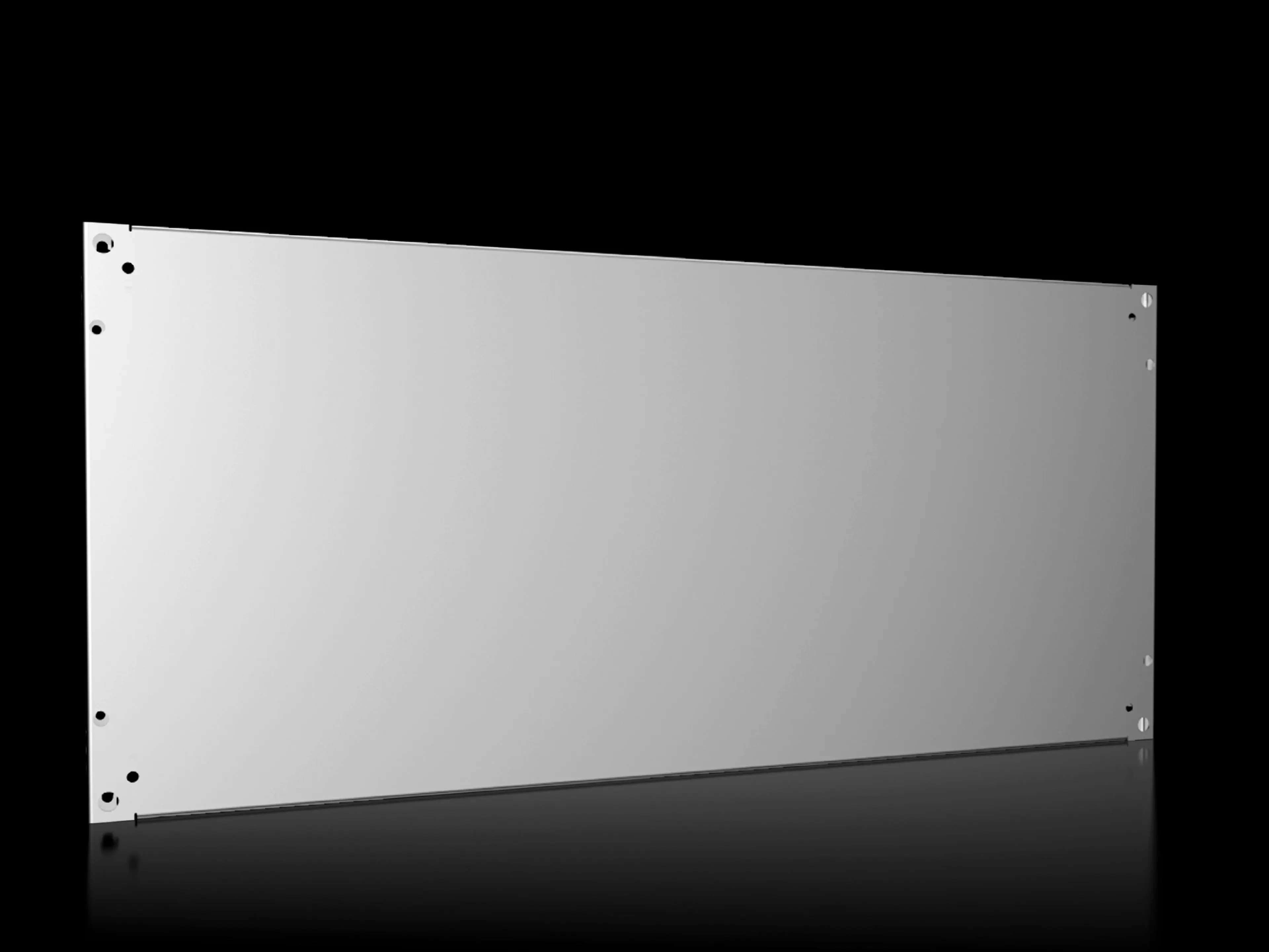

Rittal VX 8617.640 Partial mounting plate - 2.5 mm steel
Part Number: 8617640
Manufacturer
Rittal
Part number
8617640
Alt Part Number
VX 8617.640
Quick Summary
Rittal VX 8617.640 Partial mounting plate provides flexible internal mounting for added components inside VX family enclosures. A common challenge is fitting extra hardware without compromising enclosure space, rigidity, or serviceability. This accessory aligns with ETIM EC000213 and ECLASS 27409216 standards, and its cradle-to-gate PCF of 50.3 kg CO2 eq (Cat B) informs sustainability planning. For enclosures and electrical infrastructure projects, it delivers a predictable, scalable platform that speeds installs and reduces retrofit costs.
Product Information
Extended Description
8617640 Rittal: VX Partial mounting plate, dimensions: 1100x500 mm
Article number
VX 8617.640
Product description
To accommodate additional components inside the enclosure. Partial mounting plates can be used extremely flexibly, providing a platform for a diverse range of applications.
Material
Sheet steel, 2.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
For optional installation either upright as a vertical mounting surface, or flat as a horizontal base.
Note
Adaptor rail VX is required for installing in VX SE, PC, IW
Dimensions
Width: 1,100 mm | Depth: 500 mm
To fit
Enclosure type: VX | VX SE | PC | Width: = 600 mm | = 1,200 mm | Depth: = 600 mm
Packs of
1 pc(s).
Weight/pack
13.2 kg
PCF per pack (cradle-to-gate)
50.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177919495
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial mounting plate, dimensions: 1100x500 mm
Feature: Dimensions and material combine to form a robust mounting surface. The plate measures 1100x500 mm, is made from sheet steel 2.5 mm, and features a zinc-plated finish. Business impact: Delivers a rigid, corrosion-resistant platform that tolerates vibration and repeated mounting cycles, improving long-term reliability. Application: Ideal for adding components inside VX, VX SE, and PC enclosures such as terminal blocks and control hardware. Feature: Installation options provide flexibility. It can be mounted upright as a vertical surface or flat as a horizontal base. Business impact: Enables space optimization and adaptable layouts, reducing the need for multiple mounting adapters. Application: Fits varied enclosure geometries and workspace constraints to speed deployment. Feature: Included assembly parts simplify retrofits. Business impact: Reduces on-site assembly time and error risk, cutting commissioning lead times. Application: Quick upgrades during system expansions. Feature: Compatibility notes and environmental data. Business impact: Clear guidance on using adaptor rails for VX SE and PC installations, with PCF-based sustainability visibility. Application: Facilitates procurement planning and green reporting for enclosure projects.
Get a Quick Quote for a Rittal 8617640
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617640?
Enquire Now
FAQs
The VX 8617.640 Partial mounting plate is designed for VX, VX SE, and PC enclosures. It requires an adaptor rail VX for installations in VX SE and PC variants, ensuring a secure, consistent mounting platform across the VX family.
Install the plate as either a vertical mounting surface or a horizontal base, using the included assembly parts. For VX SE and PC installations, attach the adaptor rail VX as specified to maintain alignment and load distribution within the enclosure.
The plate provides a rigid, corrosion-resistant 2.5 mm sheet steel base sized 1100x500 mm, enabling flexible internal layouts with reduced retrofit time. Compatibility with VX, VX SE, and PC enclosures supports scalable expansion of control hardware and terminal blocks.
The part aligns with ETIM EC000213 and ECLASS 27409216 classifications, with a cradle-to-gate PCF of 50.3 kg CO2 eq (Cat B). This supports compliance considerations and sustainability reporting in enclosure projects.
Each pack includes one partial mounting plate with assembly parts, weighing 13.2 kg. It is sized to fit VX-compatible enclosures and supports straightforward procurement and shipping calculations for project planning.
