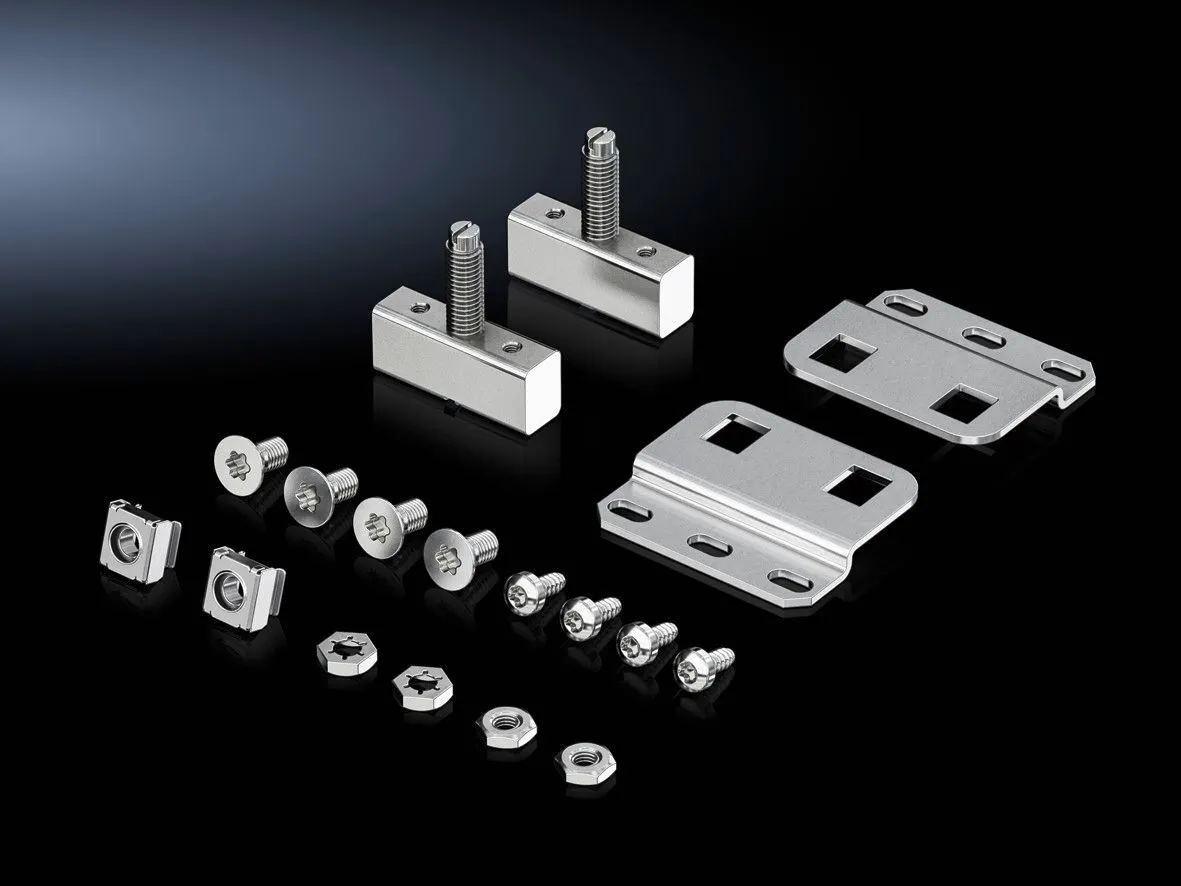

Rittal VX 8617.650 Hinge attachment for partial mounting plate - Zinc-plated steel
Part Number: 8617650
Manufacturer
Rittal
Part number
8617650
Alt Part Number
VX 8617.650
Quick Summary
Rittal VX 8617.650 hinge attachment enables quick access to components behind a partial mounting plate in enclosures. This solution minimizes downtime by allowing servicing without full door removal, saving time during maintenance and inspections. The part uses steel with a zinc-plated finish and aligns with ETIM 9 EC001167 and ECLASS 8.0 27409219 classifications for reliable interoperability across catalogs and procurement systems. By pairing with the VX mounting kit for swing frames, it supports front-frame installation and straightforward upgrade paths. This design choice reduces parts clutter, enhances standardization across an enclosure fleet, and preserves safety margins while improving serviceability for technicians in industrial environments.
Product Information
Extended Description
8617650 Rittal: VX Hinge attachment, for partial mounting plate
Article number
VX 8617.650
Product description
In conjunction with the mounting kit for swing frames, small, the partial mounting plate can be hinged to allow access to the components behind it for servicing.
Material
Steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
At the front, on the frame section
Assembly instruction
Select a PS punched section with mounting flange to match the enclosure depth.
Packs of
1 pc(s).
Weight/pack
0.414 kg
Customs tariff number
73269098
EAN
4028177919501
ETIM 9
EC001167
ECLASS 8.0
27409219
Product description
VX Hinge attachment, for partial mounting plate
The VX 8617.650 hinge attachment is crafted from steel with a zinc-plated finish, delivering durable, corrosion-resistant hardware that stands up to demanding environments. Business impact: improved maintenance efficiency and lower replacement costs due to long service life. Application: use with the VX mounting kit for swing frames to enable front-frame installation and rapid access to internal components. The assembly parts supplied with the product simplify ordering and installation, reducing procurement delays and field mistakes. Another feature is the installation option at the front on the frame section, which minimizes panel disassembly and accelerates servicing workflows. Weight per pack is 0.414 kg, and each pack contains 1 piece, supporting straightforward inventory management. The part integrates with standard PS punched sections and mounting flanges to match enclosure depth, ensuring compatibility across Rittal enclosures and reducing custom fabrication needs. This approach aligns with ETIM EC001167 and ECLASS 27409219, aiding cross-system cataloging and consistent maintenance practices.
Get a Quick Quote for a Rittal 8617650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617650?
Enquire Now
FAQs
The VX 8617.650 is a hinge attachment for partial mounting plates used with the VX swing-frame mounting kit. It allows the mounting plate to hinge open, providing quick access to components behind the plate without fully removing the enclosure door. Each pack includes assembly parts for straightforward installation and front-frame mounting as specified.
Install at the front, on the frame section, and ensure you select a PS punched section with a mounting flange that matches your enclosure depth. The kit ships with assembly parts to simplify the process, and you should mount it in conjunction with the VX swing-frame mounting kit for proper operation and service access.
Yes. VX 8617.650 is designed to be used with the mounting kit for swing frames and is installed at the front on the frame section, enabling the partial mounting plate to hinge for servicing. This compatibility supports standardized upgrades and maintenance workflows across Rittal enclosures.
The hinge attachment is made from steel with a zinc-plated surface finish, providing durable corrosion resistance suitable for demanding industrial environments. The robust material choice supports reliable long-term operation in enclosure interiors that may experience humidity or exposure to contaminants.
Each purchase unit contains 1 piece per pack, with a weight of 0.414 kg. The EAN is 4028177919501, and the product is cataloged under the customs tariff number 73269098, aiding import and compliance workflows for procurement teams.
