Rittal VX 8617.655 Mounting Plate Holder - Zinc Plated
Part Number: 8617655
Manufacturer
Rittal
Part number
8617655
Alt Part Number
VX 8617.655
Quick Summary
Rittal VX 8617.655 partial mounting plate holder positions a mounting plate 20 mm behind the enclosure frame for outer mounting. In tight control panels, front access for servicing can be challenging, but this accessory preserves frame integrity while enabling quick plate removal from the inside for servicing. Although explicit CE, SIL, or IP certifications aren’t listed in the provided data, the accessory uses standard sheet steel with zinc plating and passivation, and is aligned with ETIM 9 EC002625 and ECLASS 8.0 27189234 for reliable industry classification. Its compatibility with outer mounting level enclosures and its four-piece supply set make installation straightforward, reducing downtime and supporting scalable enclosure infrastructure.
Product Information
Extended Description
8617655 Rittal: VX Partial mounting plate holder, for outer mounting level
Article number
VX 8617.655
Product description
The partial mounting plate may be fitted set back by 20 mm behind the enclosure frame using the partial mounting plate holder, and also fastened to the frame from the outside. The partial mounting plate is also removable from the inside for servicing.
Material
Sheet steel
Surface finish
Zinc plated, passivated

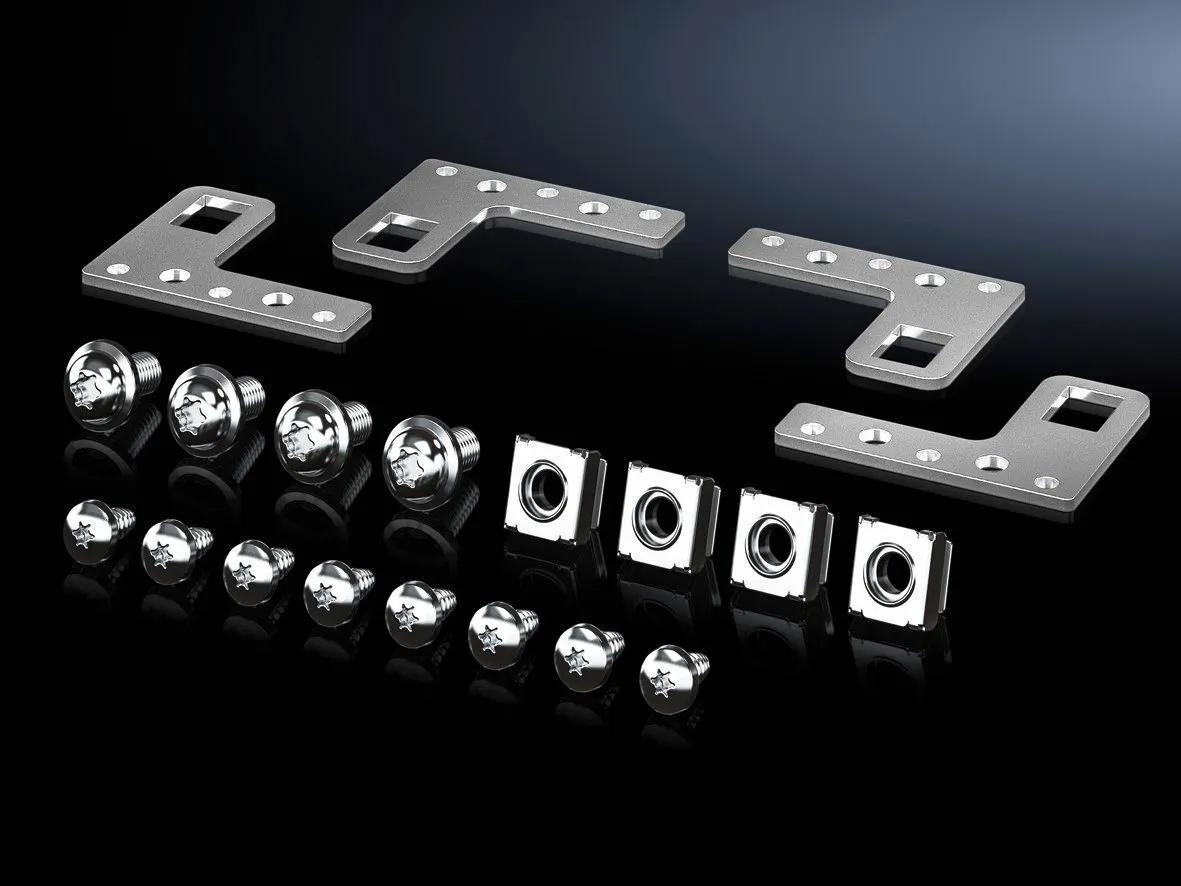

Supply includes
4 partial mounting plate holders | Assembly parts
Packs of
1 pc(s).
Weight/pack
0.209 kg
Customs tariff number
73269098
EAN
4028177924444
ETIM 9
EC002625
ECLASS 8.0
27189234
Product description
VX Partial mounting plate holder, for outer mounting level
Feature: Outer mounting level positioning with a 20 mm setback. Business Impact: Enables clean enclosure fronts and easier wire routing while preserving service access. Application: Ideal for compact control cabinets where space and front accessibility are critical. The arrangement minimizes rework during maintenance. Feature: Material and finish. Business Impact: Sheet steel with zinc plating and passivation provides corrosion resistance in typical industrial environments, extending accessory life. Application: Suitable for harsh workshop and factory floor settings where exposure to moisture and dust occurs. Feature: Supply includes four mounting plate holders plus assembly parts. Business Impact: Reduces part counts on site and speeds up installation, lowering labor costs. Application: Fits standard Rittal frames and simplifies stock management. Feature: Removable from inside for servicing. Business Impact: Facilitates service work without dismantling the enclosure, reducing downtime. Application: Maintenance of mounted equipment becomes faster and safer. Feature: Weight per pack 0.209 kg. Business Impact: Lightweight yet robust, easing handling during assembly and minimizing freight impact. Application: Useful in multi-cabinet deployments where total weight matters for logistics.
Get a Quick Quote for a Rittal 8617655
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617655?
Enquire Now
FAQs
Installation begins with confirming outer mounting level compatibility on the enclosure frame. Attach the four mounting plate holders from the outside to position the partial mounting plate 20 mm behind the frame, then secure the plate itself. The plate can be removed from inside for servicing, allowing access without dismantling the cabinet. Use assembly parts included to ensure a firm, shop-floor ready fit and minimize downtime during retrofits or upgrades.
Key specs include material: sheet steel with zinc plating and passivation; supply includes 4 partial mounting plate holders and assembly parts; pack size: 1 pc; weight per pack: 0.209 kg; product description and article number: VX 8617.655. The EAN is 4028177924444, with ETIM 9 EC002625 and ECLASS 8.0 27189234 classifications providing standardized catalog information for procurement and integration.
The VX 8617.655 is designed for outer mounting level applications and is compatible with Rittal enclosures that support this mounting configuration. While the data specifies outer mounting level and standard part numbers, always verify frame compatibility and mounting hole spacing on your specific enclosure model to ensure a proper fit and secure attachment during installation.
The product is classified under ETIM 9 EC002625 and ECLASS 8.0 27189234, which aids in consistent cataloging and procurement. The data also lists the EAN 4028177924444 and a customs tariff number 73269098. Explicit CE, IP, or SIL certifications are not listed in the provided data, so verify with your compliance team if those certifications are required for your application.
Using VX 8617.655 improves serviceability by allowing inside removal of the mounting plate and outside fastening, reducing maintenance time and cabinet downtime. The 20 mm setback enables cleaner front access and easier cable management, while the four-holder kit simplifies installation and inventory planning. This translates to lower labor costs, faster upgrades, and more scalable enclosure infrastructure for growing production lines.
