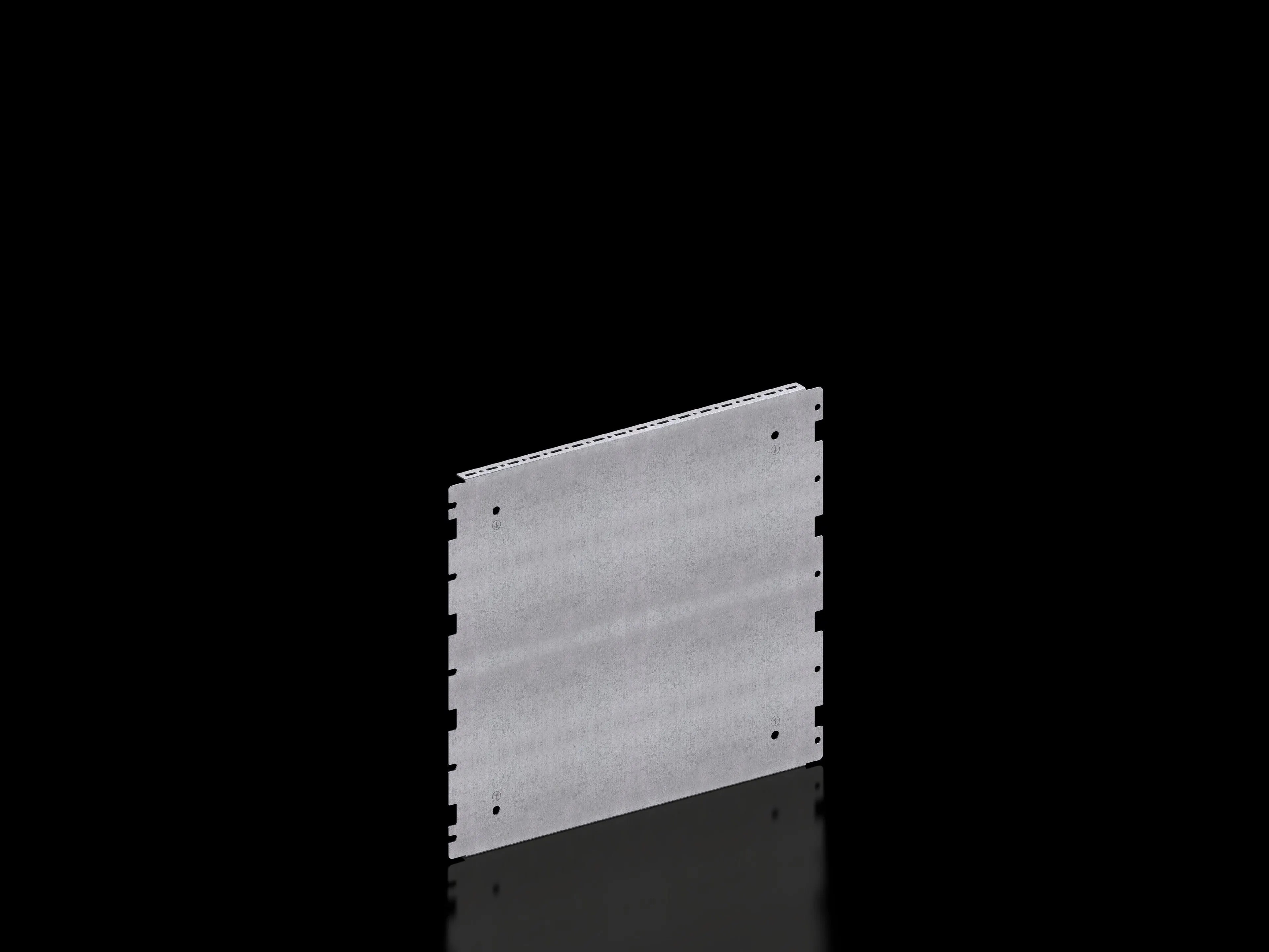

Rittal VX 8617.660 Partial Assembly Plate - Zinc-plated
Part Number: 8617660
Manufacturer
Rittal
Part number
8617660
Alt Part Number
VX 8617.660
Quick Summary
Rittal VX 8617.660 Partial Assembly Plate is a versatile interior mounting platform for VX and VX SE enclosures. Crowded cabinets and retrofit projects slow timelines; this plate provides a ready-made base for adding components, adapters, and wiring without custom fabrication. In line with industry standards such as ETIM EC000213 and ECLASS 27409216, it integrates smoothly into procurement and maintenance workflows. For engineers and purchasing teams, it translates to faster assemblies, clearer cable routing, and scalable interiors, reducing upgrade costs over the life of the cabinet. By enabling direct attachment inside the enclosure and supporting edge-fold punchings, it improves serviceability while preserving panel space and layout flexibility.
Product Information
Extended Description
8617660 Rittal: VX Partial assembly plate, dimensions: 500x400 mm
Article number
VX 8617.660
Product description
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
Benefits
For individual interior installation, system punchings are additionally provided in the edge fold.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Attach directly onto the enclosure section
Note
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Dimensions
Width: 438 mm | Height: 398 mm
To fit
Enclosure type: VX | VX SE | To fit width/depth: 500 mm
Packs of
1 pc(s).
Weight/pack
2.32 kg
Customs tariff number
73269098
EAN
4028177947207
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial assembly plate, dimensions: 500x400 mm
The VX 8617.660 Partial Assembly Plate uses 1.5 mm sheet steel with zinc plating, delivering a durable interior mounting surface that resists corrosion and maintains alignment for adapters, trays, and components. This robust construction translates into lower rework costs and fewer mounting issues during panel assembly, especially in vibration-prone environments typical of industrial cabinets. Installation is straightforward: attach directly onto the enclosure section and utilize system punchings along the edge fold to maintain neat cable routing and orderly component placement, reducing commissioning time and improving ongoing maintenance. Weighing 2.32 kg per pack with a single-piece pack, the plate enables efficient handling and shipping within standard VX/VX SE value chains. The included assembly parts further simplify installation, eliminating the need for separate hardware procurement. The design aligns with 500x400 mm footprint requirements and VX family compatibility, ensuring future expandability without cabinet redesign. For VX SE users, the note about VX adaptor rail ensures seamless integration during retrofits or upgrades. This accessory supports scalable interior configurations, enabling faster changeouts and predictable configuration management across multiple enclosures.
Get a Quick Quote for a Rittal 8617660
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617660?
Enquire Now
FAQs
The VX 8617.660 Partial Assembly Plate is designed for Rittal VX and VX SE enclosures. It accommodates a 500x400 mm footprint and can be attached directly to the enclosure section, with edge-fold punchings available to support tidy cable routing and component placement during interior installation.
The plate measures 500x400 mm with a width of 438 mm and height of 398 mm. It is constructed from sheet steel 1.5 mm thick and finished with zinc plating, providing durable corrosion resistance. Each pack contains 1 plate and weighs 2.32 kg, simplifying handling and installation in standard cabinet workflows.
Yes. The product note specifies VX SE compatibility and indicates that, when used with VX adaptor rails, the plate integrates smoothly into the enclosure section. This supports secure interior mounting while enabling future expansions without extensive retrofitting.
The part references ETIM 9 EC000213 and ECLASS 8.0 27409216 as classification standards, aiding cataloging and data exchange. It also carries the EAN 4028177947207 and a customs tariff code of 73269098, which facilitate cross-border logistics and compliance checks in procurement systems.
The plate provides a ready-made interior mounting platform, reducing need for bespoke metalwork, accelerating installation, and improving cable management. Supplying assembly parts with the plate minimizes additional hardware sourcing time, while its compatibility with VX and VX SE enclosures supports scalable configurations and predictable maintenance across multiple cabinets.
