Rittal VX 8617.661 Partial assembly plate - 500x600 mm
Part Number: 8617661
Manufacturer
Rittal
Part number
8617661
Alt Part Number
VX 8617.661
Quick Summary
Rittal VX 8617.661 Partial assembly plate is designed to simplify interior mounting and enable flexible component integration inside VX enclosures. This solution addresses space constraints and wiring complexity that often plague enclosure upgrades and expansions. In typical deployments, end users expect CE conformity and IP-rated protection of complete systems, which this plate supports as part of a compliant enclosure ecosystem. The plate adds a robust mounting plane while maintaining accessibility for cabling, diagnostics, and future upgrades. By leveraging its zinc-plated 1.5 mm sheet steel construction, it delivers reliable durability, while fitting seamlessly with VX and VX SE configurations to optimize total cost of ownership and install efficiency.
Product Information
Extended Description

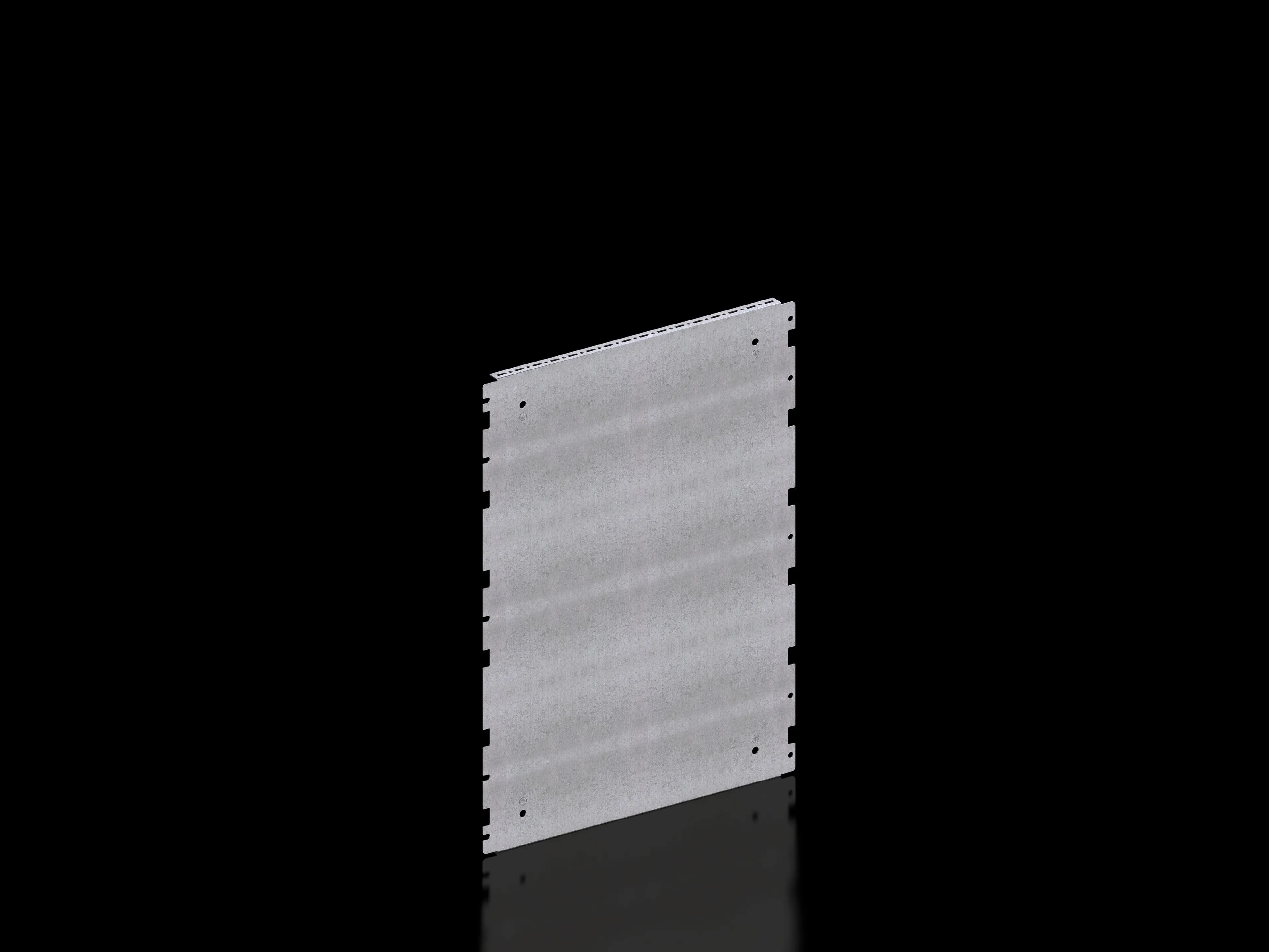

8617661 Rittal: VX Partial assembly plate, dimensions: 500x600 mm
Article number
VX 8617.661
Product description
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
Benefits
For individual interior installation, system punchings are additionally provided in the edge fold.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Attach directly onto the enclosure section
Note
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Dimensions
Width: 438 mm | Height: 598 mm
To fit
Enclosure type: VX | VX SE | To fit width/depth: 500 mm
Packs of
1 pc(s).
Weight/pack
3.4 kg
Customs tariff number
73269098
EAN
4028177947191
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial assembly plate, dimensions: 500x600 mm
Dimensions and fit deliver a reliable mounting plane for interior components. Feature → Business Impact → Application: The 500x600 mm footprint aligns with VX/VX SE interior layouts, ensuring precise alignment and reducing misplacement during assembly, which translates to faster project ramp-up in industrial control panels. Application: Ideal for engineers expanding enclosure functionality without relocating existing equipment. Weight and handling simplicity reduce on-site labor and shipping costs. Feature → Business Impact → Application: At 3.4 kg per pack, the plate minimizes handling risk and logistics effort, enabling safer installation in tight spaces. Application: Useful for contract manufacturers and field service teams working in compact automation cabinets. Material and finish provide corrosion resistance in harsh environments. Feature → Business Impact → Application: 1.5 mm zinc-plated sheet steel offers long-term durability, protecting mounted components from exposure while maintaining a clean interior. Application: Suitable for food-grade or general industrial environments where protection matters. Supply includes assembly parts and direct installation options streamline setup. Feature → Business Impact → Application: Included assembly parts and the option to attach directly onto the enclosure section shorten lead times and simplify inventory management. Application: Supports rapid interior customization for VX/VX SE enclosures. VX SE compatibility note reinforces system integration. Feature → Business Impact → Application: Clear guidance on using VX adaptor rails in VX SE creates a scalable path for future upgrades. Application: Facilitates modular expansion without reworking existing enclosures. Packs of 1 with defined weight and dimensions help planning. Feature → Business Impact → Application: Knowing packaging and weight supports accurate budgeting and logistics planning for large assemblies. Application: Helpful for procurement teams coordinating multi-unit builds.
Get a Quick Quote for a Rittal 8617661
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617661?
Enquire Now
FAQs
VX 8617.661 is designed for use inside VX and VX SE enclosures. It attaches directly to the enclosure section and accommodates system punchings in the edge fold, enabling flexible interior layouts and scalable component mounting without needing additional adapters or tools.
Begin by confirming enclosure dimensions match the plate footprint, then align the plate with the interior mounting plane. Use the supplied assembly parts to fasten it to the enclosure section, ensuring edge-fold punchings remain accessible for subsequent wiring and component installation. Verify alignment before wiring to prevent misfits.
Key specs include dimensions 500x600 mm (plate), width 438 mm, height 598 mm, material sheet steel 1.5 mm, surface zinc-plated, weight 3.4 kg per pack, and it contains assembly parts. It is intended for VX and VX SE enclosures with direct attachment capability.
The plate uses corrosion-resistant zinc-plated steel and is designed to integrate with standard VX enclosures, supporting typical industrial environments. While standards like CE compliance are expected for complete systems, ensure the assembled enclosure meets your site-specific regulatory requirements and that the overall installation adheres to applicable electrical and safety codes.
The plate simplifies interior mounting, reduces install time, and enables easier future upgrades, which lowers labor costs and minimizes downtime during changes. Its durable construction reduces replacement frequency, providing a measurable maintenance and lifecycle cost benefit for medium to large automation cabinets.
