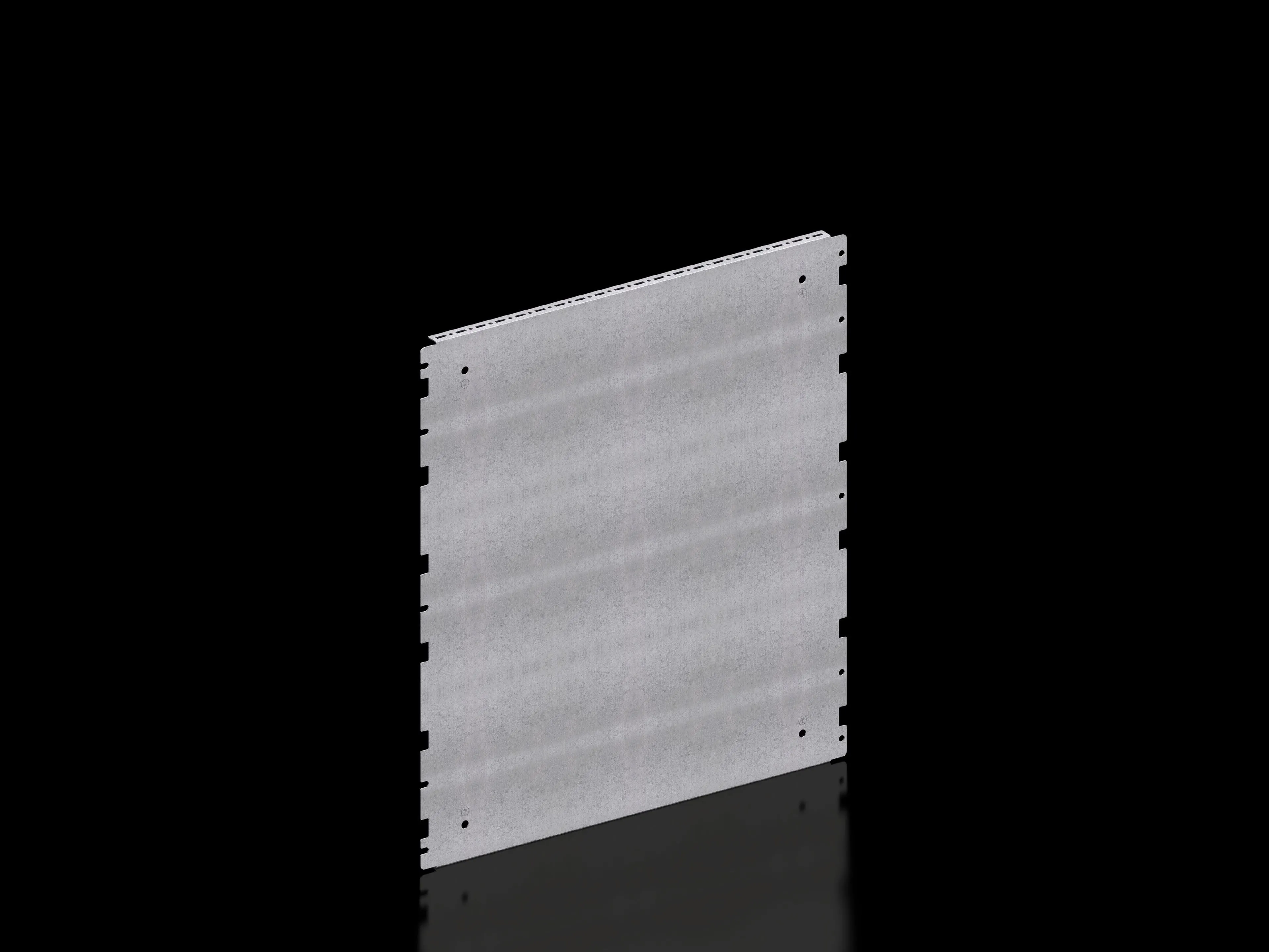

Rittal VX 8617.663 Partial Assembly Plate - Zinc-Plated
Part Number: 8617663
Manufacturer
Rittal
Part number
8617663
Alt Part Number
VX 8617.663
Quick Summary
Rittal VX 8617.663 Partial Assembly Plate enables flexible interior mounting for VX/VX SE enclosures. When interior space is at a premium, engineers struggle with adapting standard enclosures to bespoke layouts. This accessory is classified with ETIM 9 EC000213 and ECLASS 8.0 27409216 to streamline procurement, and features zinc-plated 1.5 mm sheet steel for corrosion resistance. Together, these attributes support faster installation, cleaner layouts, and reliable performance in industrial control panels. These compatibility and material choices align with VX enclosure accessories to enable scalable interior expansion and long-term cost efficiency.
Product Information
Extended Description
8617663 Rittal: VX Partial assembly plate, dimensions: 600x600 mm
Article number
VX 8617.663
Product description
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
Benefits
For individual interior installation, system punchings are additionally provided in the edge fold.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Attach directly onto the enclosure section
Note
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Dimensions
Width: 538 mm | Height: 598 mm
To fit
Enclosure type: VX | VX SE | To fit width/depth: 600 mm
Packs of
1 pc(s).
Weight/pack
4.14 kg
Customs tariff number
73269098
EAN
4028177947177
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial assembly plate, dimensions: 600x600 mm
Feature: Attach directly onto the enclosure section, including edge fold punchings. Business impact: reduces hardware, speeds installs, and improves alignment. Application: ideal for retrofitting PLCs, terminal blocks, and sensors inside VX or VX SE cabinets. Feature: 1.5 mm sheet steel, zinc-plated finish. Impact: provides corrosion resistance and robust support in demanding environments. Application: reliable mounting for industrial automation components. Feature: 600x600 mm footprint with width 538 mm and height 598 mm. Impact: ensures compatibility with standard VX enclosures and predictable mounting planes. Application: use for interior layout planning and system expansion. Feature: supply includes assembly parts and direct-attachment installation. Impact: simplifies sourcing and reduces assembly time. Application: fast-track retrofits and modular configurations.
Get a Quick Quote for a Rittal 8617663
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617663?
Enquire Now
FAQs
Install by attaching the plate directly onto the enclosure section as specified for VX and VX SE types. Use the included assembly parts; align with the edge fold punchings to ensure a level mounting plane and stable support for added components.
The plate has a 600x600 mm footprint with a width of 538 mm and a height of 598 mm. It is designed to fit VX and VX SE enclosures and to accommodate 600 mm width/depth configurations.
Yes. The plate provides a versatile interior mounting platform with edge punchings, allowing installation points for PLCs, terminal blocks, sensors, and related components within VX or VX SE enclosures.
The product data includes ETIM 9 EC000213 and ECLASS 8.0 27409216 classifications to aid procurement and interoperability. The EAN for this item is 4028177947177, supporting accurate cataloging in ERP systems.
By enabling faster interior installation and standardized mounting, the plate reduces assembly time, improves organization, and lowers maintenance complexity. Its zinc-plated finish also enhances corrosion resistance, contributing to longer service life in challenging environments.
