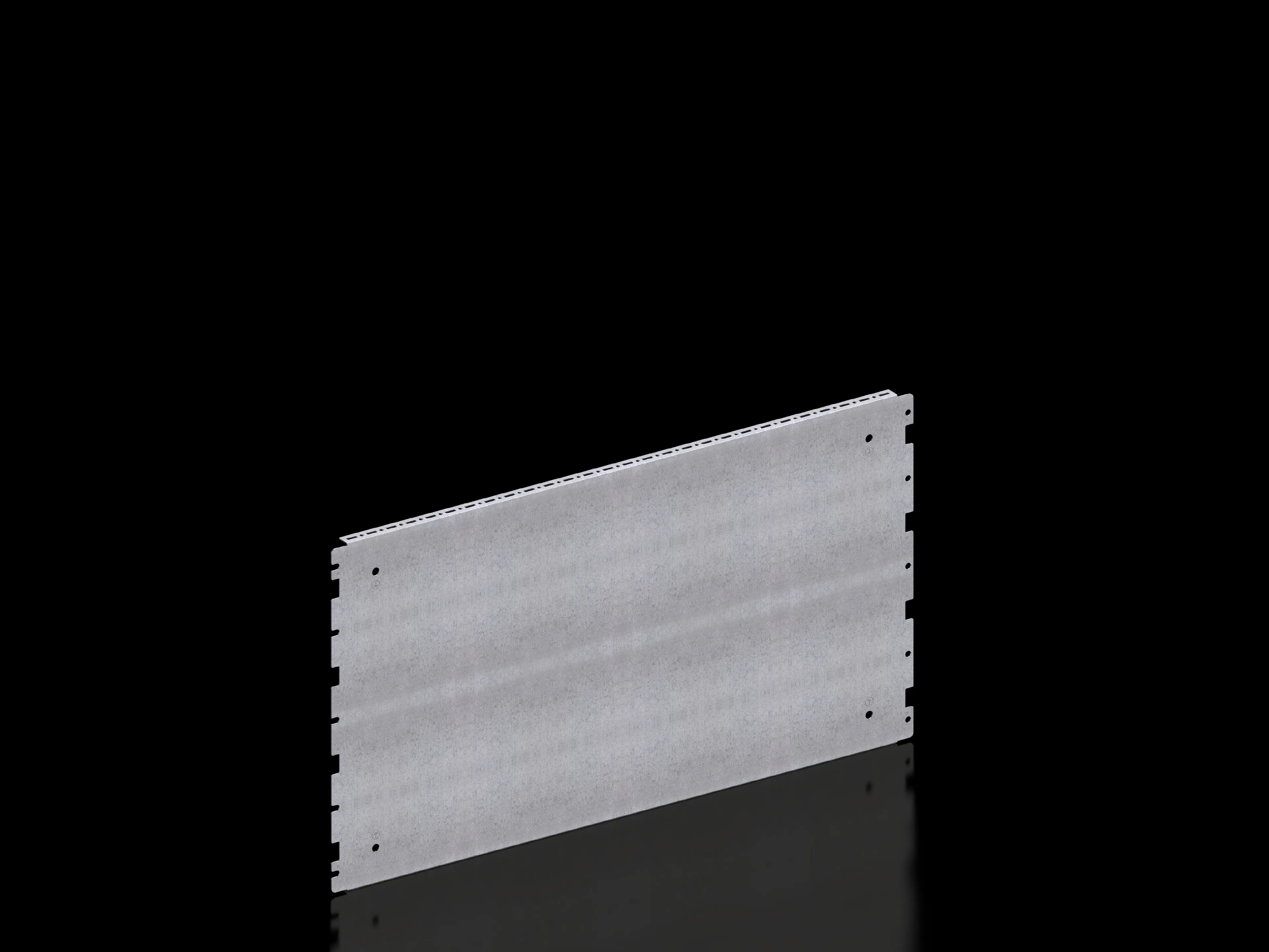

Rittal VX 8617.664 Partial Assembly Plate - Zinc-plated
Part Number: 8617664
Manufacturer
Rittal
Part number
8617664
Alt Part Number
VX 8617.664
Quick Summary
VX 8617.664 Partial Assembly Plate adds interior mounting space inside VX enclosures for flexible component layouts. By providing a ready-to-use platform, it reduces rework and speeds onboarding when you add new devices or relays. The data shows a zinc-plated 1.5 mm sheet steel construction with dimensions tailored for VX and VX SE installations, indicating ETIM EC000213 and ECLASS 27409216 classifications. This accessory integrates with system punchings along the edge fold and installs directly onto the enclosure section, delivering cleaner interiors and faster maintenance for modern control panels. As an enclosures & electrical infrastructure component, it supports efficient interior installation while aligning with standard VX assembly practices, benefitting panel builders and integrators alike.
Product Information
Extended Description
8617664 Rittal: VX Partial assembly plate, dimensions: 800x400 mm
Article number
VX 8617.664
Product description
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
Benefits
For individual interior installation, system punchings are additionally provided in the edge fold.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Attach directly onto the enclosure section
Note
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Dimensions
Width: 738 mm | Height: 398 mm
To fit
Enclosure type: VX | VX SE | To fit width/depth: 800 mm
Packs of
1 pc(s).
Weight/pack
3.92 kg
Customs tariff number
73269098
EAN
4028177947160
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial assembly plate, dimensions: 800x400 mm
Feature: Dimensions and fit – The plate measures 800x400 mm and is designed to fit VX and VX SE enclosure widths, providing a predictable mounting canvas that simplifies layout planning. Business impact: Reduces design iterations and minimizes field modifications, accelerating project delivery. Application: Interior component mounting in VX series panels. Feature: Material and finish – Made from 1.5 mm sheet steel with a zinc-plated surface finish. Business impact: Delivers a rigid, corrosion-resistant mounting platform suitable for harsh industrial environments, extending panel life and reducing replacement costs. Application: Safe, durable interior installations in industrial controls. Feature: Installation options – Can be attached directly onto the enclosure section; supports edge-fold punchings for flexible interior arrangements. Business impact: Cuts installation time and avoids enclosure disassembly, improving field efficiency. Application: Quick retrofits and modular updates inside VX enclosures. Feature: Compatibility and integration – Supplying assembly parts and compatibility with VX adaptor rails when used with VX SE. Business impact: Ensures seamless integration with existing VX systems and rails, minimizing compatibility concerns. Application: VX and VX SE interior upgrades. Feature: Packaging and handling – Packs of 1 with a weight of 3.92 kg per pack, enabling straightforward stocking and shipping. Business impact: Reduces logistics complexity and inventory footprint. Application: Procurement and warehousing for panel builders.
Get a Quick Quote for a Rittal 8617664
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617664?
Enquire Now
FAQs
Install directly onto the enclosure section using the provided assembly parts. Ensure alignment with system punchings and edge folds; compatibility with VX adaptor rails is noted for VX SE installations. This minimizes disassembly and speeds up interior reconfiguration.
The plate has dimensions of 800x400 mm with a width of 738 mm and height of 398 mm. It is made from 1.5 mm sheet steel with a zinc-plated finish, and ships as a single-pack per order, weighing 3.92 kg.
Yes. It is designed for VX enclosure types and can be used in VX SE configurations in conjunction with VX adaptor rails, enabling integrated interior mounting without significant layout changes.
The provided data lists ETIM 9 EC000213 and ECLASS 8.0 27409216 classifications. Explicit CE, IP, or SIL ratings are not listed for this accessory; use within VX systems is the primary compatibility context.
By enabling a modular interior mounting space, it reduces rework, shortens installation times, and improves cable management. It supports faster commissioning of panels, easier future upgrades, and cleaner, maintenance-friendly interiors for VX and VX SE enclosures.
