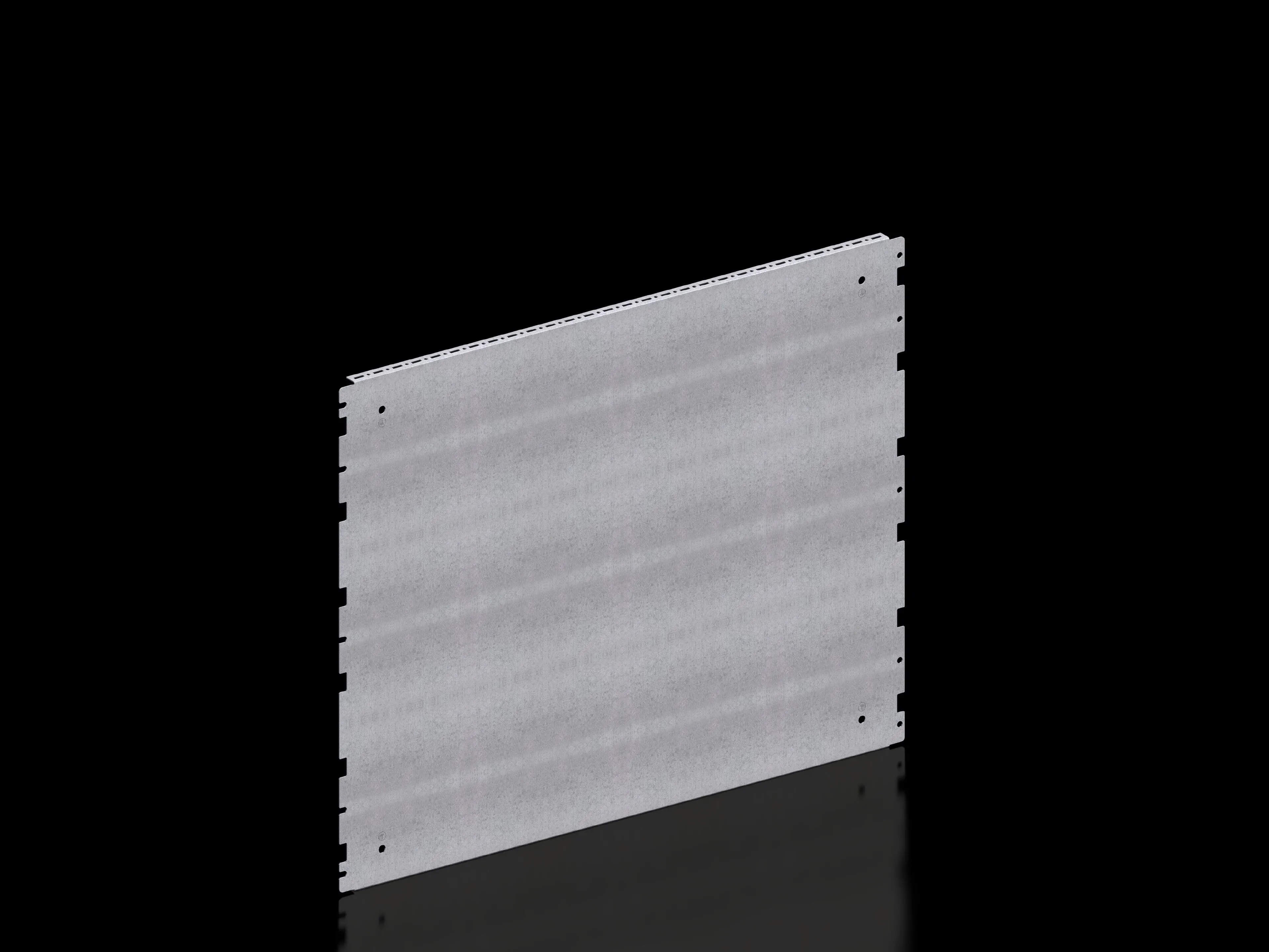

Rittal VX 8617.665 Partial assembly plate - 800x600 mm
Part Number: 8617665
Manufacturer
Rittal
Part number
8617665
Alt Part Number
VX 8617.665
Quick Summary
Partial assembly plate helps engineers organize internal components inside VX enclosures for flexible, modular installations. Many panel projects struggle with cramped spaces and ad hoc mounting, leading to wiring congestion and longer assembly times. This VX accessory aligns with ETIM EC000213 and ECLASS 27409216 classifications, providing a standards-based framework for reliable procurement. With dimensions designed for 800x600 mm layouts and a zinc-plated 1.5 mm sheet steel build, it delivers durable interior support. By offering a dedicated platform that can attach directly onto the enclosure section, it reduces field modifications and accelerates project delivery, while maintaining access for service and future upgrades. In short, it combines practical depth with scalable mounting options for modern VX enclosures.
Product Information
Extended Description
8617665 Rittal: VX Partial assembly plate, dimensions: 800x600 mm
Article number
VX 8617.665
Product description
To accommodate additional components inside the enclosure. Partial assembly plates are extremely versatile, providing a platform for a diverse range of applications.
Benefits
For individual interior installation, system punchings are additionally provided in the edge fold.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
Attach directly onto the enclosure section
Note
In VX SE, on the enclosure section in conjunction with VX adaptor rail
Dimensions
Width: 738 mm | Height: 598 mm
To fit
Enclosure type: VX | VX SE | To fit width/depth: 800 mm
Packs of
1 pc(s).
Weight/pack
5.76 kg
Customs tariff number
73269098
EAN
4028177947153
ETIM 9
EC000213
ECLASS 8.0
27409216
Product description
VX Partial assembly plate, dimensions: 800x600 mm
The plate provides a defined mounting plane with dimensions of 800x600 mm, enabling predictable placement of interior components and reducing misalignment during assembly. This translates to faster wiring, repeatable layouts, and lower rework costs in high-mix, low-volume environments. The 1.5 mm sheet steel, zinc-plated finish delivers durable corrosion resistance and longevity in demanding cabinet environments, supporting reliable operation over the product lifecycle. Installation options include direct attachment onto the enclosure section, with assembly parts supplied, simplifying field installs and reducing the need for additional hardware. For VX SE users, the note about VX adaptor rails expands mounting versatility, enabling modular upgrades without rework. System punchings in the edge fold further enhance interior customization, improving cable management and component segregation for easier maintenance. Overall, the combination of fit, finish, and flexible mounting supports faster project delivery and lower lifecycle costs.
Get a Quick Quote for a Rittal 8617665
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617665?
Enquire Now
FAQs
VX 8617.665 is designed to fit VX and VX SE enclosures with an 800 mm width. It attaches directly onto the enclosure section and ships with assembly parts, enabling a straightforward interior mounting process. When used with VX SE, you may also leverage the VX adaptor rail for extended mounting flexibility and future upgrades.
The plate is made from sheet steel 1.5 mm thick and features a zinc-plated surface finish for corrosion resistance. Each pack weighs 5.76 kg, and the plate is sized at 800x600 mm with internal fitment compatible with VX enclosures. The EAN is 4028177947153 and the GTIN matches the product bundle.
Installation options include attaching the plate directly onto the enclosure section. The supply includes assembly parts, enabling a complete interior mounting solution without requiring extra hardware. For VX SE configurations, the note about adaptor rails provides additional mounting flexibility with minimal rework.
The plate is designed for individual interior installation and includes system punchings in the edge fold to facilitate modular mounting of components. This supports organized cable management, easier component replacement, and scalable configurations within VX or VX SE enclosures.
Key identifiers include Article VX 8617.665, GTIN 4028177947153, and Customs tariff 73269098. Classification references include ETIM 9 EC000213 and ECLASS 8.0 27409216. Confirm regional compliance (for example CE/UL) as required by your market, and use the provided EAN for cataloging and procurement.
