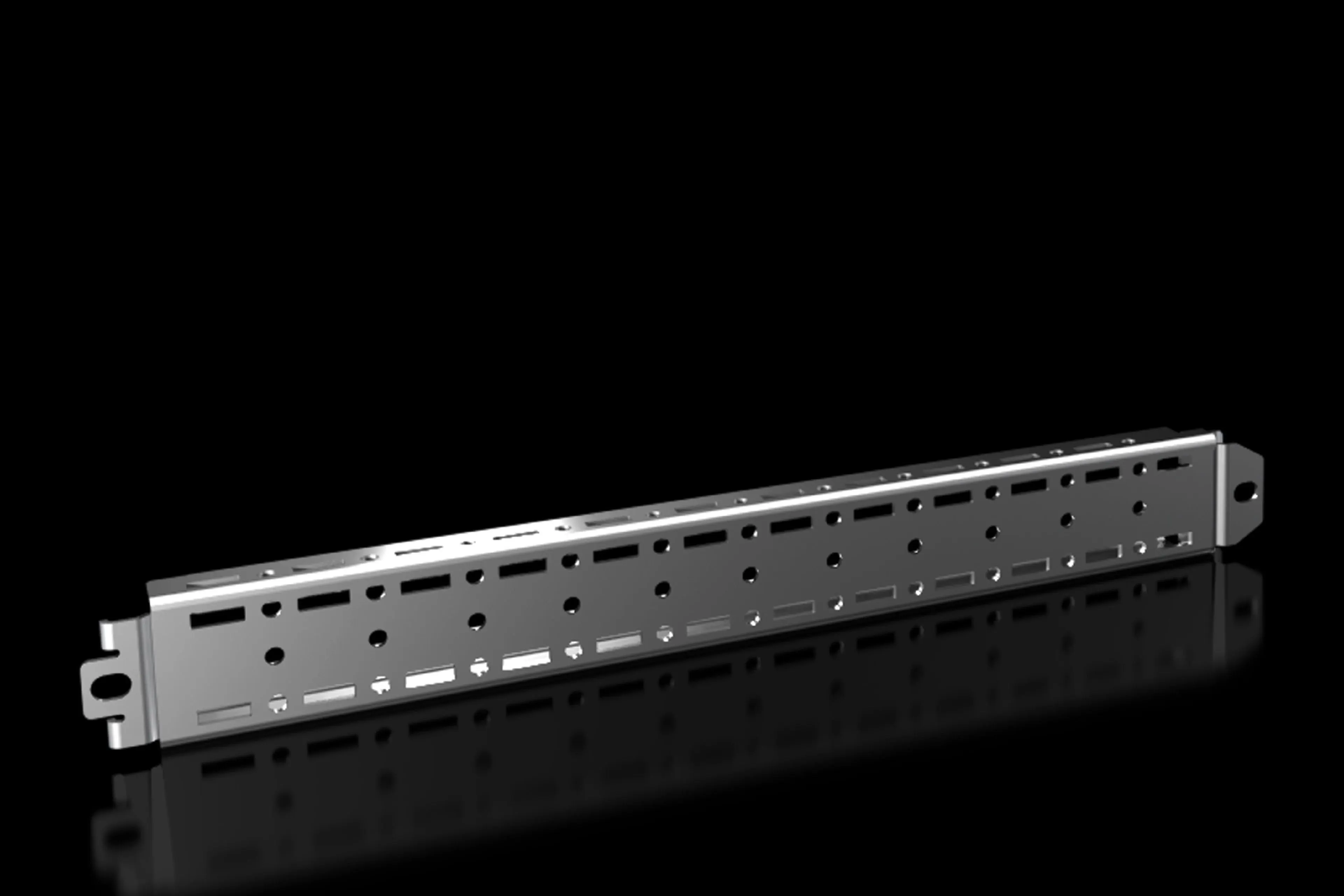

Rittal VX 8617.700 Punched Rail - 18x38 mm, 400 mm
Part Number: 8617700
Manufacturer
Rittal
Part number
8617700
Alt Part Number
VX 8617.700
Quick Summary
Rittal VX 8617.700 Punched Rail enables precise, variable interior installation on the inner mounting level of VX enclosures. Engineers often struggle to adapt interior mounting rails to changing layouts without extra parts or custom fabrication. While the rail is made from zinc-plated sheet steel and designed for VX systems, certifications are not specified in the provided data; verify local conformance for CE, IP, or SIL requirements as applicable. The product integrates with existing VX components and other punched sections, delivering a flexible, scalable solution that reduces installation time and overall BOM while supporting reliable, repeatable mounting in industrial environments.
Product Information
Extended Description
8617700 Rittal: VX Punched rail 18 x 38 mm, for W/D: 400 mm
Article number
VX 8617.700
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level.
Benefits
May also be used in conjunction with other punched sections
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
In VX on the inner mounting level, on the VX enclosure section
Note
In enclosures with a mounting plate, 2 punched rails are already included with the supply.
To fit
Enclosure type: VX | VX SE | To fit width/depth: 400 mm
Packs of
4 pc(s).
Weight/pack
1.62 kg
Customs tariff number
73269098
EAN
4028177921702
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched rail 18 x 38 mm, for W/D: 400 mm
The VX 8617.700 Punched Rail is built from zinc-plated sheet steel, offering durable corrosion resistance and long service life in demanding environments. This translates to lower maintenance costs and fewer system interruptions on the shop floor. With an 18 x 38 mm cross-section and a 400 mm width/depth, the rail provides compatible mounting space for a wide range of interior components, enabling rapid reconfiguration without redesigning the enclosure. The supply includes assembly parts and comes in packs of four, which accelerates on-site installation and simplifies procurement for multi-rack projects. In enclosures with mounting plates, two punched rails are included, reducing the need for additional purchases and speeding up early-phase installations. The rail’s compatibility with other punched sections supports modular expansion as your control cabinet grows, aligning with lean engineering practices and minimizing downtime during upgrades. Weighing 1.62 kg per pack, it remains easy to handle during installation and maintenance tasks, improving installer efficiency and safety on the job.
Get a Quick Quote for a Rittal 8617700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617700?
Enquire Now
FAQs
The VX 8617.700 is designed for variable interior installation on the inner mounting level of VX and VX SE enclosures. It ships as a 4-pack with assembly parts included, and in enclosures with mounting plates, two rails are provided by default; use the inner mounting level or VX enclosure sections to position the rails for your equipment.
The rail is manufactured from sheet steel and finished with zinc plating for corrosion resistance. Each pack weighs 1.62 kg, and a pack contains four rails with the included assembly parts, facilitating quick on-site mounting.
Yes. The rail is specified to fit VX and VX SE enclosure types with a width/depth of 400 mm, supporting interior mounting on the inner level and compatibility with other punched sections.
Using the VX 8617.700 reduces parts sourcing time and enables rapid, repeatable interior mounting configurations. Packs of four and included assembly parts accelerate project kickoff, while compatibility with other punched sections supports scalable upgrades without changing mounting hardware.
Official information sheets and product descriptions are available in DE/EN/FR formats from Rittal, with the product page providing article numbers, materials, and installation notes to support procurement and installation planning.
