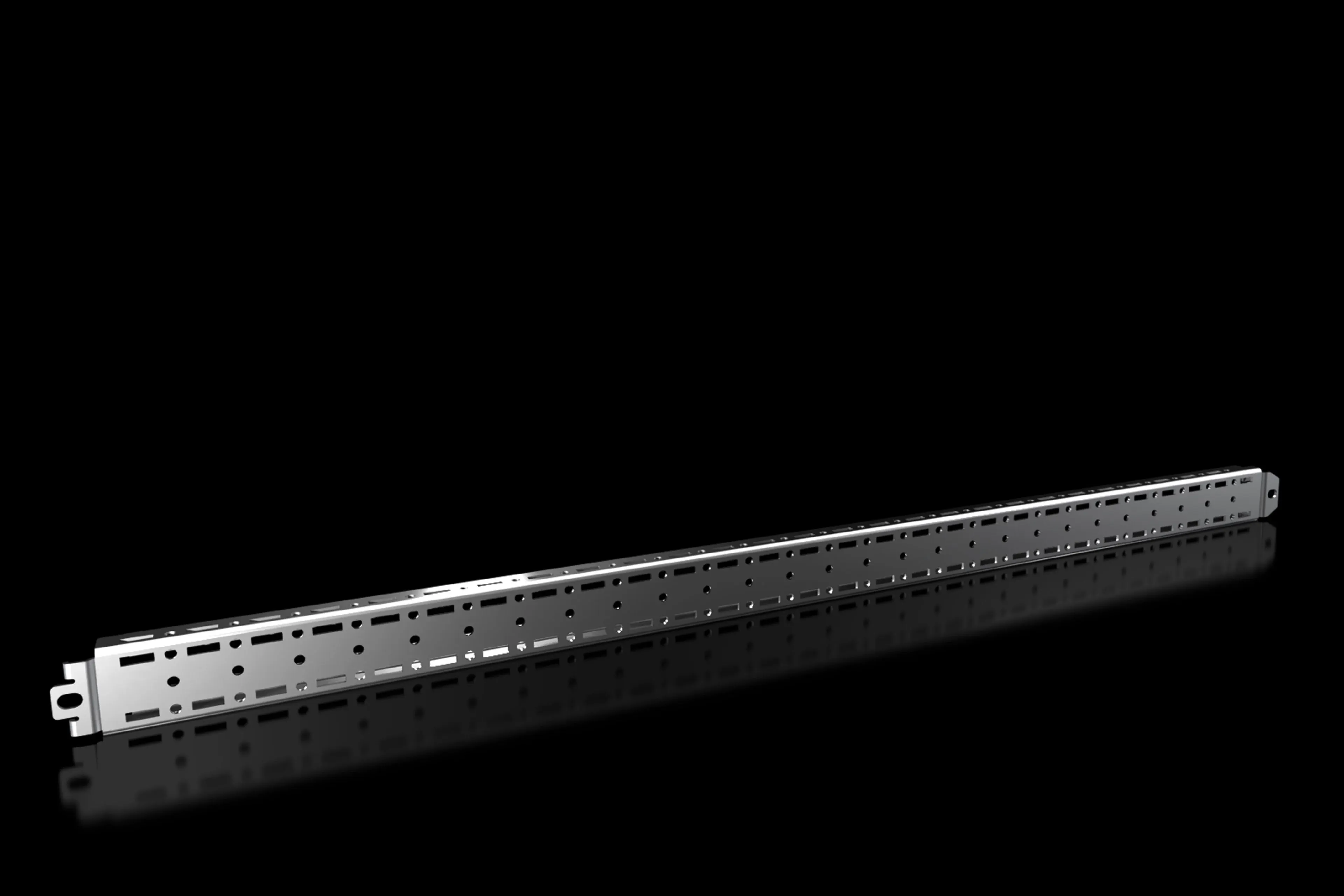

Rittal VX 8617.730 Punched Rail - 18x38 mm, 800 mm VX Enclosures
Part Number: 8617730
Manufacturer
Rittal
Part number
8617730
Alt Part Number
VX 8617.730
Quick Summary
The Rittal VX 8617.730 Punched Rail enables flexible interior mounting inside VX enclosures. It offers a straightforward solution for variable layouts, reducing retrofit downtime and the need for custom fabrication. CE compliant and aligned with ETIM EC002620 and ECLASS 27189234, the accessory also benefits from robust, zinc-plated sheet steel construction for durability in demanding environments. This rail supports installation on the inner mounting level and works with VX enclosure sections, delivering predictable, repeatable mounting points. Within a VX system, it enables scalable, future-ready configurations that shorten commissioning and simplify maintenance, while reducing the risk of misalignment or component mismatch.
Product Information
Extended Description
8617730 Rittal: VX Punched rail 18 x 38 mm, for W/D: 800 mm
Article number
VX 8617.730
Product description
For variable, individual interior installation of the enclosure frame on the inner mounting level.
Benefits
May also be used in conjunction with other punched sections
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
Installation options
In VX on the inner mounting level, on the VX enclosure section
Note
In enclosures with a mounting plate, 2 punched rails are already included with the supply.
To fit
Enclosure type: VX | VX SE | To fit width/depth: 800 mm
Packs of
4 pc(s).
Weight/pack
3.7 kg
Customs tariff number
73269098
EAN
4028177921733
ETIM 9
EC002620
ECLASS 8.0
27189234
Product description
VX Punched rail 18 x 38 mm, for W/D: 800 mm
Feature: 18 x 38 mm punched rail and compatibility with the inner mounting level. Business impact: Enables precise, adjustable mounting points that minimize rework and configuration drift. Application: Ideal for variable interior layouts in VX enclosures and VX SE variants. Feature: Zinc-plated sheet steel construction. Business impact: Delivers durable corrosion resistance in industrial environments, reducing maintenance cycles. Application: Suitable for long-term use in control panels and electrical infrastructure. Feature: 800 mm length with inclusion of assembly parts. Business impact: Supports quick, tool-ready installation and reduces parts handling time. Application: Fits VX enclosure sections and W/D 800 mm configurations for streamlined panel builds. Feature: Compatibility with enclosure systems and mounting options. Business impact: Provides flexible installation on the inner level, enabling future upgrades without additional hardware. Application: Works across VX ranges and can be paired with other punched sections for complex layouts. Feature: Pack contents and notes. Business impact: Note that enclosures with mounting plates include two punched rails, saving cost and avoiding extra purchases. Application: Practical for standard VX configurations and retrofit projects, ensuring immediate readiness. Feature: Compliance and standards alignment. Business impact: CE compliance and alignment with ETIM EC002620 and ECLASS 27189234 support procurement and traceability. Application: Facilitates regulatory-ready installations in automated facilities and electrical infrastructure projects.
Get a Quick Quote for a Rittal 8617730
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617730?
Enquire Now
FAQs
Yes, the VX 8617.730 Punched Rail is designed to fit VX and VX SE enclosures with an 800 mm width/depth. It installs on the inner mounting level and requires assembly parts included in the pack. Note that enclosures with mounting plates may already include two punched rails, reducing additional hardware needs.
The rail measures 18 x 38 mm and is made from zinc-plated sheet steel for durability. It is 800 mm long, supplied in packs of four, with a per-pack weight of 3.7 kg. Assembly parts are included to facilitate quick installation on the inner mounting level.
This rail is ideal for control panels and electrical infrastructure within VX enclosures. It supports variable interior mounting layouts, enables scalable upgrades, and helps maintain organized cable management, reducing commissioning time and improving maintainability in automated production lines.
The VX 8617.730 is CE compliant and aligns with ETIM EC002620 and ECLASS 27189234, ensuring procurement traceability and standardization across industrial projects. The zinc-plated steel construction further supports reliable performance in typical enclosure environments.
Durable zinc-plated steel minimizes corrosion-related maintenance, while the 800 mm rail length and assembly parts speed up installation, reducing downtime during panel builds and retrofits. Packs of four provide cost efficiency, and compatibility with VX systems supports future upgrades without replacing existing mounts.
