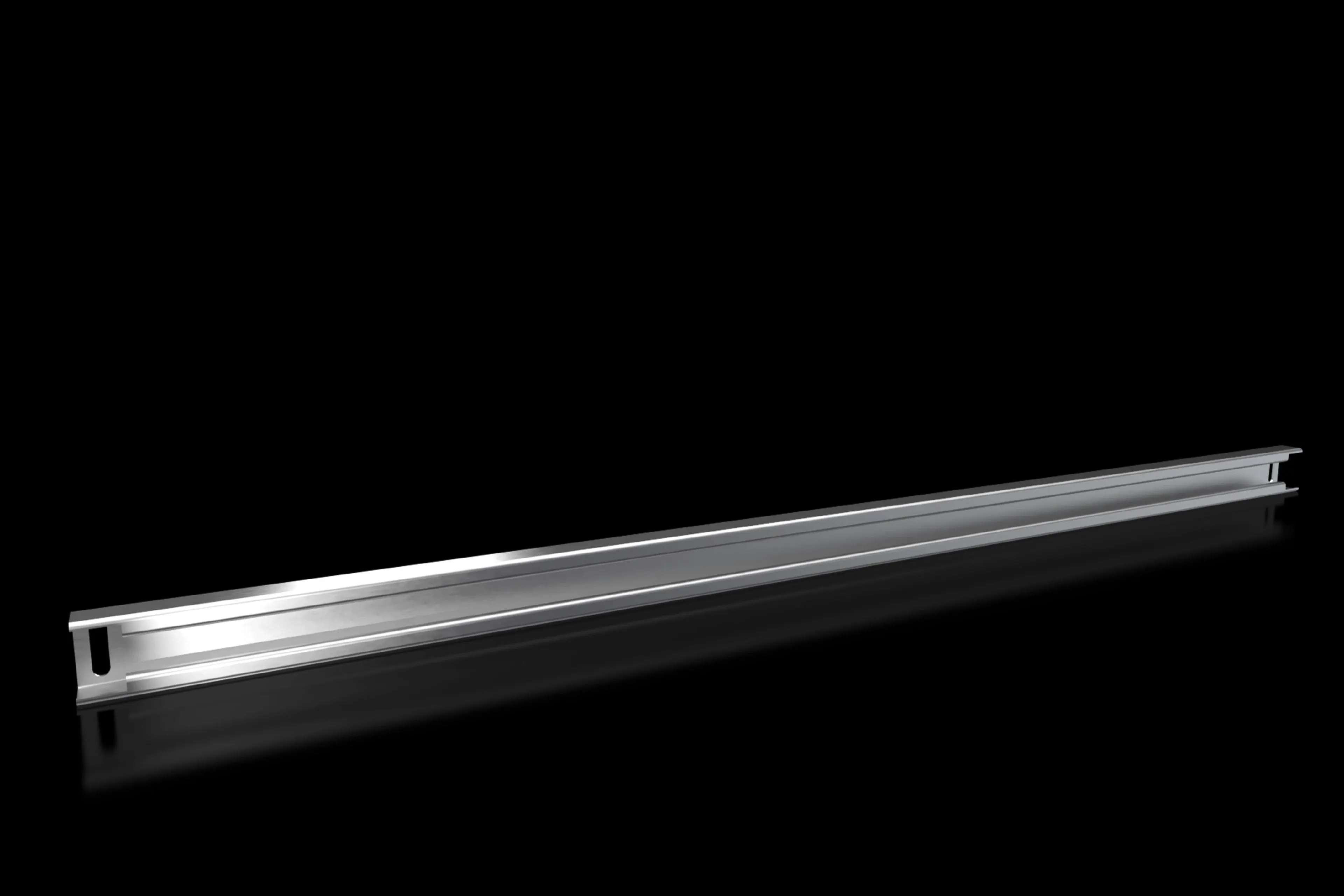

Rittal 8617.830 VX Support Rail - Zinc-plated
Part Number: 8617830
Manufacturer
Rittal
Part number
8617830
Alt Part Number
VX 8617.830
Quick Summary
The VX 8617.830 VX Support Rail provides robust mounting for heavy equipment inside 1200 mm enclosures. Installers often struggle with precise alignment, multiple mounting options, and vibration management during panel assembly. This rail leverages industry classifications such as ETIM EC001285 and ECLASS 27189261 to streamline procurement and system integration, while CE and IP certifications are not specified in this dataset and should be confirmed with the official datasheet. Built from zinc-plated sheet steel, it delivers durable performance and compatible installation options across VX, VX SE, PC, IW, and AX families. The result is faster, compliant installations with predictable service life and reduced maintenance risk.
Product Information
Extended Description
8617830 Rittal: VX Support rail 48 x 26 mm, for W: 1200 mm
Article number
VX 8617.830
Product description
|
Material
Sheet steel
Surface finish
Zinc-plated
Supply includes
Assembly parts
VX installation options
In enclosure width 1200 mm, on the inner mounting level and in the base
VX SE installation options
In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
AX installation options
In enclosure width 1200 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
PC installation options
In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
WI installation options
In enclosure width 1200 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility and in the base
To fit
Enclosure type: VX | VX SE | PC | IW | AX | CX one-piece console | CX pedestal | Width: = 1,200 mm
Packs of
2 pc(s).
Weight/pack
5.7 kg
Customs tariff number
73269098
EAN
4028177919549
ETIM 9
EC001285
ECLASS 8.0
27189261
Product description
VX Support rail 48 x 26 mm, for W: 1200 mm
Feature: 48 x 26 mm cross-section and zinc-plated sheet steel provide high load tolerance. Business Impact: Enables secure mounting of heavy equipment such as transformers, reducing risk of deformation and unexpected downtime. Application: Ideal for W: 1200 mm enclosure widths, with inner mounting level and base rail compatibility for streamlined cabinet builds. Feature: T-head screws and support rail slots support a wide range of mounting dimensions. Business Impact: Improves installation flexibility and reduces field customization time, lowering project costs. Application: Suits VX and VX SE configurations, PC, IW, AX, and CX integration scenarios. Feature: VX installation options include inner mounting level and base, with additional VX SE options for adaptor rail compatibility. Business Impact: Accelerates commissioning and ensures repeatable hardware alignment across multiple enclosures. Application: Essential for scalable infrastructure projects and retrofit tasks. Feature: Packs of 2 and weight of 5.7 kg per pack optimize logistics and on-site handling. Business Impact: Reduces shipping volume and handling effort while preserving serviceability. Application: Suitable for multi-unit deployments in industrial cabinets and transformer housings. Feature: Material and finish provide corrosion resistance in harsh environments. Business Impact: Extends service life in challenging plant conditions, lowering maintenance costs. Application: Favorable for long-term installations in controlled environments and outdoor-ready assemblies.
Get a Quick Quote for a Rittal 8617830
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8617830?
Enquire Now
FAQs
The VX 8617.830 rail is designed for inner mounting levels and base mounting within 1200 mm wide enclosures. Start by aligning the rail on the inner level using the provided assembly parts, securing with T-head screws, and then position the equipment to match mounting dimensions. This approach minimizes misalignment and ensures a stable load distribution.
Key specs include a 48 x 26 mm cross-section, sheet steel material, zinc-plated surface finish, packs of two, weight 5.7 kg per pack, and a length of 1200 mm. The product is listed under article VX 8617.830 and is compatible with VX, VX SE, PC, IW, AX enclosures.
Yes. The installation options and ‘to fit’ specifications indicate compatibility across VX, VX SE, PC, IW, AX, and CX configurations, with options for inner mounting levels and base rails. This makes it suitable for modular cabinet systems and scalable control architectures.
The provided data lists ETIM 9 EC001285 and ECLASS 8.0 27189261 classifications. Specific CE or IP certifications are not shown here; users should consult the official datasheet or vendor for confirmation of regulatory compliance and any region-specific certifications.
The rail’s heavy-duty zinc-plated steel construction, along with a two-pack configuration, supports durable, long-term installations with predictable service life. Faster assembly, improved mounting accuracy, and reduced maintenance visits translate to lower total cost of ownership in transformer and heavy equipment installations.
