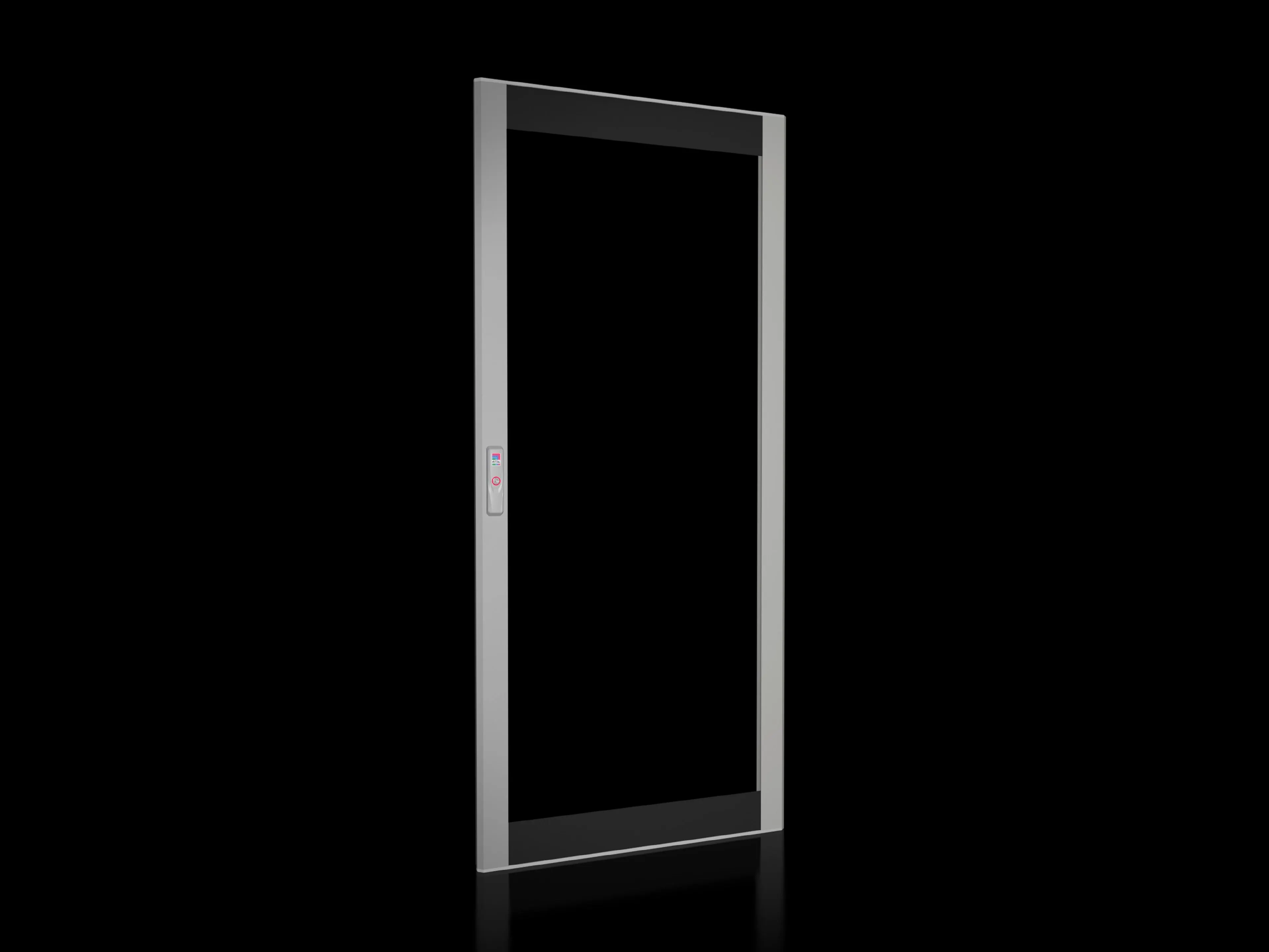

Rittal VX 8618.010 Glazed Door – IP55 IK08
Part Number: 8618010
Manufacturer
Rittal
Part number
8618010
Alt Part Number
VX 8618.010
Quick Summary
Rittal VX 8618.010 Glazed Door provides a viewing-window solution for VX enclosures, enabling quick status checks in control panels. Engineers often contend with opaque doors that slow diagnostics and complicate maintenance in tight spaces. Designed to meet IP55 ingress protection, IK08 impact resistance, and UL Type 1 listing, it supports reliable operation in demanding industrial environments. Its powder-coated aluminum frame and printed masking window enhance durability and visibility, delivering faster service and lower lifecycle costs for your VX enclosure installations.
Product Information
Extended Description
8618010 Rittal: VX Glazed door, for WH: 800x1800 mm
Article number
VX 8618.010
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Glazed door | Locking rod with double-bit insert | 180° hinges (4)
IK Code
IK08
Note
Lock components for frame 8618.110 are required when mounting instead of the rear panel
Type rating to UL 50E
Type 1
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: VX | Width: = 800 mm | Height: = 1,800 mm
Packs of
1 pc(s).
Weight/pack
16 kg
EAN
4028177920972
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Glazed door, for WH: 800x1800 mm
Glazed window for quick visual checks reduces maintenance time and minimizes system downtime in control cabinets, delivering measurable efficiency gains in high-mix environments. The extruded aluminum frame with 3 mm safety glass provides a robust, corrosion-resistant solution that withstands harsh industrial conditions, lowering replacement and upkeep costs while extending service life in food, chemical, and manufacturing facilities. The door ships with 180° hinges (4) and a locking rod with double-bit insert, enabling rapid installation and secure closure, improving operator access and reducing installation labor. With IP55 protection and IK08 impact resistance, this door enhances compliance and safety in dusty or impact-prone zones, supporting reliable operation of automation infrastructure. The VX 800x1800 mm fit ensures seamless integration with existing VX enclosures, while the powder-coated finish, RAL 7035 frame and RAL 9005 viewing-window mask maintain a professional appearance and visibility over time.
Get a Quick Quote for a Rittal 8618010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618010?
Enquire Now
FAQs
The VX 8618.010 glazed door is designed to fit VX enclosures with a width of 800 mm and a height of 1,800 mm, specifically intended for WH 800x1800 mm configurations. It ships as a complete glazed door assembly with hinges and locking hardware suitable for VX frames, reducing modification time during installation.
The door carries IP 55 protection for dust and splash resistance and IK08 impact resistance for physical durability. It is listed for UL Type 1 applications in electrical enclosures, ensuring compliance with common safety and electrical enclosure standards in industrial environments.
Yes, the glazed door is designed to bolt onto the VX frame for straightforward installation. Note that lock components for frame 8618.110 are required when mounting instead of the rear panel. Including a locking rod with double-bit insert and 180° hinges simplifies assembly and reduces the need for separate hardware purchases.
The 3 mm safety glass viewing window provides immediate visibility into internal components, enabling faster diagnostics and status checks. Combined with a powder-coated aluminum frame for durability, maintenance teams experience shorter downtime, fewer openings to the interior, and easier routine inspections in control rooms and production lines.
By improving visibility, reducing maintenance time, and increasing enclosure durability, the glazed door lowers lifecycle costs and downtime. The included hardware and compatibility with VX enclosures minimize retrofit expenses, while IP55 and IK08 compliance help avoid nonconformance penalties and ensure continuity of automated processes.
