Rittal VX 8618.040 Glazed Door for WH 600x2200 - IP 55
Part Number: 8618040
Manufacturer
Rittal
Part number
8618040
Alt Part Number
VX 8618.040
Quick Summary
Rittal VX 8618.040 Glazed Door for VX enclosures provides clear, secure access for industrial cabinets with an eye toward visibility and protection. In busy plants, poor sightlines and moisture ingress from plain doors slow maintenance and raise risk. This glazed door delivers IP 55 protection, IK08 impact resistance, and UL Type 1 compatibility, aligning with common safety and electrical standards. The combination of a powder-coated aluminium frame, a 3 mm safety viewing pane, and a printed mask inside enhances aesthetics while simplifying inspection routines. For VX frames sized 600 mm wide by 2,200 mm high, you gain reliable operation, easier documentation, and improved worker ergonomics—supporting faster service and reduced downtime.
Product Information
Extended Description

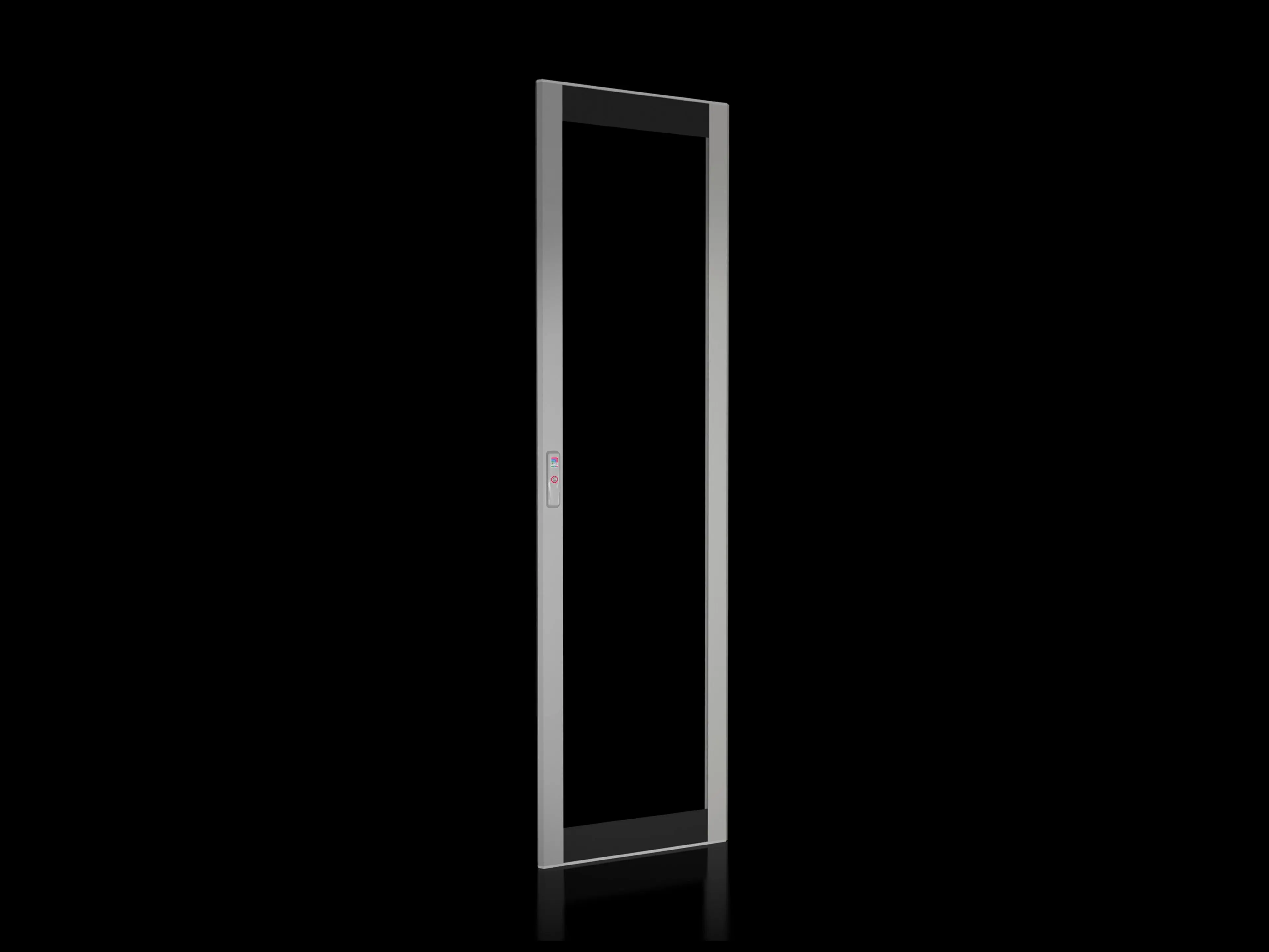

8618040 Rittal: VX Glazed door, for WH: 600x2200 mm
Article number
VX 8618.040
Product description
Instead of a sheet steel door or rear panel.
Material
Frame: Extruded aluminium section | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Powder-coated
Colour
Frame: RAL 7035 | Viewing window (printed mask on the inside): RAL 9005
Supply includes
Glazed door | Locking rod with double-bit insert | 180° hinges (4)
IK Code
IK08
Note
Lock components for frame 8618.110 are required when mounting instead of the rear panel
Type rating to UL 50E
Type 1
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: VX | Width: = 600 mm | Height: = 2,200 mm
Packs of
1 pc(s).
Weight/pack
15.4 kg
EAN
4028177920934
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Glazed door, for WH: 600x2200 mm
Glazed viewing door with 3 mm safety glass: improves operator visibility and reduces inspection time, enabling faster fault detection and safer maintenance in busy production lines. Business impact: higher first-time fix rates and lower downtime, especially in dense cabinet rows or high-traffic areas. Application: control cabinets and VX enclosures where visibility matters. Extruded aluminium frame with powder-coated finish in RAL 7035: delivers durable corrosion resistance and a consistent aesthetic across facilities. Impact on efficiency: reduced maintenance costs and longer service intervals, with a consistent look across plant floors. Viewing window mask in inside printed finish (RAL 9005): minimizes glare and simplifies status checks, supporting quick status assessment in dim environments. Locking rod with double-bit insert and 180° hinges (4): enhances ease of operation and secure closure, reducing door-wrench incidents and ensuring enclosure integrity under vibration. Compatibility and installation: designed for VX frames with a width of 600 mm and height of 2,200 mm; lock components for frame 8618.110 are required when mounting instead of the rear panel, simplifying retrofits and replacements. IP 55 and IK08 ratings: provide dust and moisture protection plus impact resistance, enabling use in demanding manufacturing settings while complying with UL Type 1 requirements. Packaged as 1 piece per pack (weight 15.4 kg): streamlines stocking, handling, and on-site installation in lean bi-modal maintenance environments.
Get a Quick Quote for a Rittal 8618040
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618040?
Enquire Now
FAQs
The VX 8618.040 glazed door is designed to fit VX enclosure frames sized 600 mm wide by 2,200 mm high and ships with 180° hinges and a locking rod with double-bit insert. When mounting in place of a rear panel, lock components for frame 8618.110 are required. This facilitates retrofits and ensures secure, code-compliant installation in existing VX systems.
The door is IP 55 protected, IK08 impact resistant, and UL Type 1 compliant. These certifications guarantee protection against dust and moisture, withstands impact in busy environments, and meets essential electrical safety standards for industrial enclosures.
The door features an extruded aluminium frame with a powder-coated finish in RAL 7035 and a viewing window made from 3 mm safety glass with an inside printed mask in RAL 9005. This combination delivers long-term corrosion resistance, consistent color, and reduced glare in operator lines of sight.
Key considerations include confirming the enclosure width and height, using the provided 180° hinges (4) for full door opening, and ensuring the appropriate lock components are used if mounting replaces a rear panel (frame 8618.110). This ensures reliable operation and proper alignment with standard VX frames.
The glazed door improves visibility, enabling quicker fault diagnosis and safer manual inspections. Its IP 55 protection and IK08 durability reduce exposure to dust and impacts, while UL Type 1 compatibility supports industry electrical compliance. Together, these features translate to lower maintenance costs, fewer downtime events, and faster service cycles in production lines.
