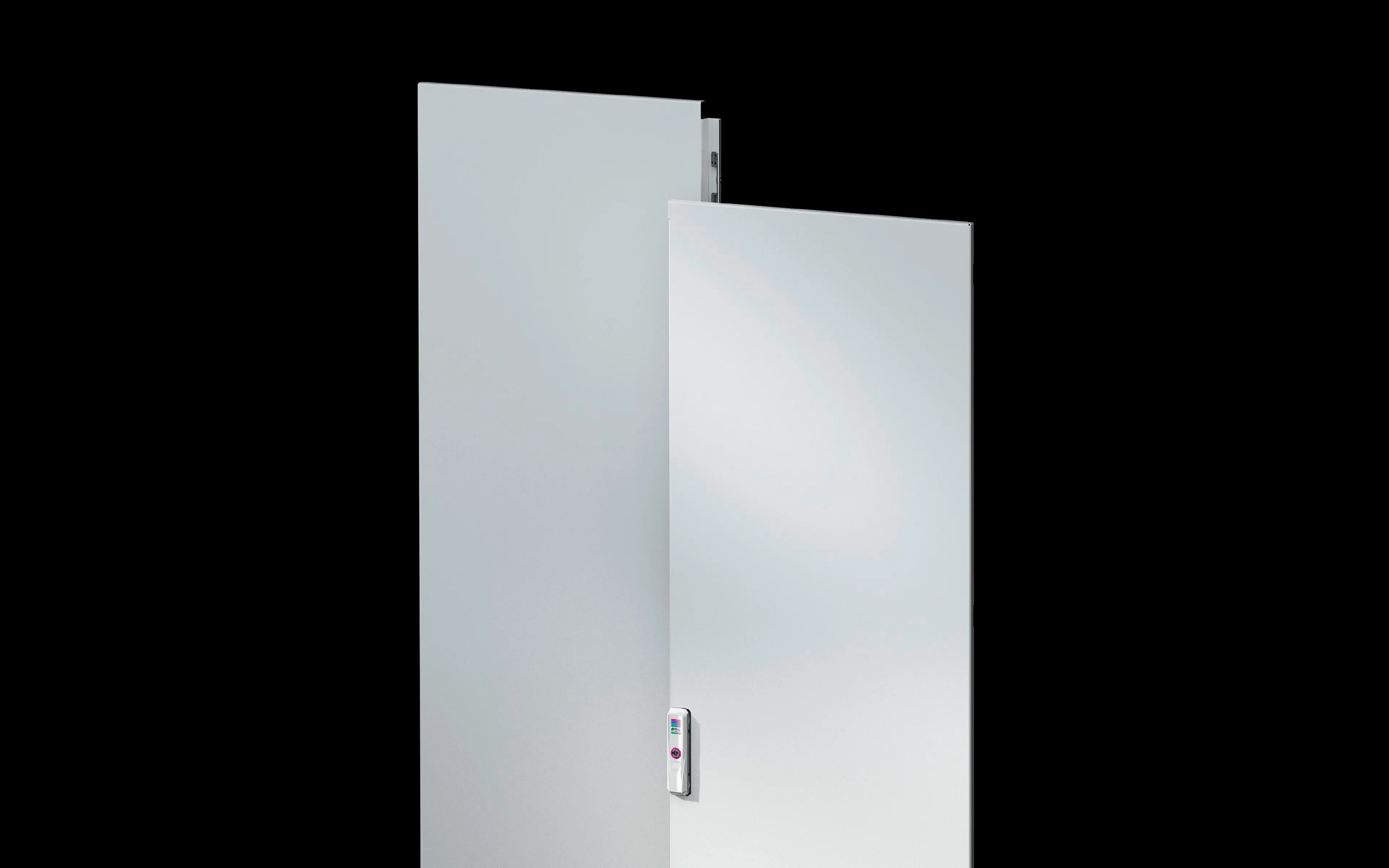

Rittal VX 8618.120 Enclosures - IP55 800x2000 mm
Part Number: 8618120
Manufacturer
Rittal
Part number
8618120
Alt Part Number
VX 8618.120
Quick Summary
Rittal VX 8618.120 is an IP55 lockable adjacent door configured for the VX enclosure family with a WH footprint of 800x2000 mm. This solution addresses the common challenge of creating compliant escape routes while maintaining secure access to critical electrical infrastructure. The design supports two 400 mm doors or a single 800 mm wide door, providing installation flexibility to match plant layouts and space constraints. It aligns with CE certifications and IP protection requirements, while also leveraging ETIM EC000747 and ECLASS 27182204 data models for seamless digital integration. By selecting this door kit, you improve serviceability, reduce installation time, and reinforce safety and maintenance workflows in automation environments.
Product Information
Extended Description
8618120 Rittal: VX Lockable and adjacent door, for WH: 800x2000 mm
Article number
VX 8618.120
Product description
For example, if two 400 mm doors instead of one 800 mm wide door are used to comply with escape routes. May also be fitted instead of an 800 mm wide rear panel.
Material
Sheet steel
Surface finish
Dipcoat-primed, powder-coated on the outside
Colour
RAL 7035
Supply includes
2 doors incl. tubular door frame | 130° hinges | Lock components
IP protection category to IEC 60 529
IP 55
To fit
Enclosure type: VX | Width: = 800 mm | Height: = 2,000 mm
Packs of
1 pc(s).
Weight/pack
40 kg
Customs tariff number
94039910
EAN
4028177921375
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Lockable and adjacent door, for WH: 800x2000 mm
Feature: Lockable adjacent door for WH 800x2000 mm enhances physical security while enabling controlled access. Business Impact: Improves incident response and reduces tampering risk, supporting compliant access management. Application: Ideal for mid-to-large VX enclosures in automation cabinets and control rooms. Feature: Flexible door configuration with two 400 mm panels or a single 800 mm wide option. Business Impact: Adapts to escape-route requirements and architectural constraints, cutting custom fabrication. Application: Retrofit projects and new installations in manufacturing lines. Feature: Robust sheet steel construction with dipcoat-primed, powder-coated exterior. Business Impact: Delivers durable protection against corrosion and wear, lowering maintenance costs. Application: Environments with dust, grime, and periodic washdowns. Feature: IP protection rating IP55. Business Impact: Guards against ingress from dust and water, reducing failure rates in harsh environments. Application: Factory floors, process lines, and outdoor installations. Feature: Supplied components include 2 doors, tubular door frame, 130° hinges, and lock hardware. Business Impact: Speeds up on-site installation and ensures consistent fit; reduces field service time. Application: Quick retrofits and standardization across VX enclosures. Feature: VX compatibility and packaging details (packs of 1, weight 40 kg). Business Impact: Simplifies logistics, inventory planning, and handling; predictable shipment sizes. Application: System integrators and distributors stocking VX accessories. Feature: Certifications and data-model compatibility (ETIM EC000747, ECLASS 27182204, EAN 4028177921375). Business Impact: Enables seamless data exchange and regulatory alignment; supports ERP/MDS workflows. Application: Digital asset management and parts cataloging for manufacturing plants.
Get a Quick Quote for a Rittal 8618120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618120?
Enquire Now
FAQs
Begin by confirming VX compatibility and the 800x2000 mm footprint. Attach the tubular door frame, then mount the two 400 mm doors (or the single 800 mm door) using the 130° hinges. Install the lock components and adjust for proper alignment before testing door operation. Ensure seals are seated to achieve IP55 performance.
IP55 is achieved through a combination of sheet steel construction, a dipcoat-primed base, and a powder-coated exterior, plus tightly sealed door interfaces and hinges. Proper assembly with supplied hardware ensures dust and water ingress protection suitable for typical industrial environments.
Yes, the VX 8618.120 is designed for VX enclosure type with 800 mm width and 2000 mm height. Mounting uses the supplied tubular frame and 130° hinges, which are compatible with VX family mounting patterns. Verify enclosure interior access and hinge clearance for smooth operation and escape-route compliance.
The door kit is CE compliant and rated IP55 for ingress protection. It is documented with ETIM EC000747 and ECLASS 27182204 data models, enabling standardized digital integration across procurement and maintenance systems.
The robust sheet steel construction and powder-coated finish minimize corrosion and wear, reducing maintenance intervals. Quick installation reduces on-site labor costs, while improved access control and escape-route compliance lower risk of downtime during audits and upgrades, delivering measurable total-cost-of-ownership benefits.
