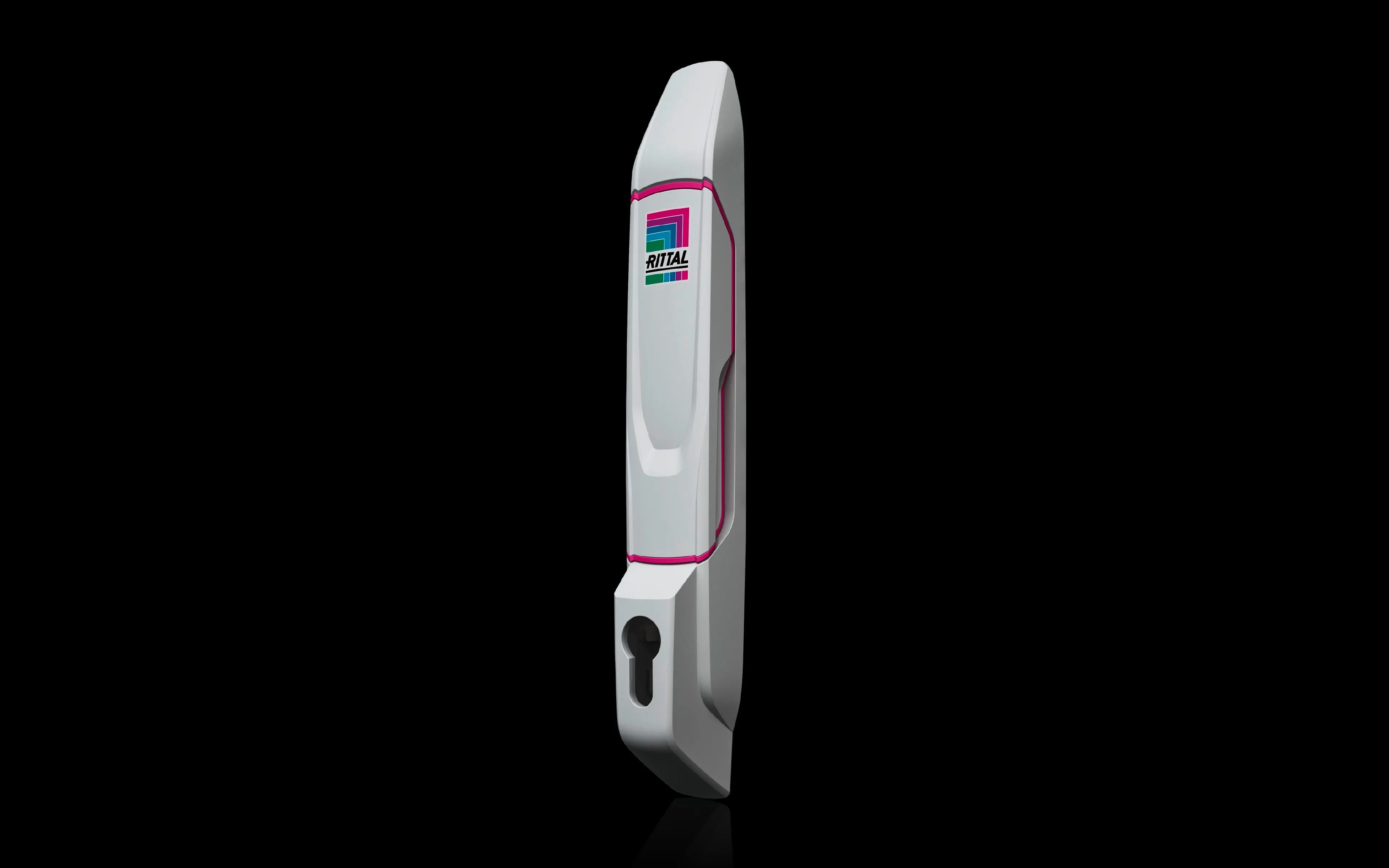

Rittal VX 8618.250 VX Comfort handle - UL 50E Type 1
Part Number: 8618250
Manufacturer
Rittal
Part number
8618250
Alt Part Number
VX 8618.250
Quick Summary
Rittal VX 8618.250 VX Comfort handle delivers folding, space-saving operation for semi-cylinder VX enclosures in control cabinets. Installers often face swing-space conflicts that reduce door usability and complicate wiring layouts. UL 50E Type 1 readiness and DIN 18 252 compatibility provide robust safety and easy integration, while the RAL 7035 finish maintains visual consistency with standard cabinets. In business terms, you gain usable door area for mounted equipment, faster assembly, and consistent color and fit across VX installations. The compact die-cast zinc construction reduces wear and ensures long life in harsh environments; the snap-mounted design simplifies field upgrades. Manufacturers can leverage the 0.716 kg per pack weight for streamlined logistics and safer handling.
Product Information
Extended Description
8618250 Rittal: VX Comfort handle, for semi-cylinder, RAL 7035
Article number
VX 8618.250
Design
for profile half-cylinder
Benefits
As the handle does not take up any swing space, due to its folding action, the door surface area may be maximised for installed equipment
Material
Die-cast zinc
Colour
RAL 7035
Note on Model No.
Prepared for the installation of semi-cylinders with a total length of 40 or 45 mm (to DIN 18 252)
Lock
Lock version: Prepared for the installation of profile semi-cylinders with an overall length of 40 or 45 mm (to DIN 18 252) or lock and push-button inserts with a length of 40 mm.
To fit enclosure type
VX
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
0.716 kg
Customs tariff number
83024110
EAN
4028177921788
ETIM 7.0
EC000327
ECLASS 8.0
27409217
Product description
VX Comfort handle, for semi-cylinder, RAL 7035
Feature folding action handle design reduces swing space, increasing the door surface area available for mounted equipment, which translates to faster installation and more usable cabinet real estate in dense control rooms. Business impact: higher equipment density without compromising access or ventilation, enabling tighter layouts and reduced cabinet footprint. Application: ideal for semi-cylinder VX enclosures in automation lines where space is at a premium. Feature die-cast zinc construction delivers high strength and wear resistance, reducing maintenance cycles in harsh industrial environments. Business impact: longer service life and lower replacement costs over the asset lifecycle. Application: suitable for electrical infrastructure cabinets exposed to vibration and frequent door operation. Feature snap-mounted assembly simplifies field installation with minimal downtime, improving project timelines. Application: quick upgrades or retrofits during line expansions. Feature prepared for 40 or 45 mm semi-cylinder lengths (DIN 18 252) and lock options with profile inserts, enabling flexible security configurations. Business impact: adaptable locking options without custom parts, reducing spare part variety. Application: VX enclosure families requiring configurable access control. Feature RAL 7035 color ensures visual consistency across cabinet fleets, aiding standardization. Business impact: streamlined procurement and maintenance planning. Application: multi-site installations with color-compliant branding. Feature UL 50E Type 1 readiness confirms electrical safety compliance for cabinet doors; weight of 0.716 kg per pack supports safe handling during installation and logistics. Application: safe, compliant handling in production environments.
Get a Quick Quote for a Rittal 8618250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618250?
Enquire Now
FAQs
Yes. The VX 8618.250 is designed specifically for profile half-cylinder doors on VX enclosures. It supports prepared installations for semi-cylinder lengths of 40 or 45 mm per DIN 18 252 and uses a snap-mounted assembly for quick field upgrades. Each pack includes one handle and weighs about 0.716 kg, aiding on-site handling and inventory control.
The handle is fashioned from die-cast zinc, delivering high strength and wear resistance in demanding environments. Its folding action reduces swing space to minimize stress on mounted equipment and door hardware. The RAL 7035 finish provides a professional appearance and contributes to corrosion resistance in electrical and automation settings.
Best suited for control cabinets, electrical infrastructure, and automation lines where door clearance is critical. The VX 8618.250 supports straightforward integration with VX enclosures and profiles, enabling faster assembly, simplified upgrades, and standardized color matching across installations.
This VX Comfort handle is listed for UL 50E Type 1 and prepared for DIN 18 252 semi-cylinder configurations, ensuring safe operation in electrical cabinets. The product carries an EAN of 4028177921788 and aligns with ETIM EC000327 and ECLASS 27409217 classifications for procurement and data management.
By simplifying installation with snap mounting and reducing swing-space, maintenance downtime is minimized and commissioning time is shortened. The durable die-cast zinc construction and 0.716 kg pack weight streamline logistics, lowering lifecycle costs and enabling faster cabinet upgrades across plant networks. In addition, standardized color and fit improve replaceability and spare-part planning during audits or reconfigurations.
