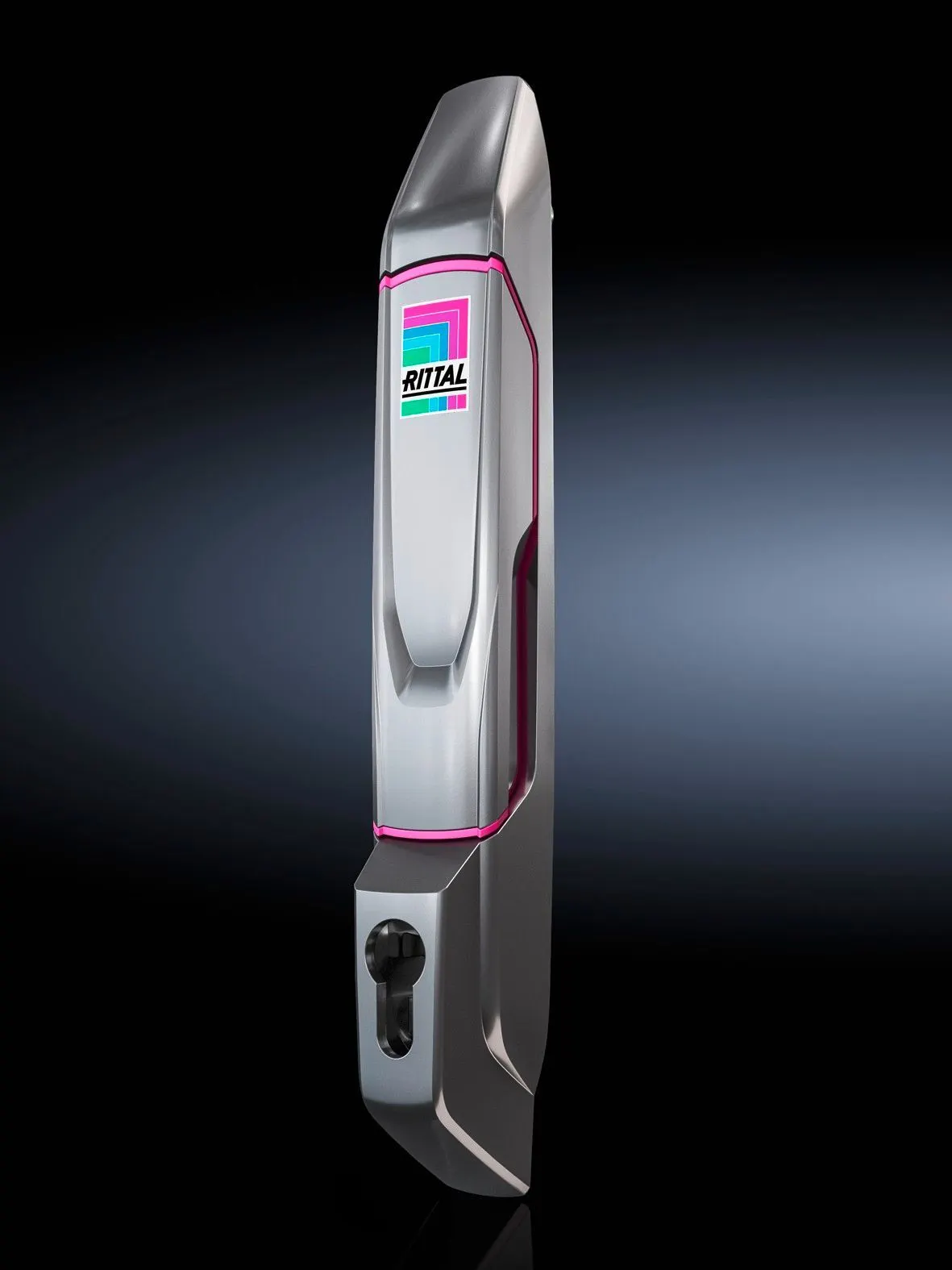

Rittal VX 8618.280 VX Comfort handle - UL 50E Type 1
Part Number: 8618280
Manufacturer
Rittal
Part number
8618280
Alt Part Number
VX 8618.280
Quick Summary
VX Comfort handle is a folding stainless steel handle for VX enclosures, keeping door space free for equipment. This design addresses the common pain point of bulky, swing-space hogging hardware that constrains layout and makes installation slower. It carries a UL 50E Type 1 rating, underscoring electrical enclosure safety, and is manufactured from precision-cast stainless steel for durability in demanding environments. The combination of a snap-mounted assembly, profile half-cylinder compatibility, and a robust construction translates into reduced installation time, lower maintenance, and long-term reliability for panel builders and integrators. In short, it delivers space efficiency, configurable locking, and a professional finish for industrial enclosures.
Product Information
Extended Description
8618280 Rittal: VX Comfort handle, for semi-cylinder, stainless steel, precision casting
Article number
VX 8618.280
Design
for profile half-cylinder
Benefits
As the handle does not take up any swing space, due to its folding action, the door surface area may be maximised for installed equipment
Material
Precision-cast stainless steel
Lock
Lock version: Prepared for the installation of profile semi-cylinders with an overall length of 40 or 45 mm (to DIN 18 252) or lock and push-button inserts with a length of 40 mm.
To fit enclosure type
VX
Type rating to UL 50E
Type 1
Packs of
1 pc(s).
Weight/pack
0.966 kg
Customs tariff number
83024110
EAN
4028177921801
ETIM 9
EC000327
ECLASS 8.0
27409217
Product description
VX Comfort handle, for semi-cylinder, stainless steel, precision casting
Feature folding action saves swing space → Business Impact frees door area for mounted equipment, enabling denser cabinet layouts and easier cable management; Application suitable for VX enclosure doors where interior real estate is critical. Feature precision-cast stainless steel → Business Impact delivers corrosion resistance and long service life in harsh environments; Application ideal for semi-enclosed or dusty factory settings. Feature lock options prepared for profile semi-cylinders with 40 or 45 mm length (DIN 18252) or 40 mm lock/push-button inserts → Business Impact provides flexible security configurations without additional machining; Application supports tailored access control for VX cabinets. Feature compatibility with VX enclosure type and profile half-cylinder design → Business Impact ensures straightforward substitutions or upgrades without redesigns; Application simplifies retrofits in existing VX systems. Feature snap-mounted handle system → Business Impact reduces assembly time and tool requirements; Application improves installation efficiency on production lines and service upgrades. Weight/Pack 0.966 kg, Packs of 1 pc(s) → Business Impact simplifies inventory planning and handling; Application supports lean procurement for spare parts and field service.
Get a Quick Quote for a Rittal 8618280
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618280?
Enquire Now
FAQs
Yes. The VX Comfort handle is designed for VX enclosures and is optimized for profile half-cylinder doors. It supports 40 or 45 mm profile semi-cylinder locks or 40 mm lock and push-button inserts, making it easy to tailor locking to your cabinet design.
The folding action eliminates swing-space consumption, allowing more door area for installed equipment. Combined with a snap-mounted system, it reduces assembly time and simplifies field upgrades without special tools.
The VX Comfort handle carries a UL 50E Type 1 rating, indicating suitability for electrical enclosure applications. This helps ensure compliance with common safety requirements in industrial control panels.
The handle ships in packs of one, with a weight per pack of 0.966 kg. This makes it straightforward to plan inventory and reorders for maintenance or project needs.
Yes. The lock version is prepared for profile semi-cylinders with 40 or 45 mm length (DIN 18252) or for inserts with 40 mm length, delivering flexible security options for VX enclosures and field installations.
