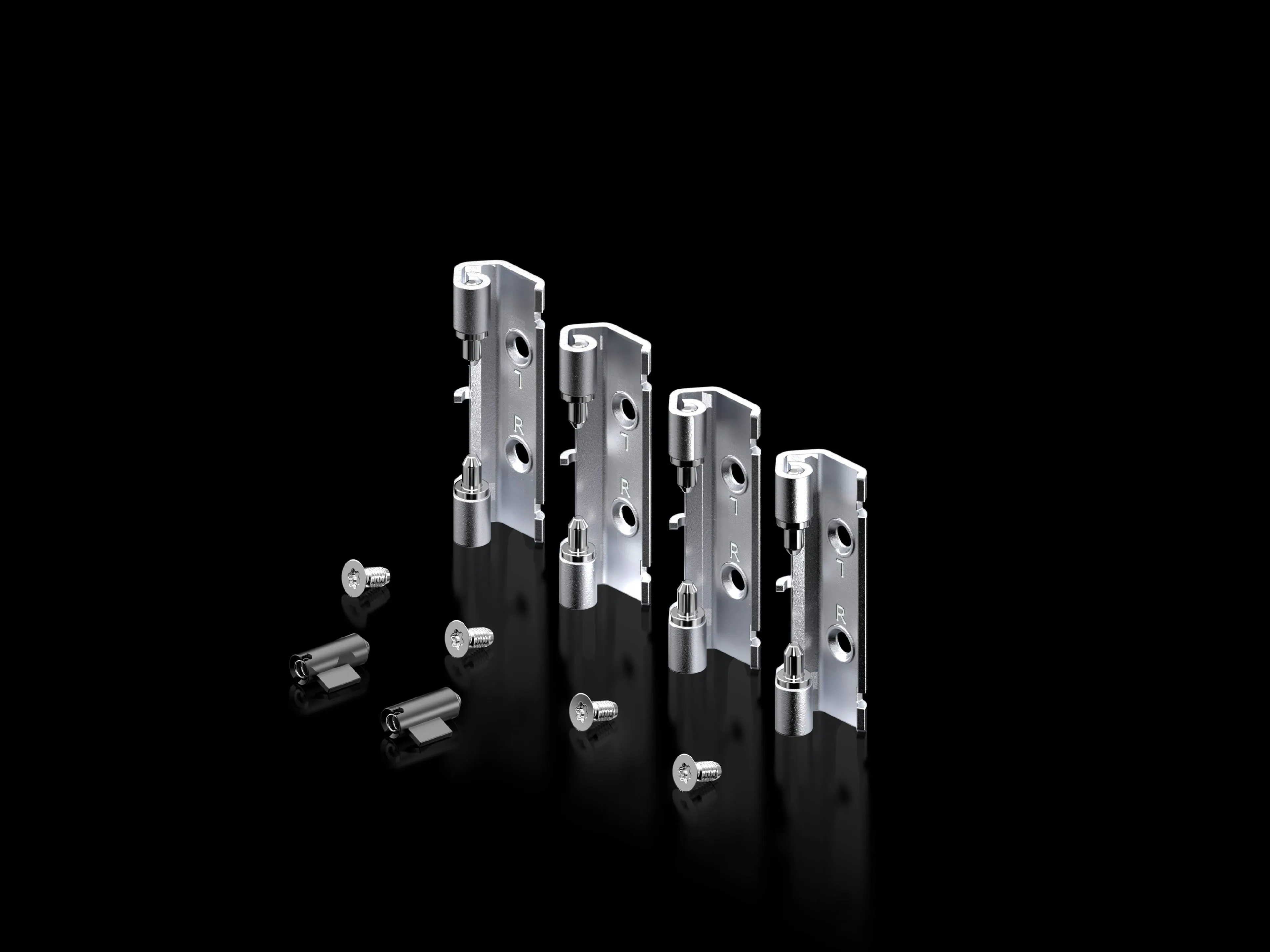

Rittal VX 8618.320 Hinge - 130° EC001167, Sheet Steel
Part Number: 8618320
Manufacturer
Rittal
Part number
8618320
Category
Alt Part Number
VX 8618.320
Quick Summary
Rittal VX 8618.320 Hinge is a precise enclosure door hinge for sheet metal enclosures. This part addresses common pain points in cabinet construction, such as misalignment, inconsistent opening angles, and time-consuming alignment during installation. The design leverages industry classifications ETIM 7.0 EC001167 and ECLASS 8.0 27409219 to simplify BOM integration and supplier qualification. With a 130° opening angle, robust compatibility with sheet-steel panels, and a 4‑piece packs you gain predictable performance and scalable procurement. By standardizing on the VX 8618.320, maintenance cycles shorten, spare-part inventories shrink, and installation workflows accelerate, delivering measurable efficiency and reduced total cost of ownership. This is a practical choice for electrical cabinets, data-center enclosures, and industrial housings.
Product Information
Extended Description
8618320 Rittal: VX Hinge, opening angle 130°, screws Model No. 5050.616
Article number
VX 8618.320
Material
for sheet steel
Packs of
4 pc(s).
Customs tariff number
83021000
EAN
4028177921399
ETIM 7.0
EC001167
ECLASS 8.0
27409219
Product description
VX Hinge, opening angle 130°, screws Model No. 5050.616
Feature: 130° opening angle. Business Impact: Enables full access for efficient door operations and easier cable management during maintenance. Application: Ideal for serviceable enclosures in tight installation spaces. Feature: Material for sheet steel. Business Impact: Ensures compatibility with common enclosure constructions and utilitarian durability in harsh environments. Application: Suitable for standard Rittal cabinets and panel assemblies. Feature: Screws Model No. 5050.616 included. Business Impact: Reduces parts hunting and procurement time, lowering project overhead. Application: Quick, tool-ready mounting during on-site assembly. Feature: Packs of 4 pieces. Business Impact: Simplifies inventory planning and reduces unit cost per hinge in bulk projects. Application: Aerospace, data centers, and factory automation upgrade programs. Feature: ETIM 7.0 EC001167 and ECLASS 8.0 27409219 alignment. Business Impact: Streamlines procurement, improves BOM accuracy, and supports system integrator workflows. Application: Cross-vendor compatibility and compliant sourcing. Feature: Customs tariff number 83021000. Business Impact: Facilitates smooth international logistics and tariff classification. Application: Global supply chains and compliance documentation.
Get a Quick Quote for a Rittal 8618320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 8618320?
Enquire Now
FAQs
The VX 8618.320 hinge is designed for Rittal sheet steel enclosures and pairs with the specified screws Model No. 5050.616. It aligns with the VX 8618.320 article specification and supports standard enclosure door assemblies, ensuring reliable, repeatable installation across similar cabinet lines.
Mount the hinge to the door frame using the included screws 5050.616, align for a 130° opening, and secure the opposite hinge to the frame. Ensure both hinges are level to maintain consistent door movement and avoid contact with interior components during operation.
The hinge provides a 130° opening angle and is manufactured for sheet steel, matching common Rittal enclosure designs. The product description also notes screws Model No. 5050.616 for complete installation.
Yes. The hinge carries ETIM 7.0 EC001167 and ECLASS 8.0 27409219 classifications, which support BOM integration and supplier qualification, making procurement straightforward for engineering teams and procurement specialists.
Benefits include standardized hardware for faster installation, reduced spare-parts inventory due to a 4‑pack offering, improved door reliability with a defined 130° opening, and smoother cross‑vendor procurement thanks to established ETIM/ECLASS classifications.
